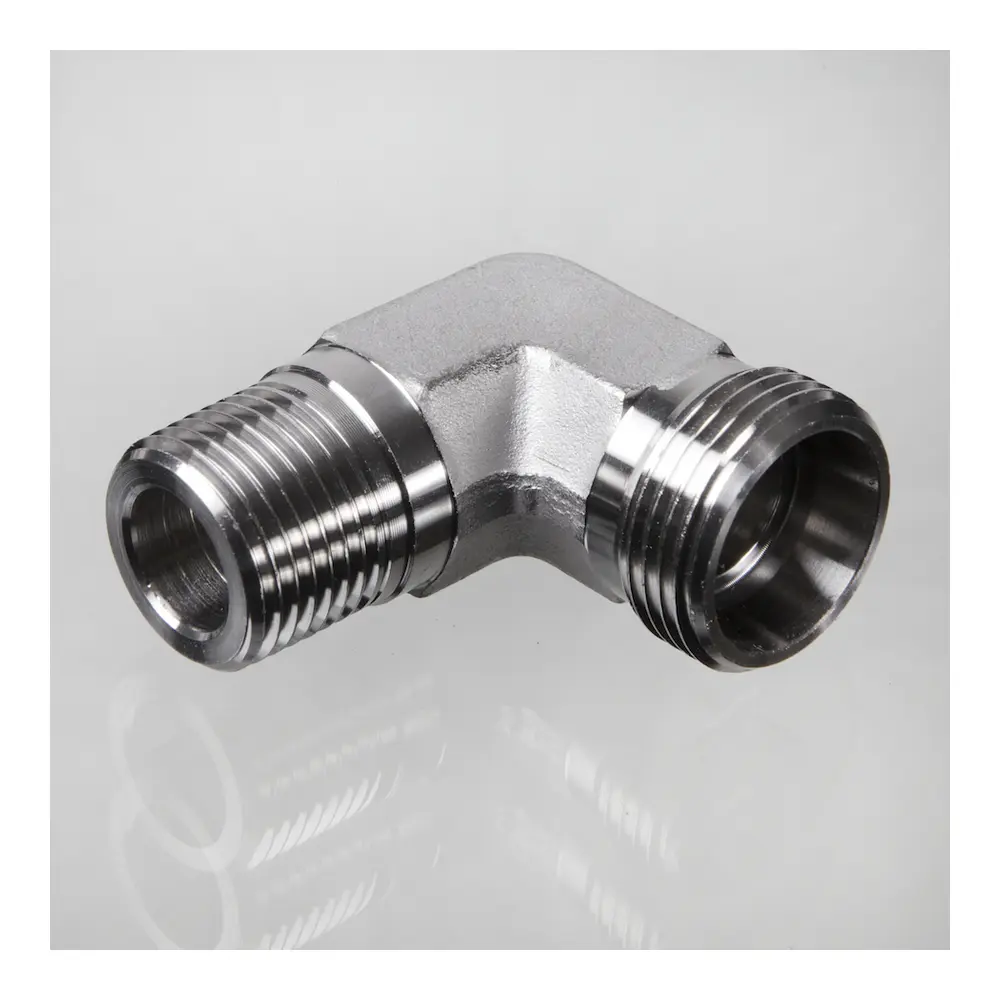

Tube Coupling - WE 06-LR 1/4
5.0000 € + VAT
Qty:pcs
Add to Cart

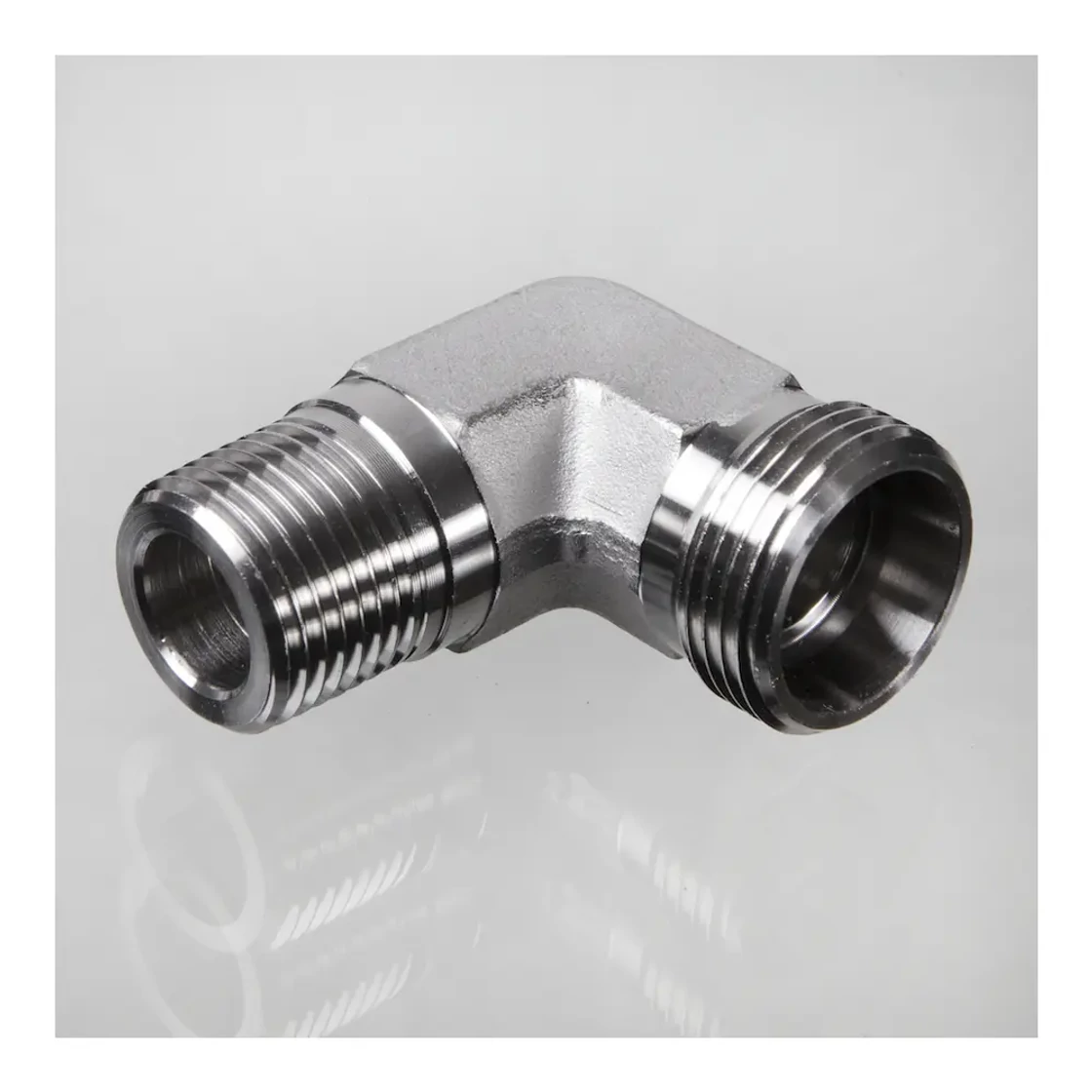

Tube Coupling - WE 06-LR 1/4"

5.0000 € + VAT
Qty:pcs
Add to Cart
Material Steel
Connection 1 BSPT male thread
Connection 2 Metric male thread
Connection G1 (mm) R 1/4" K
Connection G2 (mm) M12x1,5
Connector sub-type Metrikus/BSP menet - könnyű kivitel (WE-L/R)
Connector type Könyök becsavarható - WE

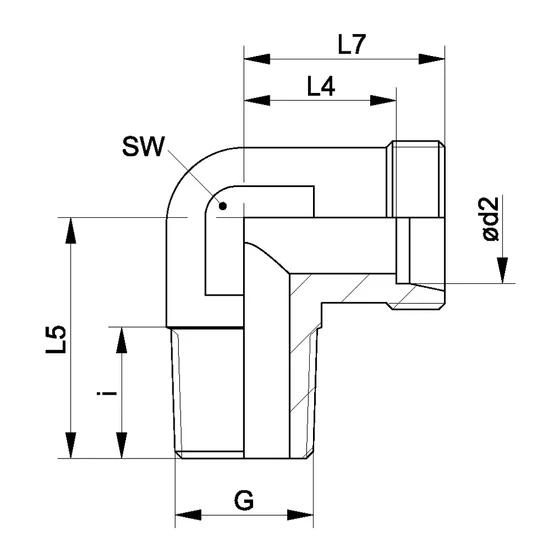

Ø d2 (mm) 6
Surface Galvanic coating
i (mm) 12
Design L
L4 (mm) 14
L5 (mm) 26
L7 (mm) 21
SW (mm) 12
Standard DIN 2353/ISO 8434-1, DIN 3852-1
Structural form Screw-in Elbow Fitting - WE
Extent Swivel nut, without cutting ring
Sealing 1 Thread-sealing
Sealing 2 24° internal cone
Operating pressure (bar) 315
Main category Fittings
SubCategory Elbow male stud coupling - WE
Manufacturer Nincs
Manufacturer article number: WRNW04HL1/4
Model: HQCWE06LR040
Availability: 3 pcs in stock
Manufacturer: Nem besorolt
