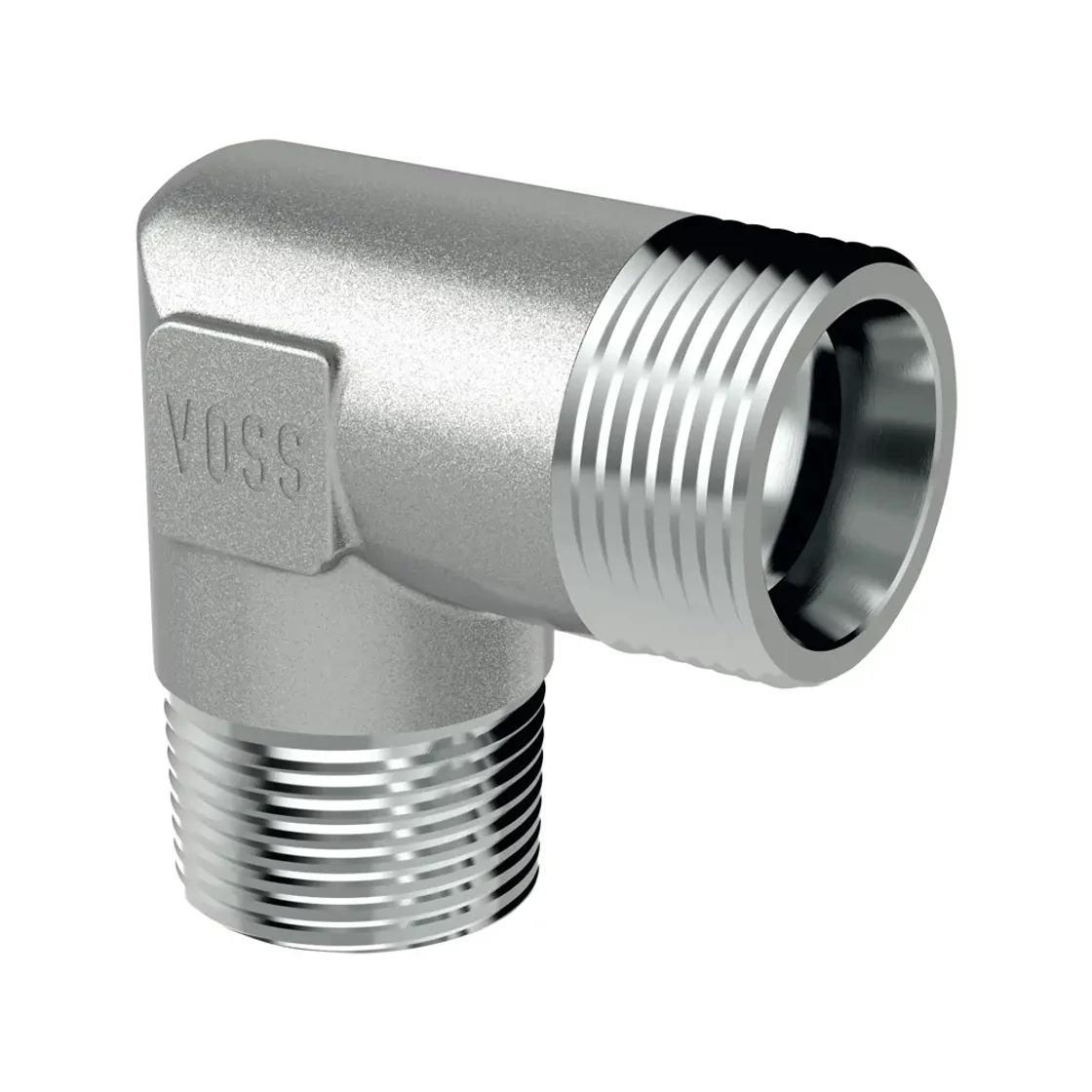

Tube Coupling - WE 10-SM
1.0069 € + VAT
Qty:pcs
Add to Cart

Tube Coupling - WE 10-SM

1.0069 € + VAT
Qty:pcs
Add to Cart
Material Steel
Connection 1 Metric male thread
Connection 2 Metric tapered male thread
Connection G1 (mm) M18x1,5
Connection G2 (mm) M 16 x 1.5 keg
Connector sub-type Metrikus/metrikus kúpos menet (WE-S/M)
Connector type Könyök becsavarható - WE

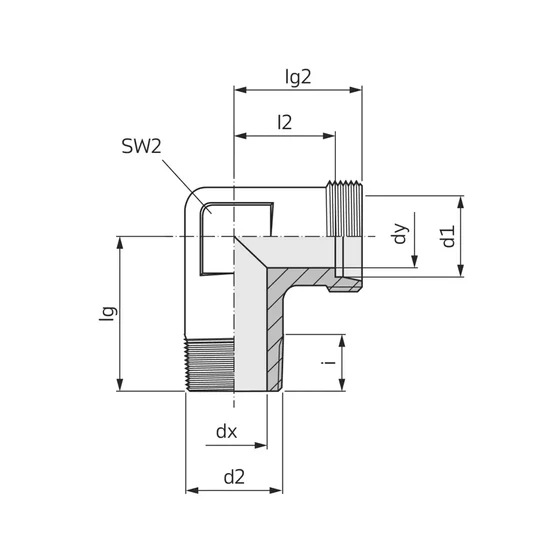

Ø d1 (mm) 10
dx (mm) 7
dy (mm) 7
Surface Galvanic coating
l2 (mm) 17.5
i (mm) 9
Design S
lg2 (mm) 25
lg (mm) 28
SW2 (mm) 19
Standard DIN 2353/ISO 8434-1
Structural form Screw-in Elbow Fitting - WE
Extent Swivel nut, without cutting ring
Sealing 1 24° external cone
Sealing 2 Thread-sealing
Operating pressure (bar) 630
Manufacturer article number: 114602007
Model: HQCWE10SM160
Availability: 4 pcs in stock
Manufacturer: Nem besorolt
