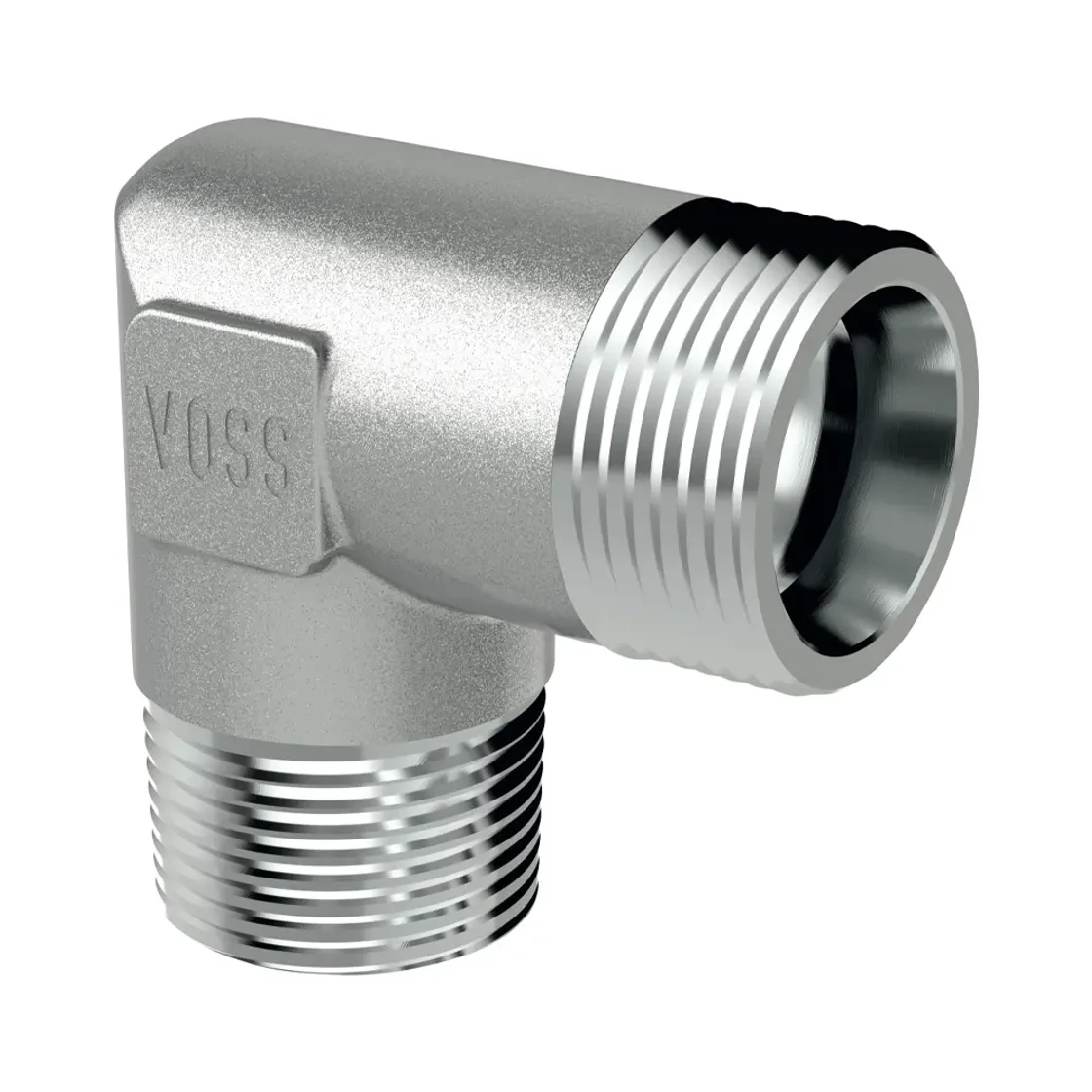

Tube Coupling - WE 12-SR
13.8448 € + VAT
Qty:pcs
Add to Cart

Tube Coupling - WE 12-SR

13.8448 € + VAT
Qty:pcs
Add to Cart
Material Steel
Connection 1 Metric male thread
Connection 2 BSPT male thread
Connection G1 (mm) M20x1,5
Connection G2 (mm) R 3/8
Connector sub-type Metrikus/BSP kúpos menet - nehéz kivitel (WE-S/R)
Connector type Könyök becsavarható - WE
Ø d1 (mm) 12
dx (mm) 8
dy (mm) 8
Surface Galvanic coating
l2 (mm) 21.5
i (mm) 9.3
Design S
lg2 (mm) 29
lg (mm) 28
SW2 (mm) 22
Standard DIN 2353/ISO 8434-1
Structural form Screw-in Elbow Fitting - WE
Sealing 1 24° external cone
Sealing 2 Thread-sealing
Operating pressure (bar) 630
Manufacturer article number: 116652007
Model: HQCWE12SR060
Availability: 3 pcs in stock
Manufacturer: Nem besorolt
