Tube Coupling - EW 25-S
35.7143 € + VAT
Qty:pcs
Add to Cart

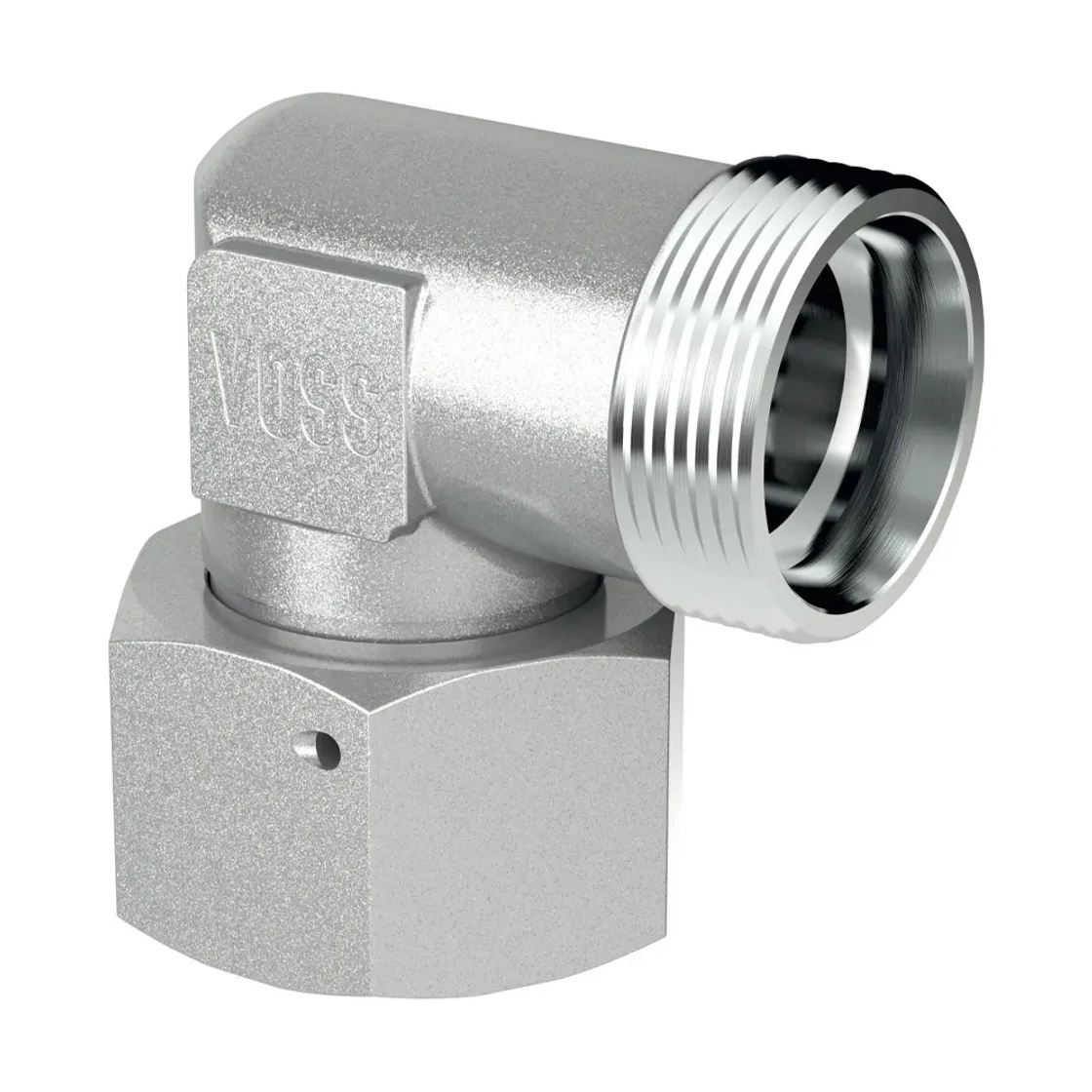

Tube Coupling - EW 25-S

35.7143 € + VAT
Qty:pcs
Add to Cart

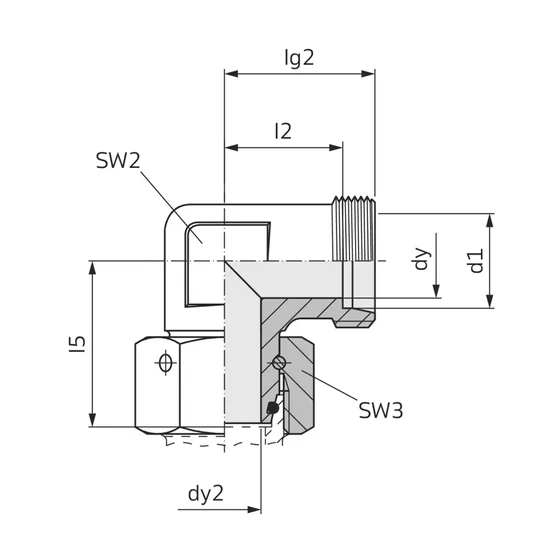

Material Steel
Connection 1 Metric male thread
Connection 2 Metric female swivel nut
Connection G1 - G2 (mm) M36x2
Connector sub-type Metrikus menet - nehéz kivitel (EW-S)
Connector type Könyök rátét - EW
Ø d1 (mm) 25
dy2 (mm) 18
dy (mm) 20
Surface Galvanic coating
l2 (mm) 30
Design S
l3 (mm) 73
l5 (mm) 50
lg2 (mm) 42
SW2 (mm) 36
SW3 (mm) 46
Standard DIN 2353/ISO 8434-1
Structural form Elbow Insert - EW
Extent Swivel nut, without cutting ring
Sealing 1 24° internal cone
Sealing 2 24° external cone
Operating pressure (bar) 420
Main category Fittings
SubCategory Swivel nut elbow - EW
Manufacturer Nincs
Manufacturer article number: 1158872057
Model: HQCEW25S00
Availability: 67 pcs in stock
Manufacturer: Nem besorolt
