Tube Coupling - (EW-UNF) - JIC 1/2
2.5172 € + VAT
Qty:pcs
Add to Cart

Tube Coupling - (EW-UNF) - JIC 1/2"-20

2.5172 € + VAT
Qty:pcs
Add to Cart
Material Steel

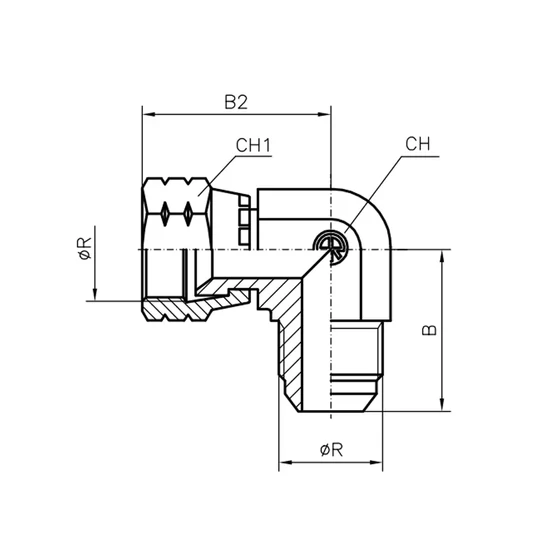

B2 (mm) 28
B (mm) 24.1
CH (mm) 132
CH1 (mm) 19
Connection 1 UNF female swivel nut
Connection 2 UNF male thread
Connection ØR (col) 1/2
Connector sub-type UNF menet - JIC kivitel (EW-JIC)
Connector type Könyök rátét - EW
Pipe size (mm) 8
Pipe size (inch) 5/16
Surface Galvanic coating
Structural form Elbow Insert - EW
Sealing 1 37° internal cone
Sealing 2 37° external cone
Operating pressure (bar) 350
Manufacturer article number: ST.09.00.05
Model: HQCJEW0500
Availability: 5 pcs in stock
Manufacturer: Nem besorolt
