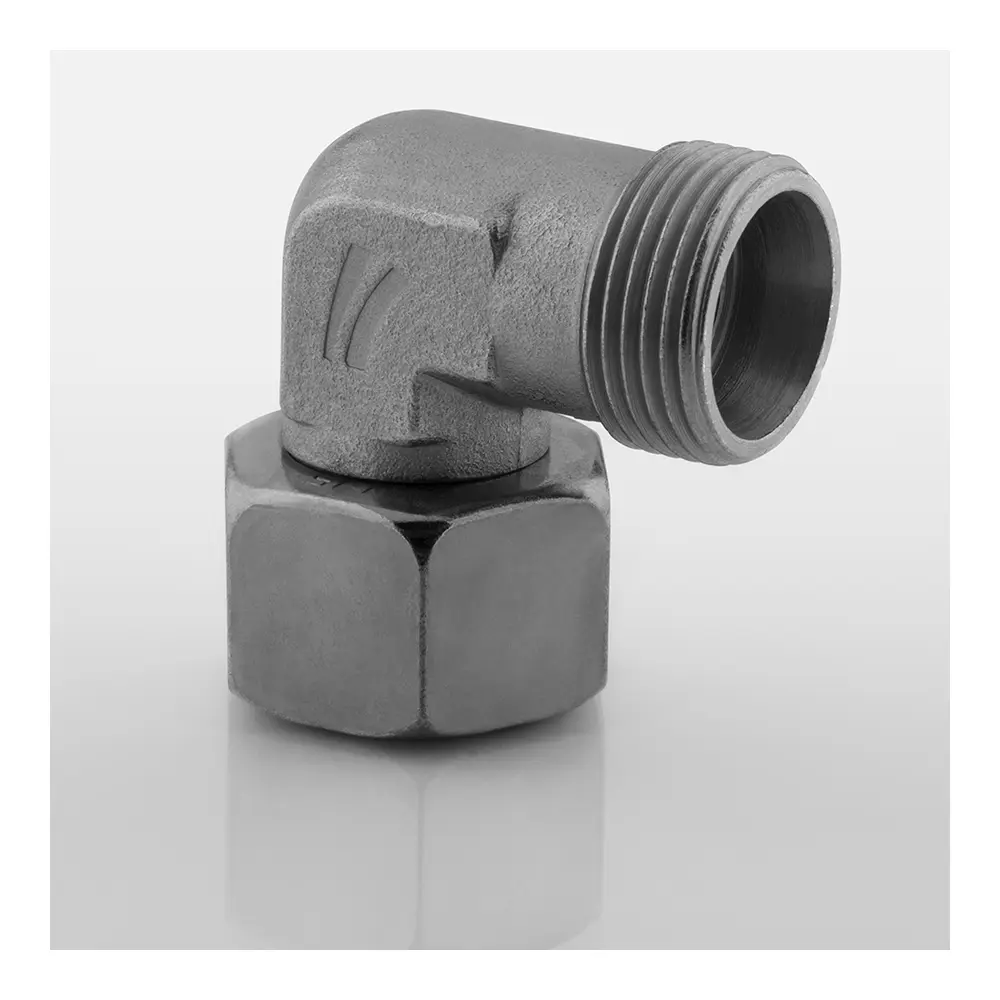

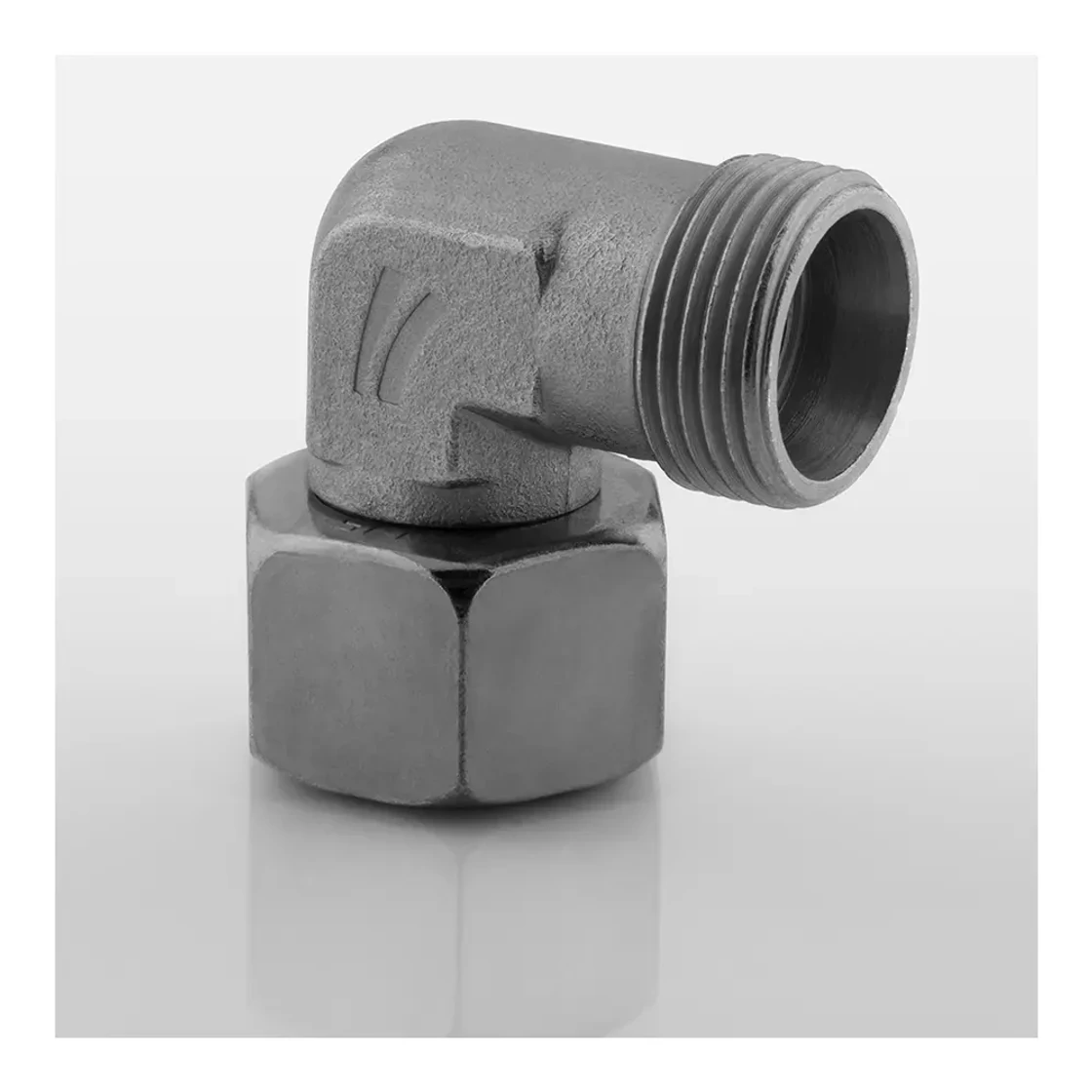

Tube Coupling - EW 06-L
4.2793 € + VAT
Qty:pcs
Add to Cart

Tube Coupling - EW 06-L

4.2793 € + VAT
Qty:pcs
Add to Cart

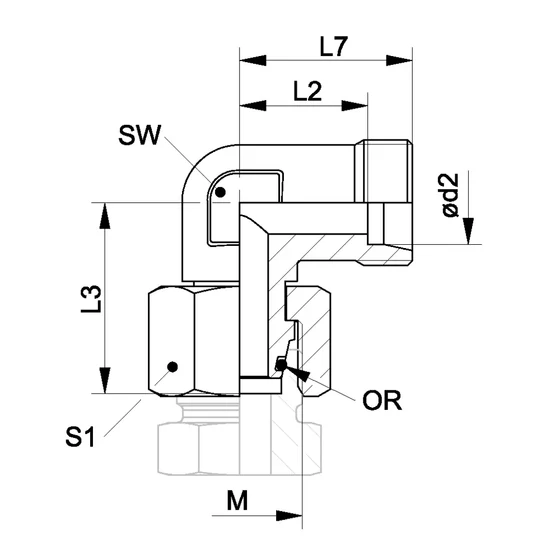

Material Steel
Connection 1 Metric female swivel nut
Connection 2 Metric male thread
Connection - M (mm) M 12 x 1.5
Connector sub-type Metrikus menet - könnyű kivitel (EW-L)
Connector type Könyök rátét - EW
Ø d2 (mm) 6
Surface Galvanic coating
Design L
L2 (mm) 12
L3 (mm) 26
L7 (mm) 19
S1 (mm) 14
SW (mm) 12
Standard ISO 8434-1
Structural form Elbow Insert - EW
Extent Swivel nut, without cutting ring
Sealing 1 24° external cone
Sealing 2 24° internal cone
Operating pressure (bar) 315
Manufacturer article number: VEWONW04HL
Model: HQCEW06L00
Availability: 56 pcs in stock
Manufacturer: Nem besorolt
