Tube Coupling - (W) - JIC 3/4
22.6552 € + VAT
Qty:pcs
Add to Cart

Tube Coupling - (W) - JIC 3/4"-16 - BSPT 1/2"

22.6552 € + VAT
Qty:pcs
Add to Cart

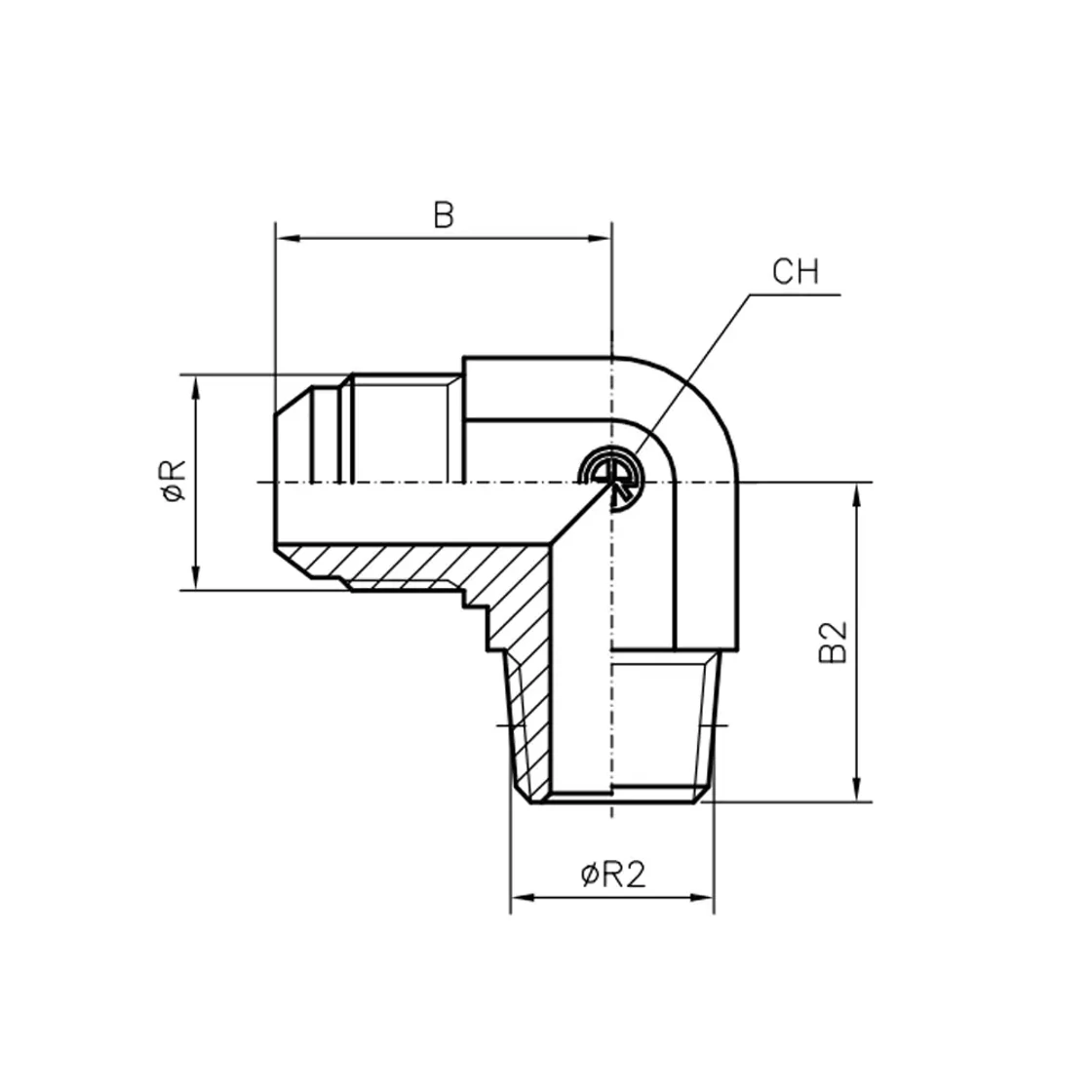

Material Steel
B2 (mm) 37.3
B (mm) 33.7
CH (mm) 22
Connection 1 UNF male thread
Connection 2 BSPT male thread
Connection ØR (col) 3/4
Connection ØR2 (inch) 1/2
Connector sub-type UNF/BSP kúpos menet - JIC kivitel (WEE-JIC/BSP)
Connector type Könyök becsavarható - WE
Pipe size (mm) 12
Pipe size (inch) 1/2
Surface Galvanic coating
Structural form Screw-in Elbow Fitting - WE
Sealing 1 37° external cone
Sealing 2 Thread-sealing
Operating pressure (bar) 350
Manufacturer article number: 8-8C3MXS
Model: HQCJWW08T128
Availability: 1 pcs in stock
Manufacturer: Nem besorolt
