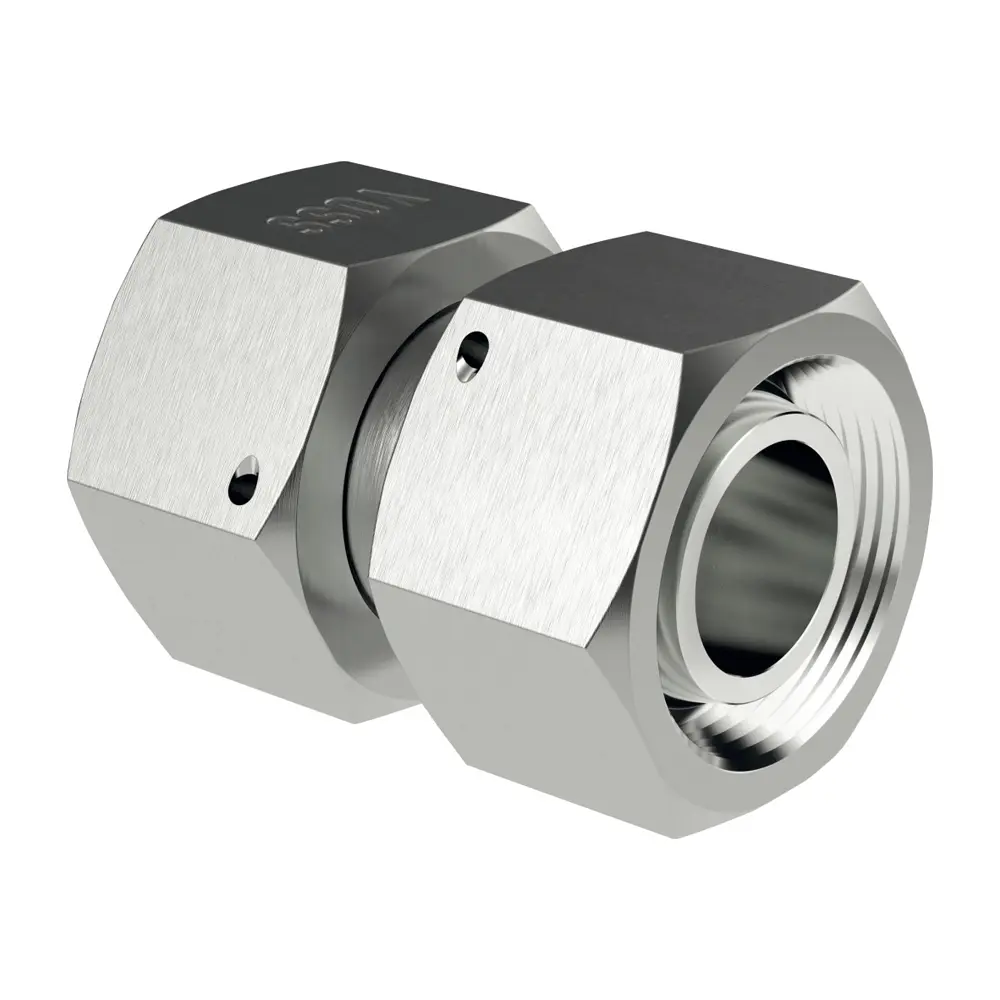

Tube Coupling - GZ 15-L
7.1697 € + VAT
Qty:pcs
Add to Cart

Tube Coupling - GZ 15-L

7.1697 € + VAT
Qty:pcs
Add to Cart
Material Steel
Connection 1 Metric swivel nut with internal thread
Connection 2 Metric swivel nut with internal thread
Connection G1 - G2 (mm) M22x1,5
Connector sub-type Metrikus menet - könnyű kivitel (GZ-L)
Connector type Egyenes összekötő - GZ
Ø d1 (mm) 15
dy (mm) 10
Surface Galvanic coating
Design L
l1 (mm) 42.5
SW3 (mm) 27
Standard DIN 2353/ISO 8434-1
Structural form Straight connector
Extent Double nut
Sealing 1 24° external cone
Sealing 2 24° external cone
Operating pressure (bar) 400
Main category Csatlakozók
SubCategory Csavarzatok
Manufacturer Nincs
Manufacturer article number: 1178042058
Model: HQCGZ15L00
Availability: 18 pcs in stock
Manufacturer: Nem besorolt
