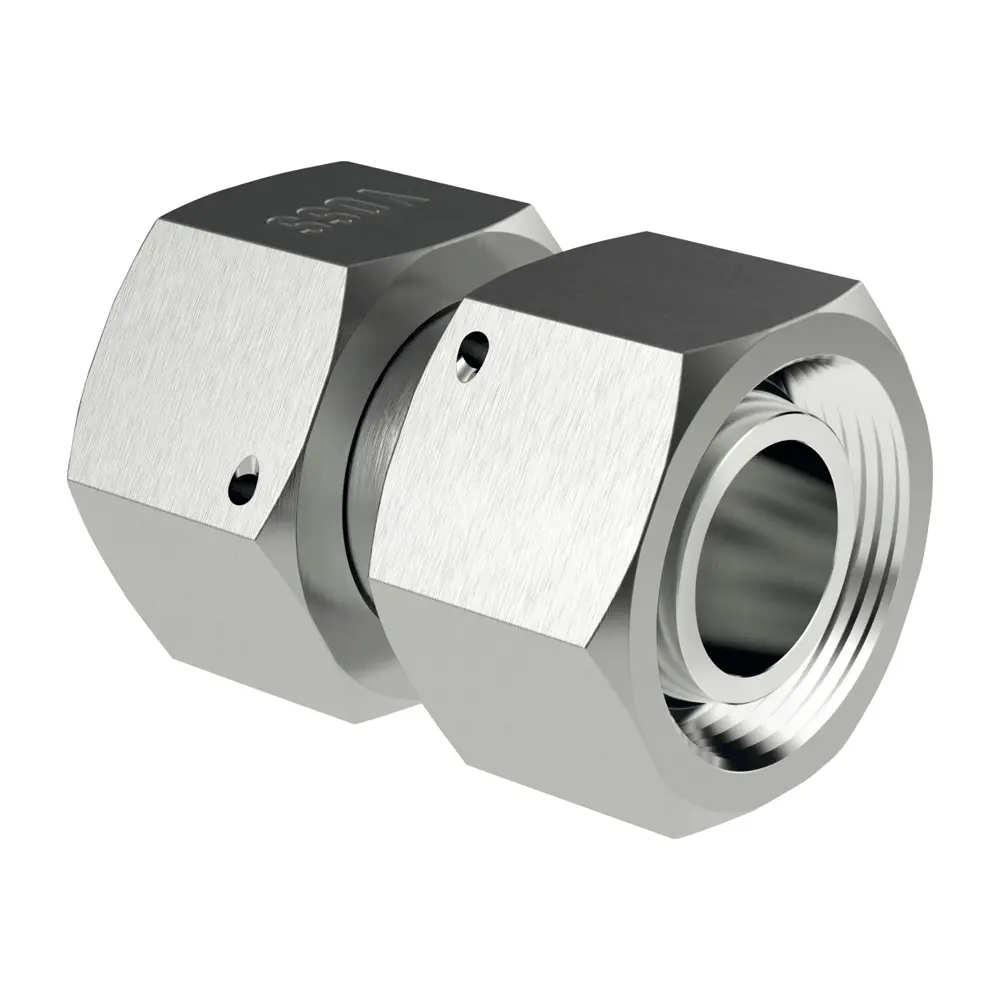

Tube Coupling - GZ 12-L
12.0000 € + VAT
Qty:pcs
Add to Cart

Tube Coupling - GZ 12-L

12.0000 € + VAT
Qty:pcs
Add to Cart
Material Steel
Connection 1 Metric swivel nut with internal thread
Connection 2 Metric swivel nut with internal thread
Connection G1 - G2 (mm) M18x1,5
Connector sub-type Metrikus menet - könnyű kivitel (GZ-L)
Connector type Egyenes összekötő - GZ
Ø d1 (mm) 12
dy (mm) 8
Surface Galvanic coating
Design L
l1 (mm) 39.5
SW3 (mm) 22
Standard DIN 2353/ISO 8434-1
Structural form Straight connector
Extent Double nut
Sealing 1 24° external cone
Sealing 2 24° external cone
Operating pressure (bar) 400
Main category Fittings
SubCategory Straight union - GZ
Manufacturer Nincs
Manufacturer article number: 1178032058
Model: HQCGZ12L00
Availability: 36 pcs in stock
Manufacturer: Nem besorolt
