Valve - 00049828

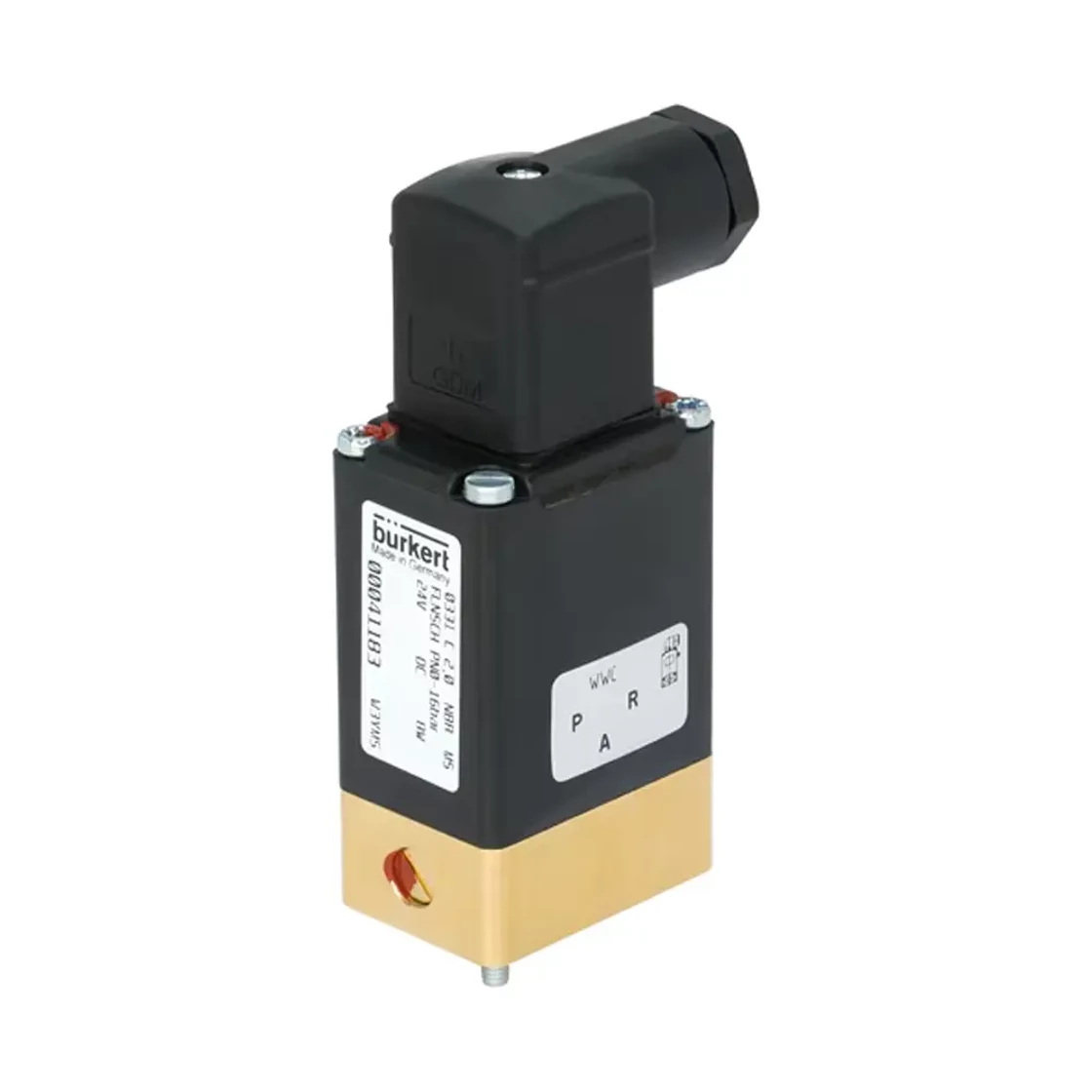

Bürkert 3/2-Way Solenoid Valve (Type 0331)

This Bürkert Type 0331 valve is a direct-acting 3/2-way solenoid valve designed for a wide range of applications, including vacuum. It features a compact design and is suitable for continuous operation.

Features

• Type: 0331
• Circuit function: 3/2-way; output A relieved in idle position
• Orifice size: 4.0 mm (5/32")
• Seal material: NBR
• Material: Brass
• Port connection: Flange pattern: Bürkert CL-NO.001-01-18 (32 x 46)
• Voltage: 24 volts DC
• Power consumption: 8 watt
• Special feature:
  • Cable plug type 2518 (00314802), without wiring (3 poles, 0-250 V AC/DC)
  • Vacuum-version

Technical Details

• Pressure (min): -1 bar
• Pressure (max): 3 bar
• Medium temperature (max): 80 °C
• Ambient temperature (max): 55 °C
• KV value: 0.15 m³/h
• QNN value: 160 l/min
• Duty cycle: 100%
• Opening time (min/max): 10 ms / 20 ms
• Closing time (min/max): 10 ms / 20 ms
