Valve - 8253100.8001.02400

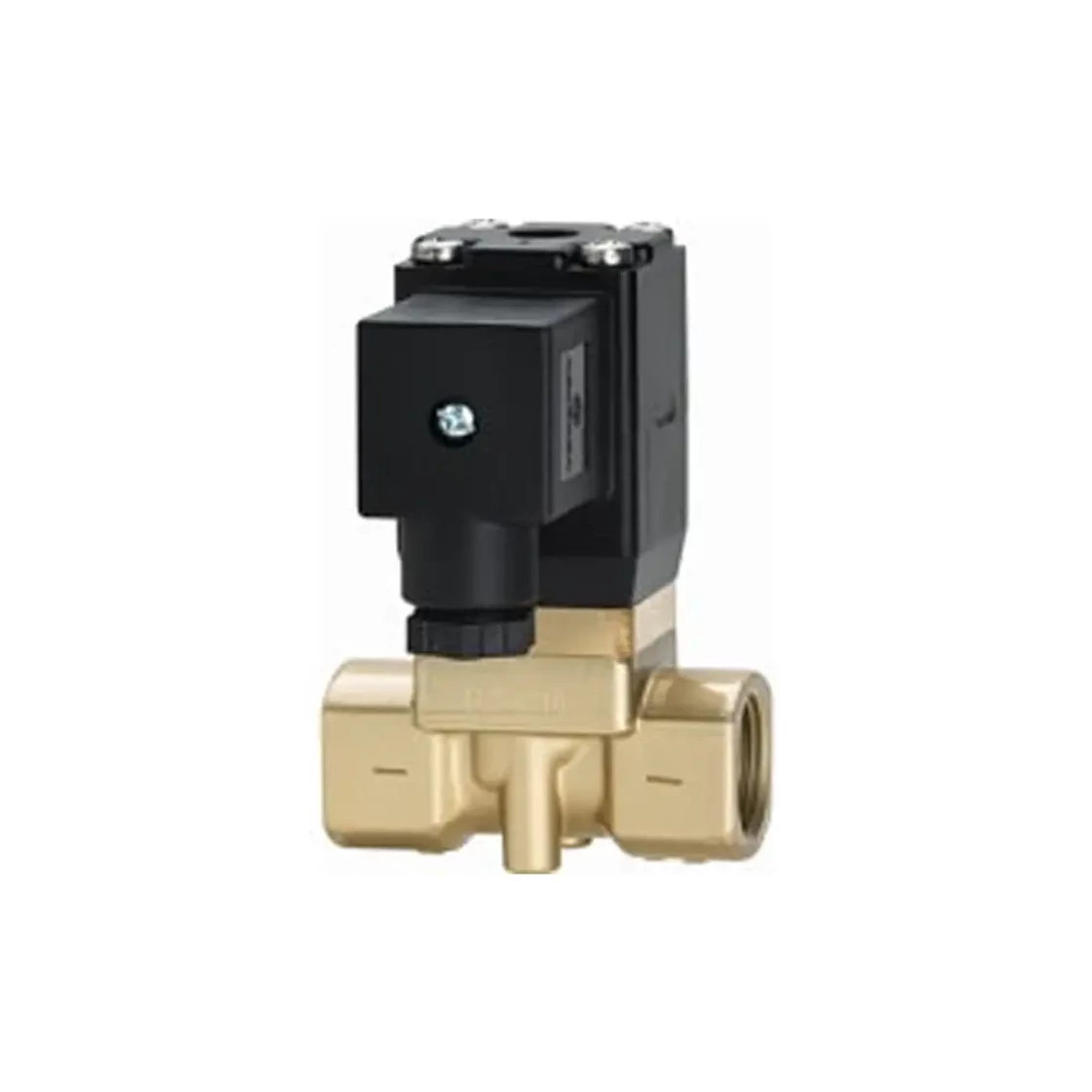

IMI Buschjost 2/2-Way Solenoid Valve (NC)

This IMI Buschjost 2/2-way solenoid valve is suitable for vacuum and features a compact solenoid with an integrated core tube. The valve operates without a pressure differential (Δp), making it highly versatile.

Features

• Suitable for vacuum
• Compact solenoid with integrated core tube
• Valve operates without pressure differential (Δp)
• Operating pressure 0 to 20 bar with A.C. coil and NBR seals

Technical Details

• Medium: Gases, Liquids
• Port Size: G3/8
• Valve operation: 2/2-way
• Coil Code: 8001
• Function: Normally Closed (NC)
• Operating Temperature: -10 ... 50 °C (14 ... 122 °F)
• Operating Pressure: 0 ... 10 bar (0 ... 145 psi)
• Materials - Body: Brass
• Materials - Elastomers: NBR
• Certification - IP Rating: IP65
• Dimensions:
  • Height: 70 mm
  • Length: 50 mm
  • Width: 90 mm
• Weight: 0.5 kg
• Country of Origin: Germany
• Range: 82530
• Brand: IMI Buschjost
