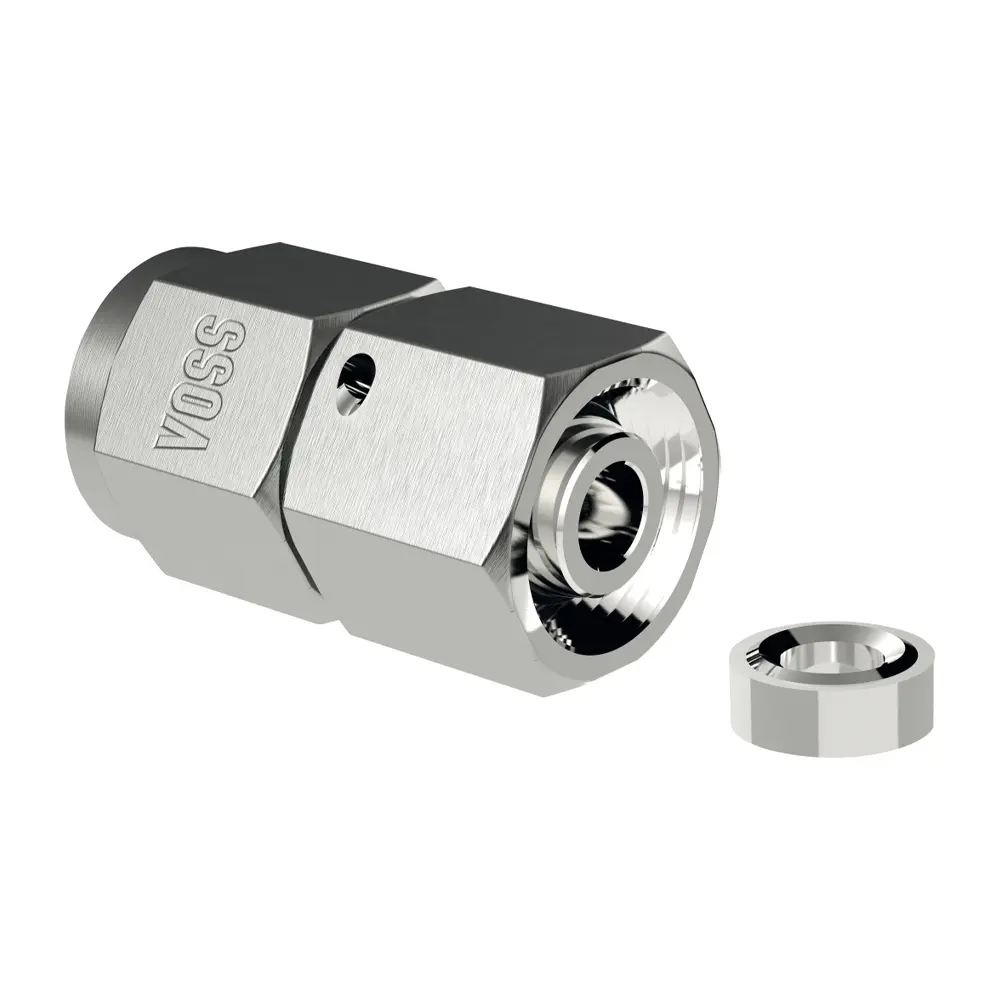

Tube Coupling - MAVE 06-LR 1/4
8.7735 € + VAT
Qty:pcs
Add to Cart

Tube Coupling - MAVE 06-LR 1/4"

8.7735 € + VAT
Qty:pcs
Add to Cart
Material Steel
Connection 1 Metric female swivel nut
Connection 2 BSPP female thread
Connection G1 (mm) M12x1,5
Connection G2 (mm) G 1/4
Connector sub-type Metrikus/BSP menet - könnyű kivitel (MAVE-L/R)
Connector type Manométer csatlakozás - MAVE

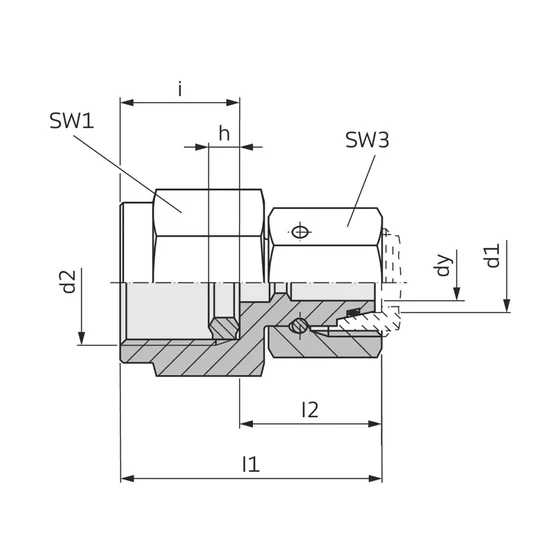

Ø d1 (mm) 6
dy (mm) 2.5
Surface Galvanic coating
H (mm) 4.6
l2 (mm) 23
i (mm) 14.5
Design L
l1 (mm) 37.5
SW1 (mm) 19
SW3 (mm) 14
Standard DIN 2353, ISO 84341
Structural form Pressure Gauge Connection - MAV, MAVE, SSV
Sealing 1 24° internal cone
Sealing 2 Cutting ring
Operating pressure (bar) 315
Manufacturer article number: MVONW04L
Model: HQCPME06LR040
Availability: 32 pcs in stock
Manufacturer: Nem besorolt
