Tube Coupling - MAVE 10-SR 1/2
11.2500 € + VAT
Qty:pcs
Add to Cart

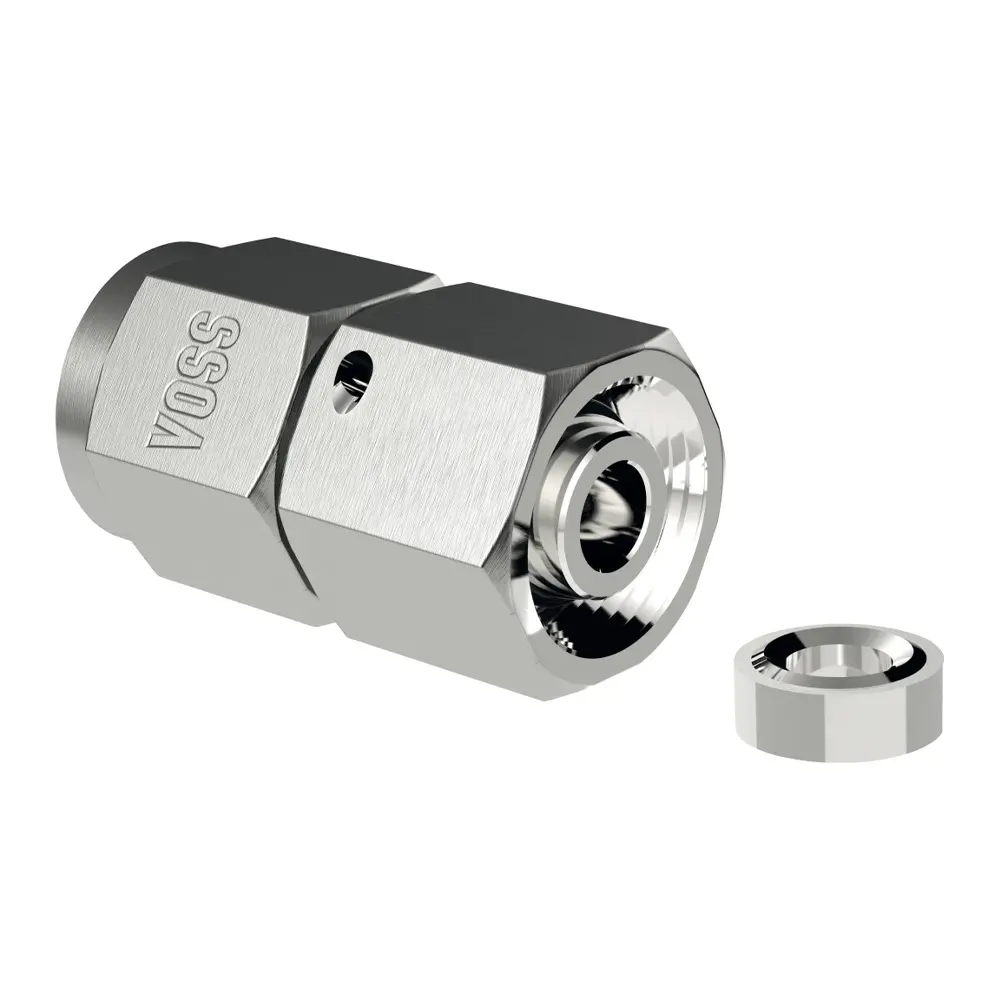

Tube Coupling - MAVE 10-SR 1/2"

11.2500 € + VAT
Qty:pcs
Add to Cart
Material Steel
Connection 1 Metric female swivel nut
Connection 2 BSPP female thread
Connection G1 (mm) M18x1,5
Connection G2 (mm) G 1/2
Connector sub-type Metrikus/BSP menet - nehéz kivitel (MAVE-S/R)
Connector type Manométer csatlakozás - MAVE
Ø d1 (mm) 10
dy (mm) 6
Surface Galvanic coating
H (mm) 5.2
l2 (mm) 23.5
i (mm) 20
Design S
l1 (mm) 43.5
SW1 (mm) 27
SW3 (mm) 22
Standard DIN 2353, ISO 84341
Structural form Pressure Gauge Connection - MAV, MAVE, SSV
Sealing 1 24° external cone
Sealing 2 Cutting ring
Operating pressure (bar) 630
Main category Fittings
SubCategory Gauge coupling - MAV, MAVE, SSV
Manufacturer Nincs
Manufacturer article number: 1142602058
Model: HQCPME10SR080
Availability: 7 pcs in stock
Manufacturer: Nem besorolt
