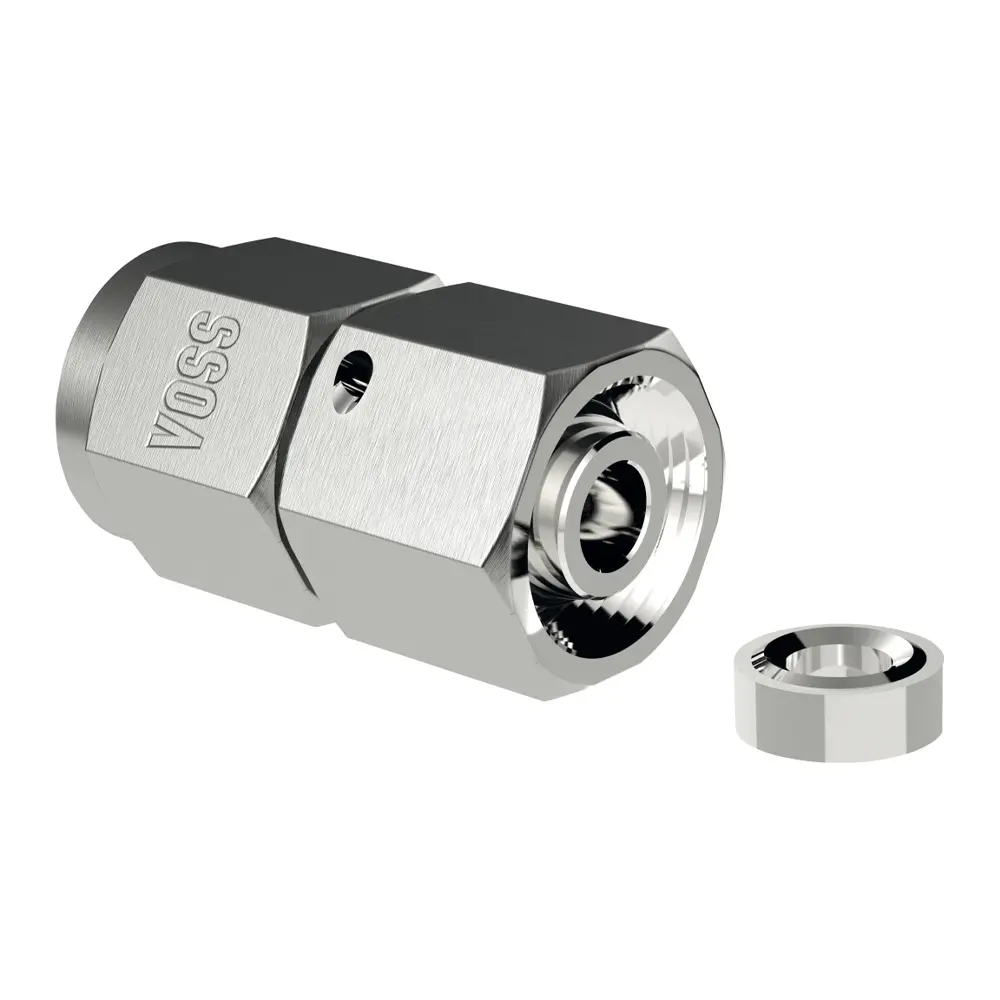

Tube Coupling - MAVE 06-SR 1/4
25.0671 € + VAT
Qty:pcs
Add to Cart

Tube Coupling - MAVE 06-SR 1/4"

25.0671 € + VAT
Qty:pcs
Add to Cart
Material Steel
Connection 1 Metric female swivel nut
Connection 2 BSPP female thread
Connection G1 (mm) M14x1,5
Connection G2 (mm) G 1/4
Connector sub-type Metrikus/BSP menet - nehéz kivitel (MAVE-S/R)
Connector type Manométer csatlakozás - MAVE

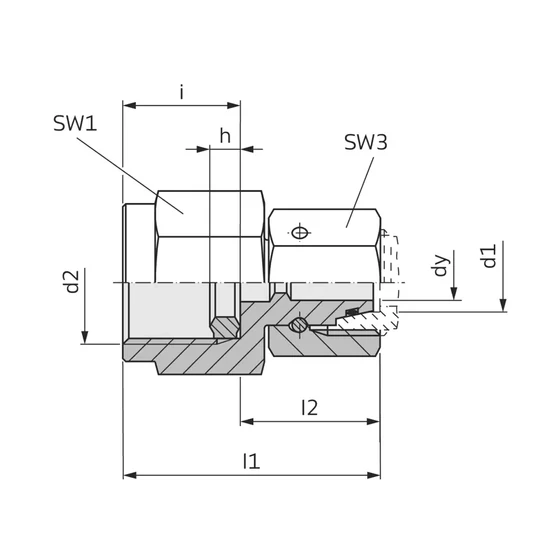

Ø d1 (mm) 6
dy (mm) 2.5
Surface Galvanic coating
H (mm) 4.6
l2 (mm) 21
i (mm) 14.5
Design S
l1 (mm) 35.5
SW1 (mm) 19
SW3 (mm) 17
Standard DIN 2353, ISO 84341
Structural form Pressure Gauge Connection - MAV, MAVE, SSV
Sealing 1 24° external cone
Sealing 2 Cutting ring
Operating pressure (bar) 630
Manufacturer article number: 1142522058
Model: HQCPME06SR040
Availability: 5 pcs in stock
Manufacturer: Nem besorolt
