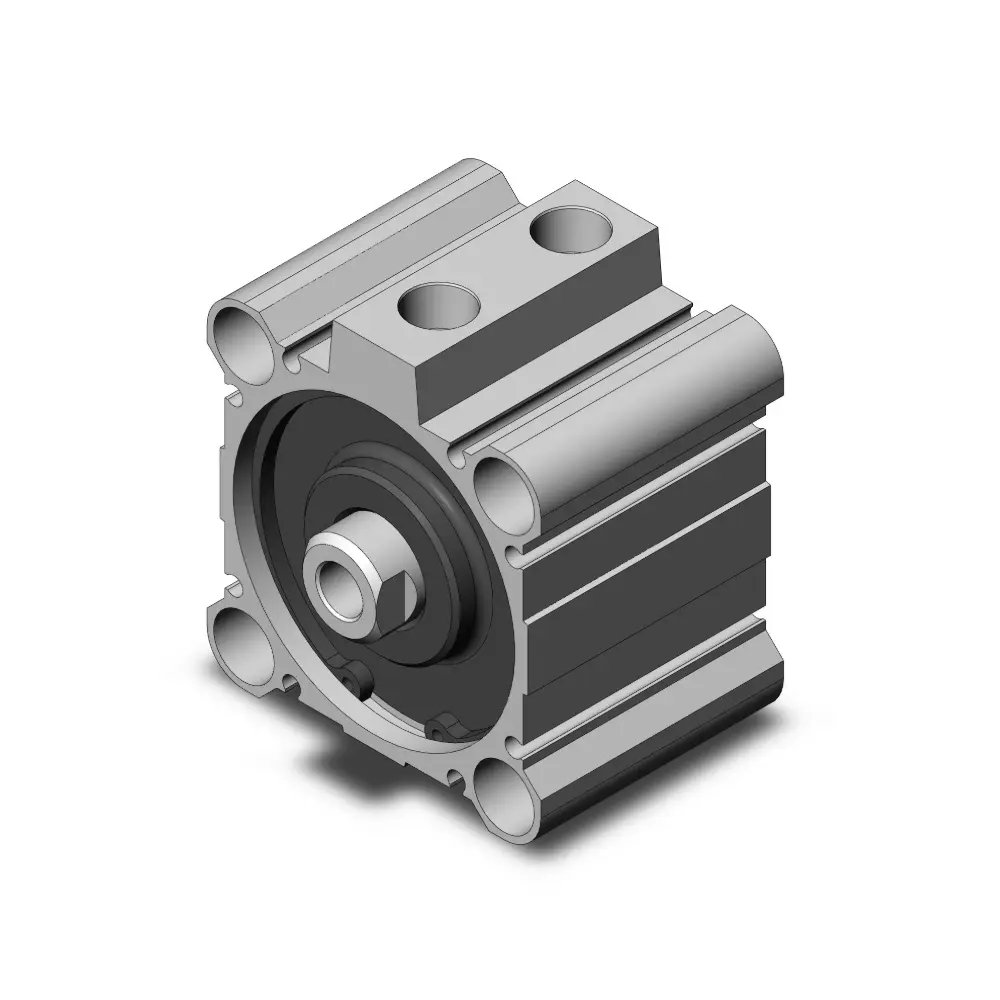

Cylinder - CDQ2B63TF-10DZ

SMC CQ2 Series Compact Cylinder

SMC has redesigned the CQ2 compact cylinder with a new body, making it possible to mount auto switches on any of the 4 surfaces, depending on the installation conditions. Auto switch mounting grooves have replaced the CQ2's mounting rails, preventing projection of auto switches and improving ease and safety of work.

Key Features

• Type: Double acting, single rod, compact cylinder
• Bore Sizes: 12, 16, 20, 25, 32, 40, 50, 63, 80, 100 mm
• Standard Stroke Range: 5 to 100 mm
• Port Threads: M (metric), Rc, NPT or G
• Auto Switch Capable: Can be used with auto switches
• New Body Design: Allows mounting of auto switches on any of the 4 surfaces
• Mounting Grooves: Prevent auto switch projection, enhancing safety and work efficiency

Benefits

The redesigned SMC CQ2 series, with its compact design and flexible auto switch mounting options, is ideal for tight spaces and applications where safe and efficient operation is crucial.
