Cylinder - SA/802040/M/50

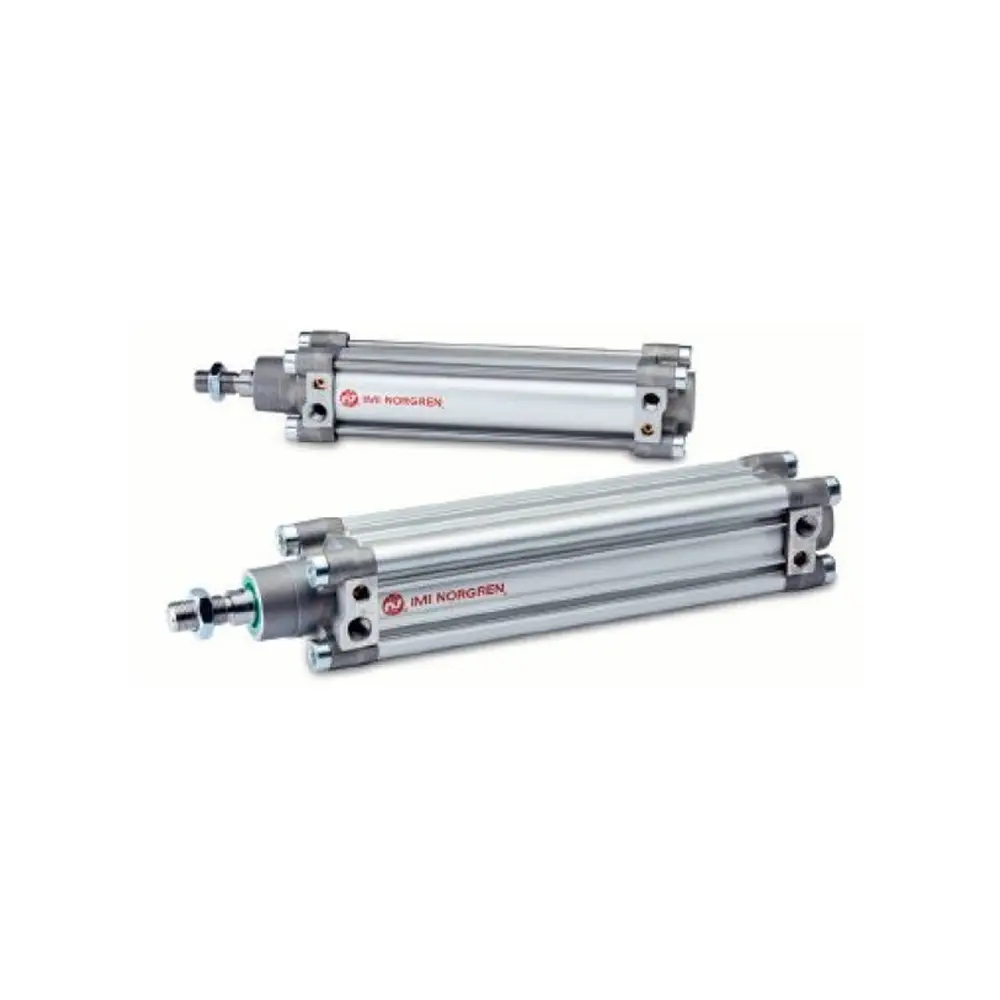

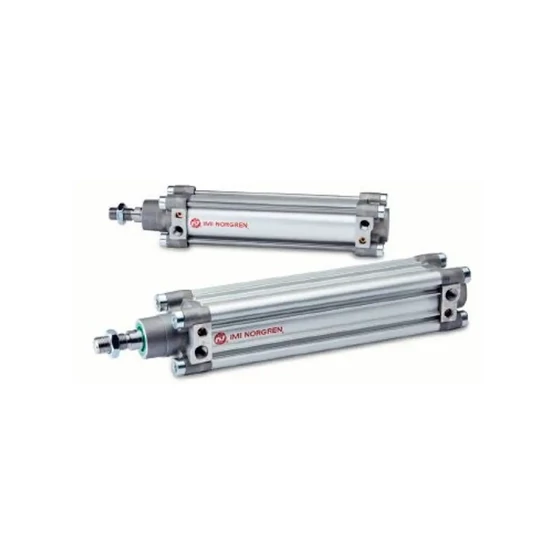

Norgren SA/802040/M/50 ISO/VDMA Cylinder, Double Acting - Ø40mm, 50mm Stroke

This IMI Norgren SA/802040/M/50 ISO/VDMA standard cylinder is a double-acting pneumatic unit with a Ø40 mm bore and a 50 mm stroke length. It conforms to ISO 15552, 6431, and VDMA 24562 Part 1 standards, and its mounting elements comply with ISO 6431, VDMA 24562 Part 2, and NFE 49-003-1. Thanks to its low friction, it operates with high efficiency.

Product Features

• Type: ISO/VDMA Cylinder
• Operation: Double acting
• Design: Standard cylinder with round tube
• Cylinder Ø: 40 mm
• Piston Rod Ø: 16 mm
• Piston Rod Material: Stainless steel (austenitic)
• Magnetic Piston: With built-in magnetic piston
• Connection: G1/4
• Stroke: 50 mm

Standards and Characteristics

• Compliant Standards: ISO 15552, 6431, and VDMA 24562 Part 1
• Mounting Elements: According to ISO 6431, VDMA 24562 Part 2, and NFE 49-003-1
• High Efficiency: Due to low internal friction.
