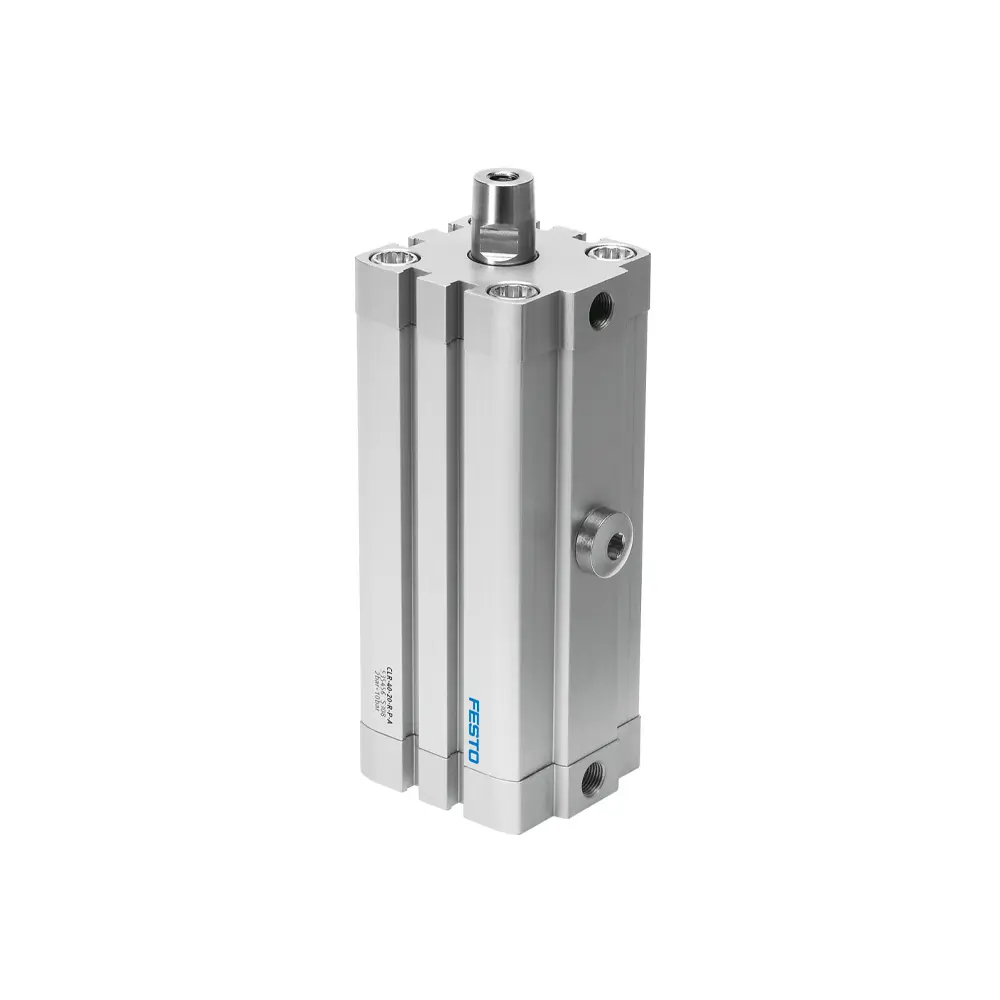

Description
Technical Data
- Total stroke: 38 mm
- Piston Ø: 32 mm
- Piston rod thread: M8
- Rotation angle: 90 degrees +/- 2 degrees
- Clamping stroke: 20 mm
- Cushioning: Elastic cushioning rings/pads on both sides
- Mounting position: Any
- Design structure: Piston, Piston rod, Cylinder barrel
- Position sensing: For proximity switch
- Direction of rotation: On the right side

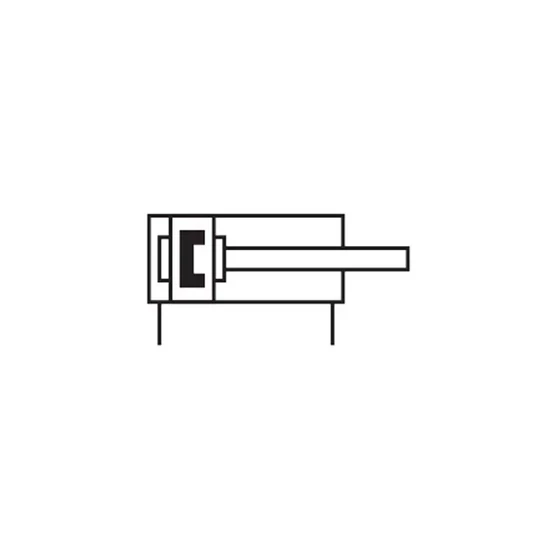

- Symbol: 00991217
- Operating pressure: 2 bar ... 10 bar
- Mode of operation: Double-acting
- Operating medium: Compressed air according to ISO 8573-1:2010 [7:4:4]
- Note on operating/control medium: Lubricated operation possible (required for further operation)
- Corrosion resistance class KBK: 2 - moderate corrosion stress
- LABS conformity: VDMA24364-B2-L
- Ambient temperature: -10 °C ... 80 °C
- Effective clamping force at 0.2 MPa (2 bar, 29 psi): 111 N
- Effective clamping force at 0.4 MPa (4 bar, 58 psi): 216 N
- Effective clamping force at 0.6 MPa (6 bar, 87 psi): 313 N
- Max. tightening torque for finger clamping screw: 24 Nm
- Theoretical clamping force at 0.6 MPa (6 bar, 87 psi): 362 N
- Product weight: 765 g
- Mounting type: Optionally:
- With through-hole
- With internal thread
- With accessories
- Pneumatic connection: G1/8
Materials
- Flange screw material: Steel, galvanized
- End cap material: Forged aluminum alloy, coated
- Seal material: NBR, TPE-U(PU)
- Housing material: Forged aluminum alloy, slide anodized
- Piston rod material: High-alloy stainless steel
- Cylinder barrel material: Forged aluminum alloy, smooth anodized
