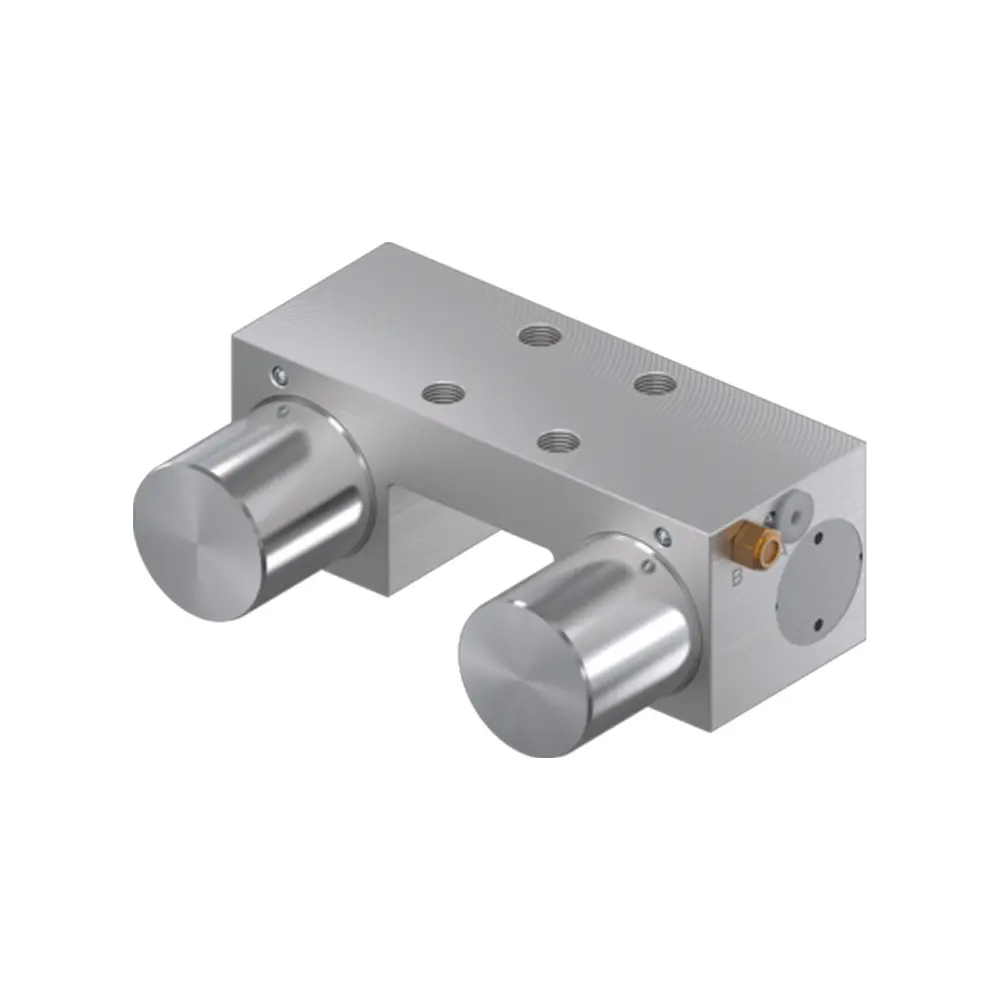

Clamping cylinder - MKS1505AK-03

Schunk MKS Series Clamping Element: Secure and Powerful Clamping on Profile Rail Guides

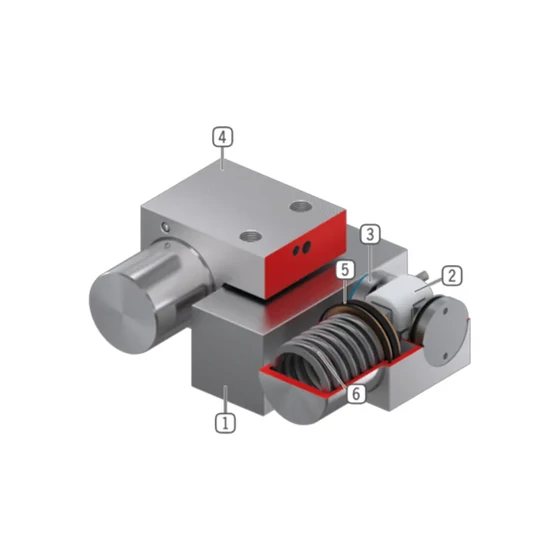

The Schunk MKS series clamping elements offer a broad range of products, available for all common profile rail guides. These clamping elements are energize-to-open (NC), meaning they close via spring force, ensuring safe clamping in case of energy failure. They provide a high holding force, which can be further increased with "PLUS air" activation. Their exceptional durability, with up to 5 million static clamping cycles, makes them highly reliable for long-term use.

Key Features and Benefits

• Fail-safe clamping: Spring-loaded energy storage ensures safe clamping in case of energy failure.
• Higher holding force: Standard 400 N, expandable to 1050 N via "PLUS air" activation.
• High durability: Up to 5 million static clamping cycles for reliable long-term operation.
• Broad compatibility: Available for all common profile rail guides.
• Modular design: Allows for easy installation and maintenance.

Technical Data

• Holding force: 400 N
• Operating pressure min.: 5.5 bar
• Installation direction: From the front
• Max. length clamping: 58
• Nominal operating pressure: 6 bar
• Operating pressure max.: 6.5 bar
• Wiper-Holding force PLUS connection: 1050 N
• Weight: 0.25 kg
