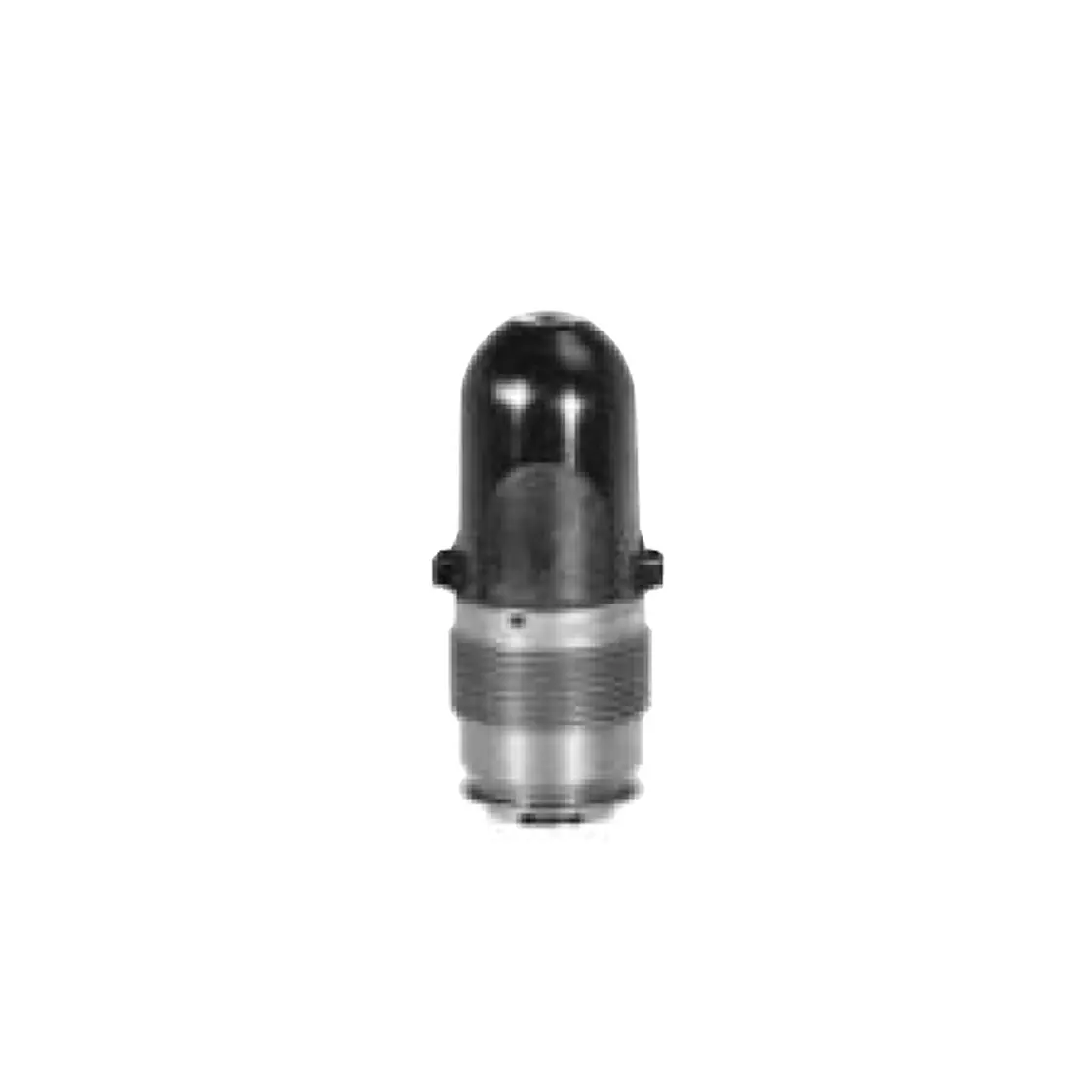

Pressure relief cartridge - M35×1,5 - 200bar
181.5770 € + VAT
Qty:pcs
Add to Cart

Pressure relief cartridge - M35×1,5 - 200bar

181.5770 € + VAT
Qty:pcs
Add to Cart
Connection cartridge
Maximum flow rate 100 l / min
Type of Actuation Imbuszkulcs
Type of Operation Mechanikus
Size M35×1.5
Maximum pressure 330 bar
Type Pressure relief
Model: HVNHFM35BR200
Availability: 1 pcs in stock

This pressure reducing valve features a damped poppet design with manual opening, and is suitable for cartridge installation. For flexible installation, it can be used in any desired mounting position.

Technical Specifications

  • Design: Damped poppet valve, manual opening
  • Mounting: Cartridge installation
  • Installation position: As desired
  • Direction of flow: See symbols
  • Ambient temperature range: –25 °C ... +65 °C (–13 °F … +149 °F)
  • TÜV codes (For cartridge installation):
    • Max. operating pressure: 330 bar (5000 psi)
  • Hydraulic fluid:
    • Mineral oils to DIN 51 524
    • And flame-resistant fluids to VDMA 24 317/24 320
  • Operating temperature range: –15 °C ... +80 °C (+5 °F …+176 °F)
  • Viscosity range: 10 … 380 mm²/s (2.2 … 82 SUS)
