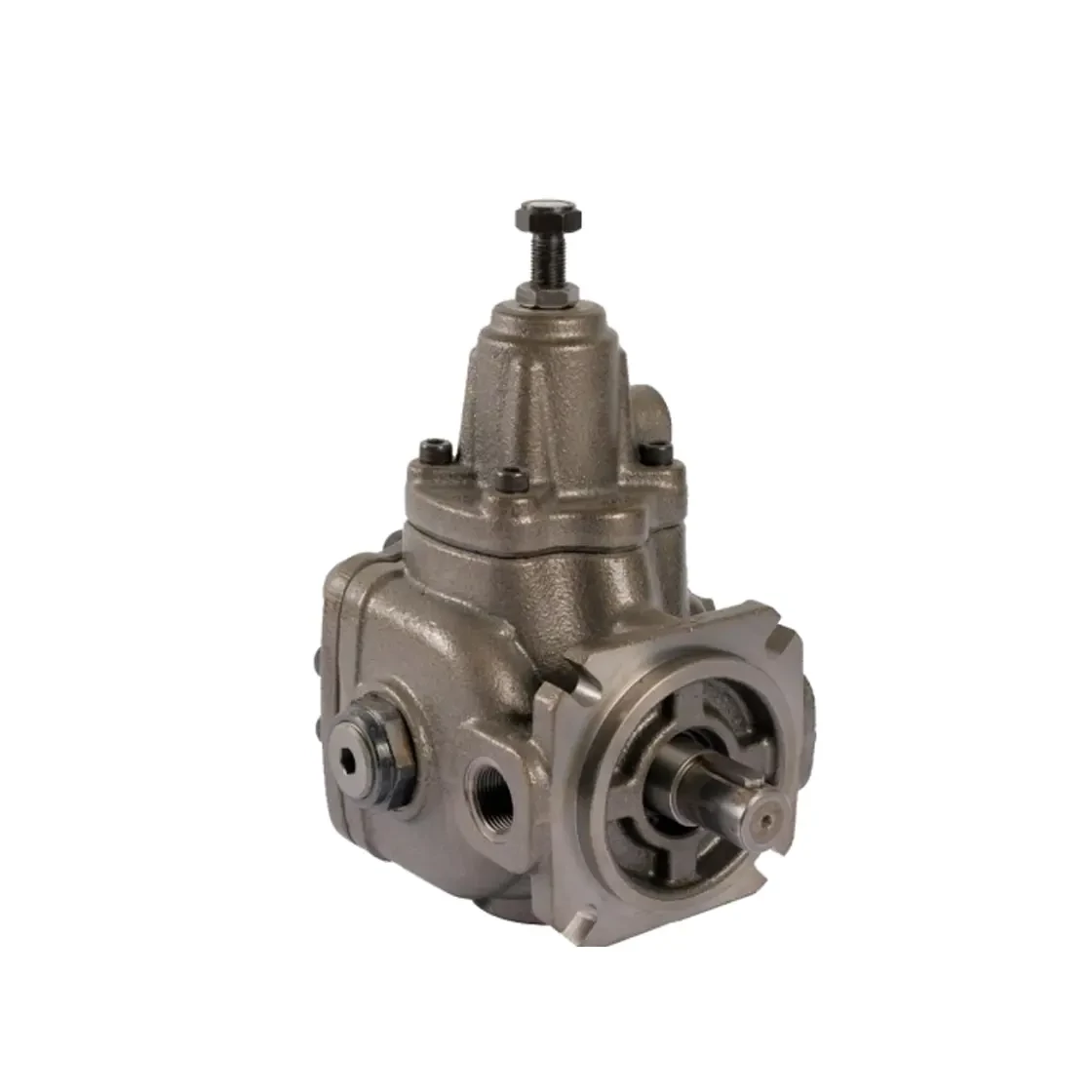

Variable Vane Pump - 01-PLP-05-16 FHRMA

Variable Vane Pump - 01-PLP-05-16 FHRMA

Subtype Pressure-controlled
Connections BSP G3/4" - G1/2"
Other ikresíthető
Rotational speed at working pressure (min-max) 800-1800
Direction of rotation jobb
Mounting flange + screw mounting 80/101,5 (100-103)×4 M8
Mounting flange standard ISO 3019-2-80-B4
Pressure Connection G1/2"
Key [mm] 6 h9
Regulation nyomáskompenzálás - 20-120 bar
Displacement (cm³/rev) 16
Suction connection G3/4"
Shaft [mm] ø20 h7
Type egy körös
Seal NBR
Maximum pressure 120 bar
Type Single-circuit
Manufacturer article number: 260 161 10 10
Model: HPLN01PLP0516FHRMA
Availability: Available to order
Manufacturer:
Berarma
Berarma
