Tube Coupling (M-R) - 22×1,5 - G1/2
3.0727 € + VAT
Qty:pcs
Add to Cart

Tube Coupling (M-R) - 22×1,5 - G1/2"

3.0727 € + VAT
Qty:pcs
Add to Cart
Material Steel
Connection 1 Metric male thread
Connection 2 BSPP female thread
Connection F1 (inch) 22x1.5
Connection F2 (mm) 1/2''
Connector sub-type Metrikus/BSP menet (Szükítő-M/R) (K-B)
Connector type Váltó, szűkítő - RI
Surface Galvanic coating

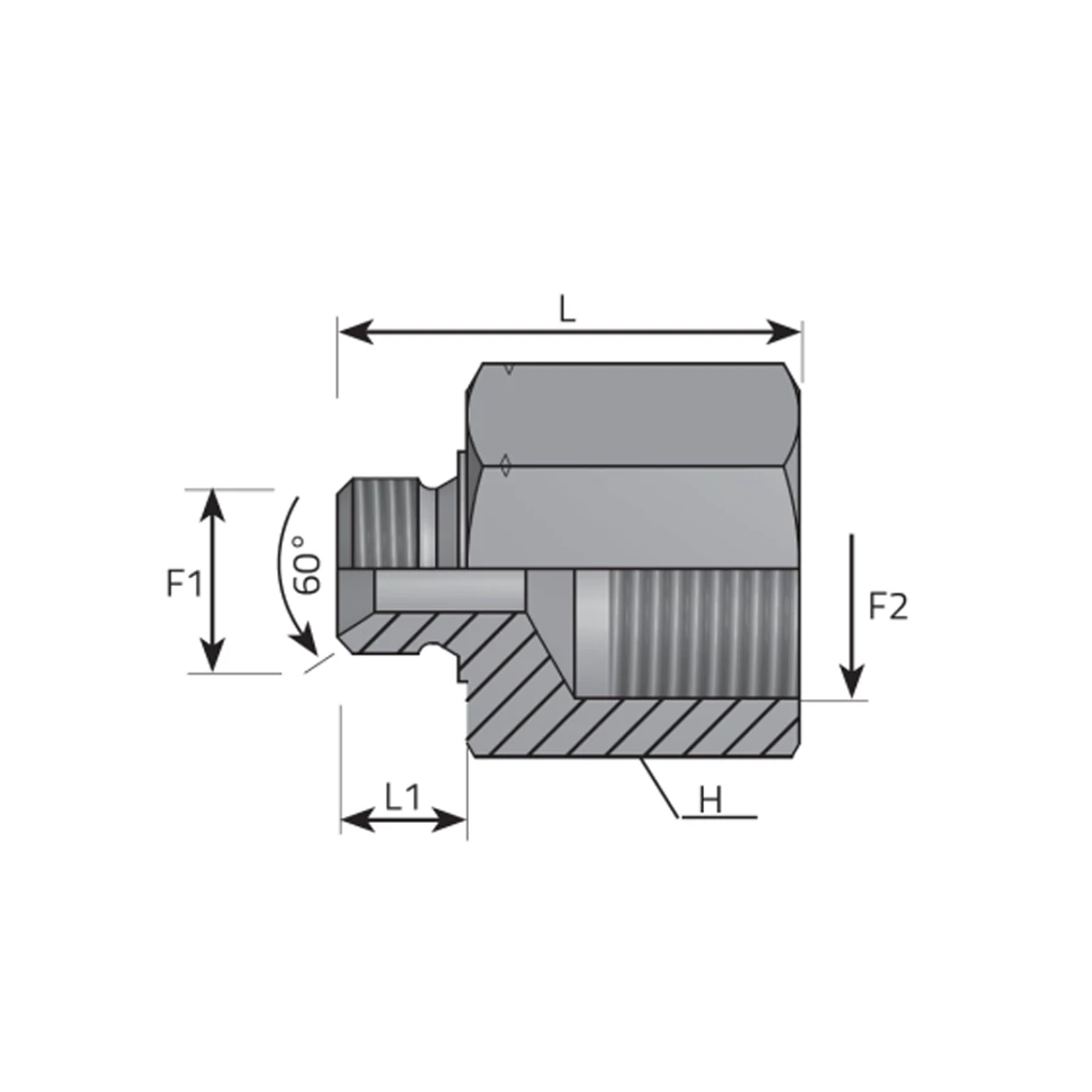

H1 (mm) 27
L1 (mm) 14
L2 (mm) 31
L (mm) 45
Structural form Reducer/Changing Adapter - RI
Sealing 1 60° internal cone, flat sealing
Sealing 2 Flat sealing
Operating pressure (bar) 315
Operating pressure (PSI) 4568
Main category Csatlakozók
SubCategory Csavarzatok
Manufacturer Nincs
Manufacturer article number: ARMFLM2208
Model: HQCRMR22R080
Availability: 3 pcs in stock
Manufacturer: Nem besorolt
