Tube Coupling (R-M) - G1/4
3.0727 € + VAT
Qty:pcs
Add to Cart

Tube Coupling (R-M) - G1/4" - 14×1,5

3.0727 € + VAT
Qty:pcs
Add to Cart

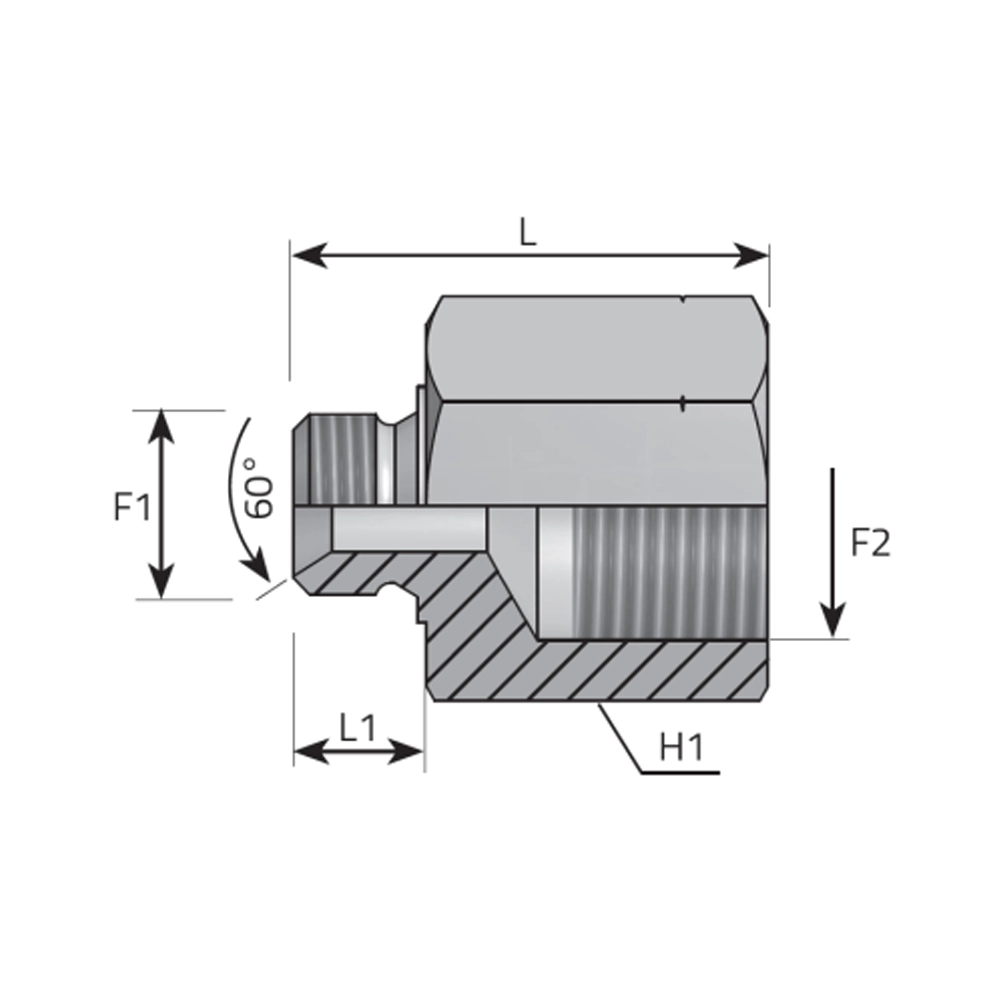

Material Steel
Connection 1 BSPP male thread
Connection 2 Metric female thread
Connection F1 (inch) 1/4''
Connection F2 (mm) 14x1.5
Connector sub-type BSP külső/Metrikus belső menet (Szükítő-R/M) (K-B)
Connector type Váltó, szűkítő - RI
Surface Galvanic coating
H1 (mm) 19
L1 (mm) 11
L (mm) 33
Structural form Reducer/Changing Adapter - RI
Sealing 1 60° internal cone, flat sealing
Sealing 2 Flat sealing
Operating pressure (bar) 350
Operating pressure (PSI) 5075
Main category Csatlakozók
SubCategory Csavarzatok
Manufacturer Nincs
Manufacturer article number: ARMFLM0414
Model: HQCRRM04M140
Availability: 4 pcs in stock
Manufacturer: Nem besorolt
