Tube Coupling (ET-BSP) - (K-H-K) - G3/8
11.2667 € + VAT
Qty:pcs
Add to Cart

Tube Coupling (ET-BSP) - (K-H-K) - G3/8"

11.2667 € + VAT
Qty:pcs
Add to Cart
Material Steel
Connection 1 BSPP male thread
Connection 2 BSPP female swivel nut
Connection 3 BSPP male thread
Connection F1 (inch) 3/8''
Connection F2 (mm) 3/8''
Connector sub-type BSP külső/hollander belső menet (ET-BSP) (K-H-K)
Connector type T-idom rátét - ET
Surface Galvanic coating

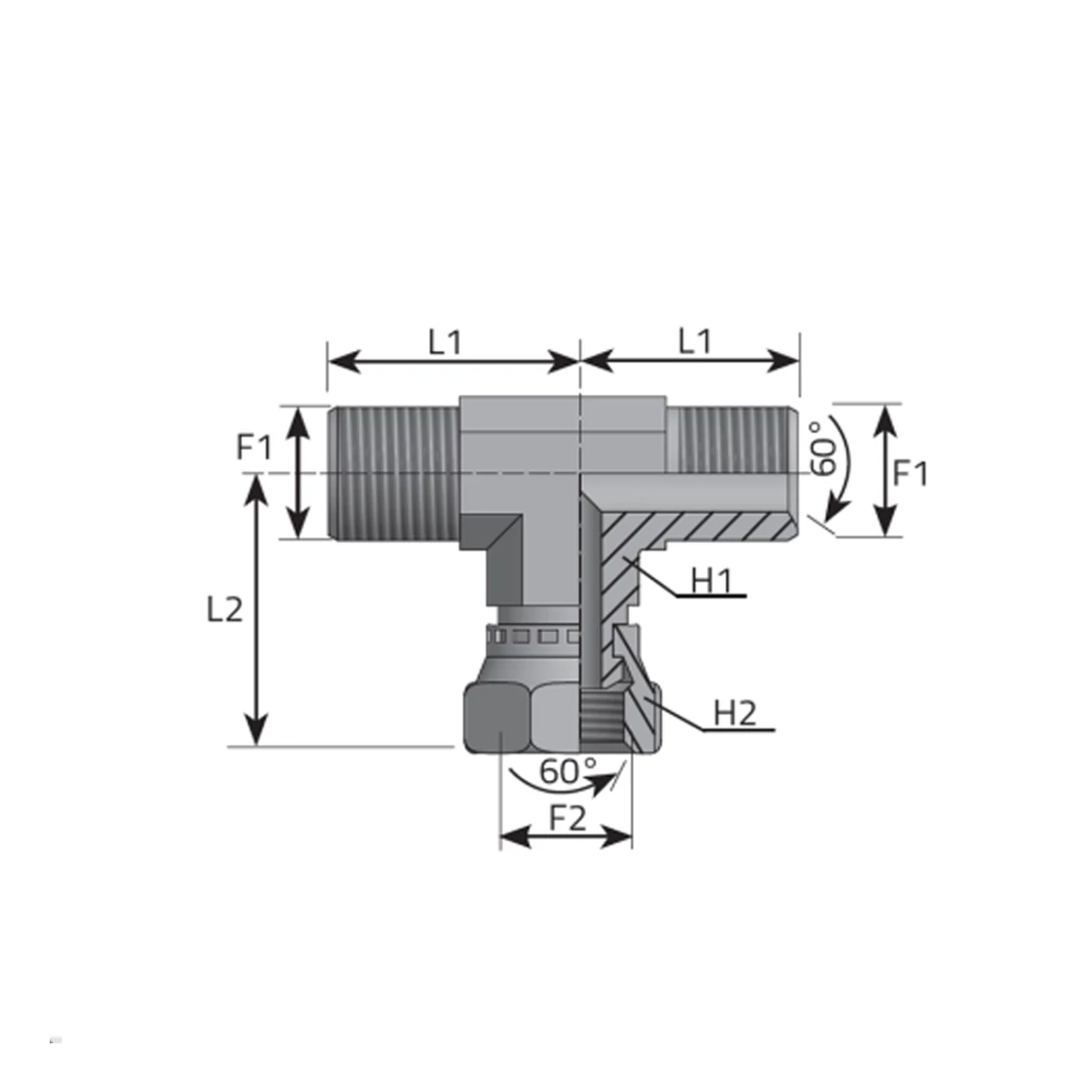

H1 (mm) 19
H2 (mm) 22
L1 (mm) 29
L2 (mm) 36
Structural form T-fitting Insert - ET
Sealing 1 60° internal cone
Sealing 2 60° external cone
Sealing 3 60° internal cone
Operating pressure (bar) 350
Operating pressure (PSI) 5075
Main category Csatlakozók
SubCategory Csavarzatok
Manufacturer Nincs
Manufacturer article number: TMG06FGG06P
Model: HQCCET0600
Availability: 6 pcs in stock
Manufacturer: Nem besorolt
