Tube Coupling - (ROV-UNF) - JIC 1/2
1.5364 € + VAT
Qty:pcs
Add to Cart

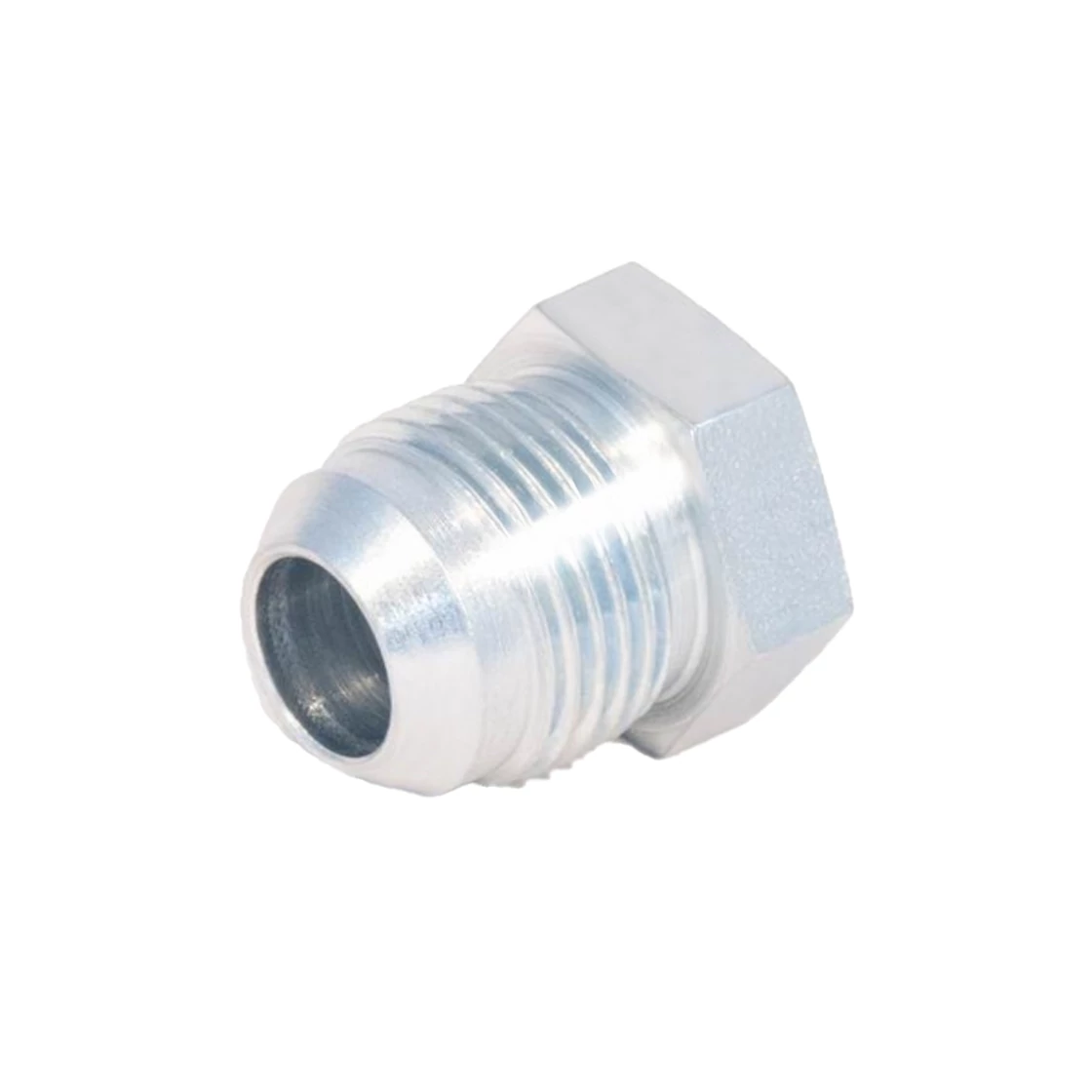

Tube Coupling - (ROV-UNF) - JIC 1/2"-20

1.5364 € + VAT
Qty:pcs
Add to Cart

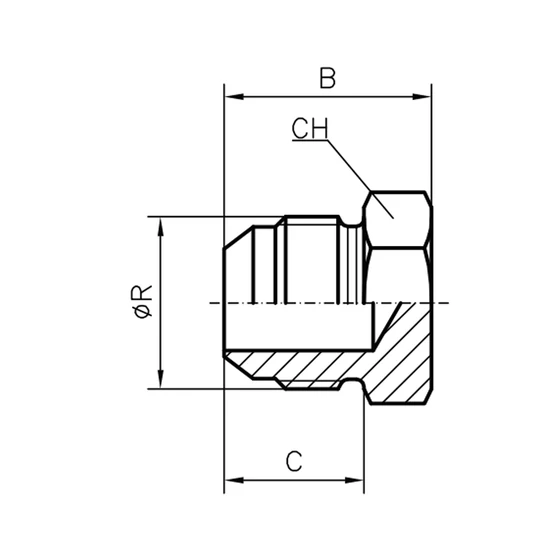

Material Steel
B (mm) 20.3
C (mm) 14
CH (mm) 14
Connection 1 UNF male thread
Connection ØR (col) 1/2
Connector sub-type UNF menet - JIC kivitel (ROV-JIC)
Connector type Zárócsavar hollanderbe - ROV
Pipe size (mm) 8
Pipe size (inch) 5/16
Surface Galvanic coating
Structural form Plug for Swivel Nut - ROV
Sealing 1 37° external cone
Operating pressure (bar) 350
Main category Csatlakozók
SubCategory Csavarzatok
Manufacturer Nincs
Manufacturer article number: BA.45.00.05
Model: HQCJRO0500
Availability: 7 pcs in stock
Manufacturer: Nem besorolt
