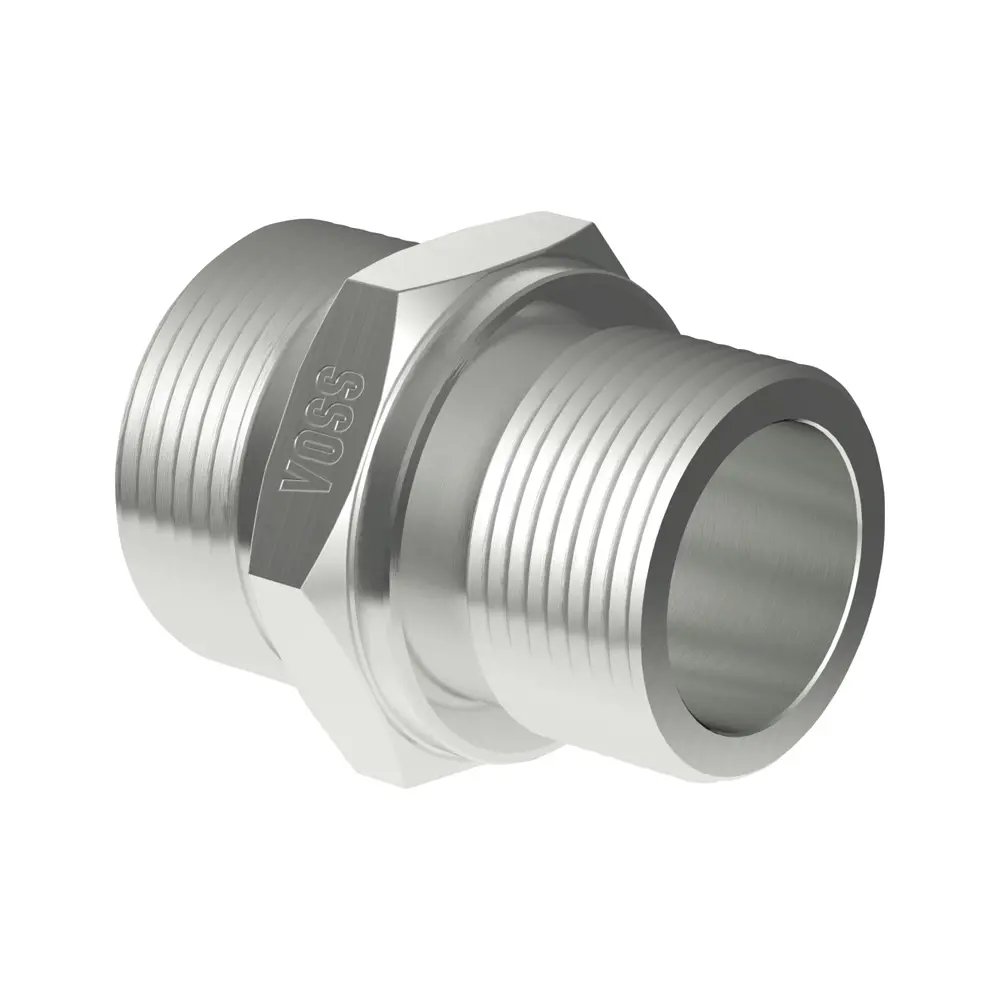

Tube Coupling - GE 08-SR 3/8
6.4016 € + VAT
Qty:pcs
Notification

Tube Coupling - GE 08-SR 3/8"

6.4016 € + VAT
Qty:pcs
Notification

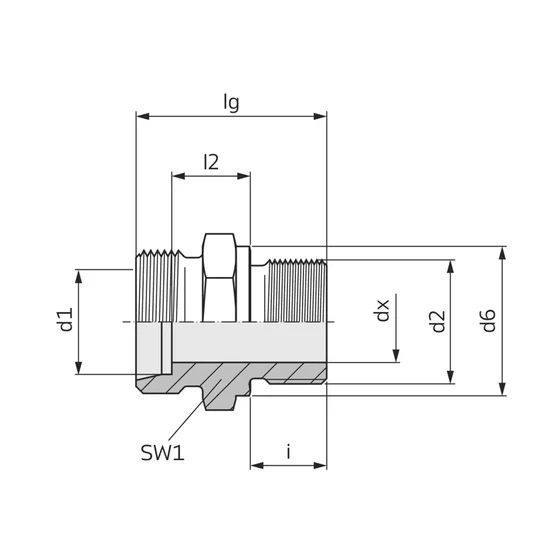

Material Steel
Connection 1 Metric external thread
Connection 2 BSPP external thread
Connection G1 (mm) M16x1,5
Connection G2 (mm) G 3/8 A
Connector sub-type Metrikus/BSP menet - nehéz kivitel (GE-S/R)
Connector type Egyenes becsavarható - GE
d6 (mm) 22
Ø d1 (mm) 8
dx (mm) 5
Surface Galvanic coating
l2 (mm) 15.5
i (mm) 12
Design S
lg (mm) 34.5
SW1 (mm) 22
Standard DIN 2353/ISO 8434-1, ISO 9974-3
Structural form Straight screw-in fitting
Extent Nut, without cutting ring
Sealing 1 24° internal cone
Sealing 2 Sealing edge
Operating pressure (bar) 500
Main category Csatlakozók
SubCategory Csavarzatok
Manufacturer Nincs
Manufacturer article number: 110572007
Model: HQCGE08SR060
Availability: Available to order
Manufacturer: Nem besorolt
