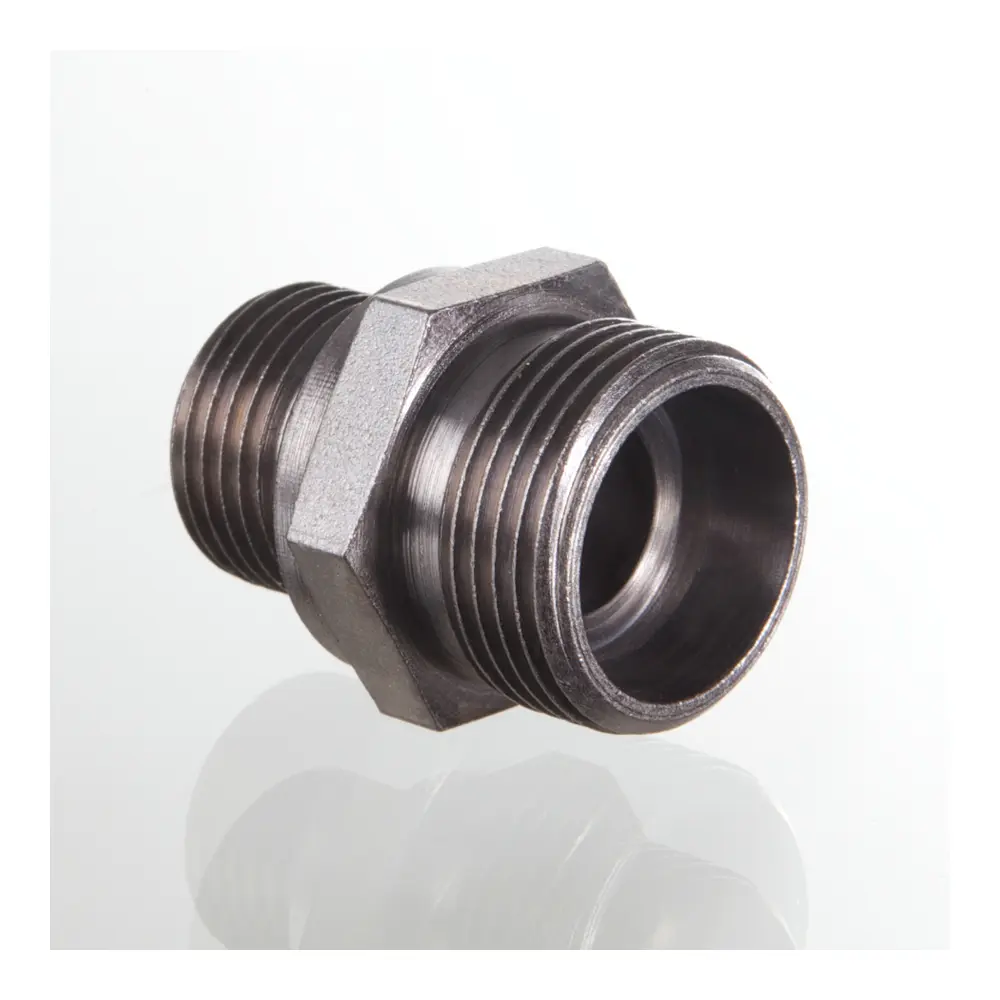

Tube Coupling - GE 14-SM - 22×1,5
6.2405 € + VAT
Qty:pcs
Add to Cart

Tube Coupling - GE 14-SM - 22×1,5

6.2405 € + VAT
Qty:pcs
Add to Cart

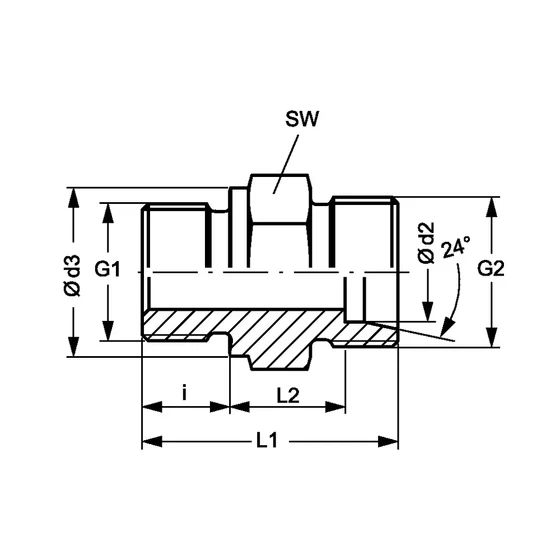

Material Steel
Connection 1 Metric external thread
Connection 2 Metric external thread
Connection G1 (mm) M 22 x 1.5
Connection G2 (mm) M 22 x 1.5
Connector sub-type Metrikus menet - nehéz kivitel (GE-S/M)
Connector type Egyenes becsavarható - GE
Ø d3 (mm) 27
Ø d2 (mm) 14
Surface Galvanic coating
i (mm) 14
Design S
L1 (mm) 41.5
L2 (mm) 19.5
SW (mm) 27
Standard DIN 2353/ISO 8434-1, ISO 9974-3
Structural form Straight screw-in fitting
Extent Nut, without cutting ring
Sealing 1 Sealing edge
Sealing 2 24° internal cone
Operating pressure (bar) 400
Manufacturer article number: VMNW10HS22
Model: HQCGE14SM220
Availability: 8 pcs in stock
Manufacturer: Nem besorolt
