Tube Coupling - GE 16-SM
6.2405 € + VAT
Qty:pcs
Add to Cart

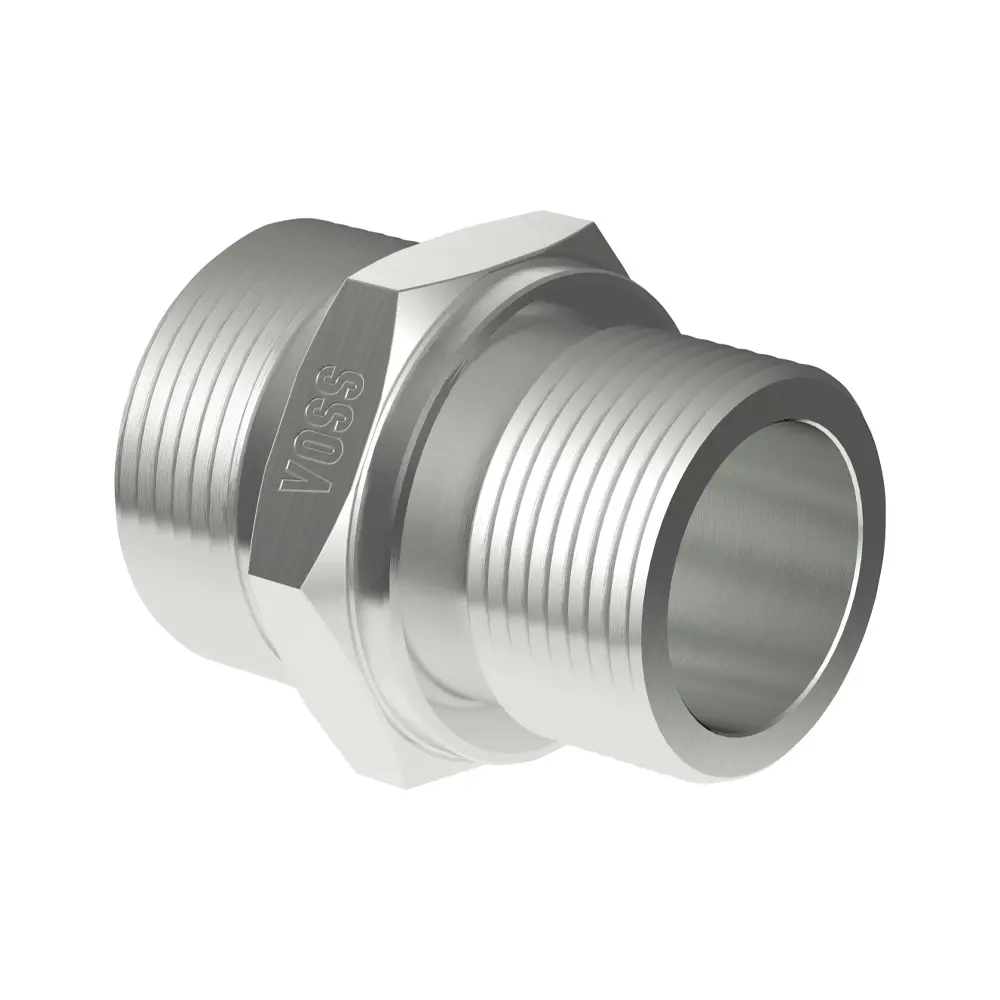

Tube Coupling - GE 16-SM

6.2405 € + VAT
Qty:pcs
Add to Cart
Material Steel
Connection 1 Metric external thread
Connection 2 Metric external thread
Connection G1 (mm) M24x1,5
Connection G2 (mm) M 22 x 1.5
Connector sub-type Metrikus menet - nehéz kivitel (GE-S/M)
Connector type Egyenes becsavarható - GE

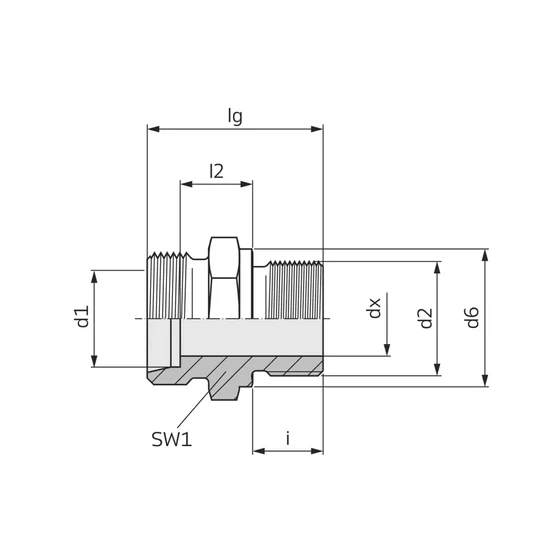

d6 (mm) 27
Ø d1 (mm) 16
dx (mm) 12
Surface Galvanic coating
l2 (mm) 18.5
i (mm) 14
Design S
lg (mm) 41
SW1 (mm) 27
Standard DIN 2353/ISO 8434-1, ISO 9974-3
Structural form Straight screw-in fitting
Extent Nut, without cutting ring
Sealing 1 24° internal cone
Sealing 2 Sealing edge
Operating pressure (bar) 630
Manufacturer article number: 109752007
Model: HQCGE16SM220
Availability: 7 pcs in stock
Manufacturer: Nem besorolt
