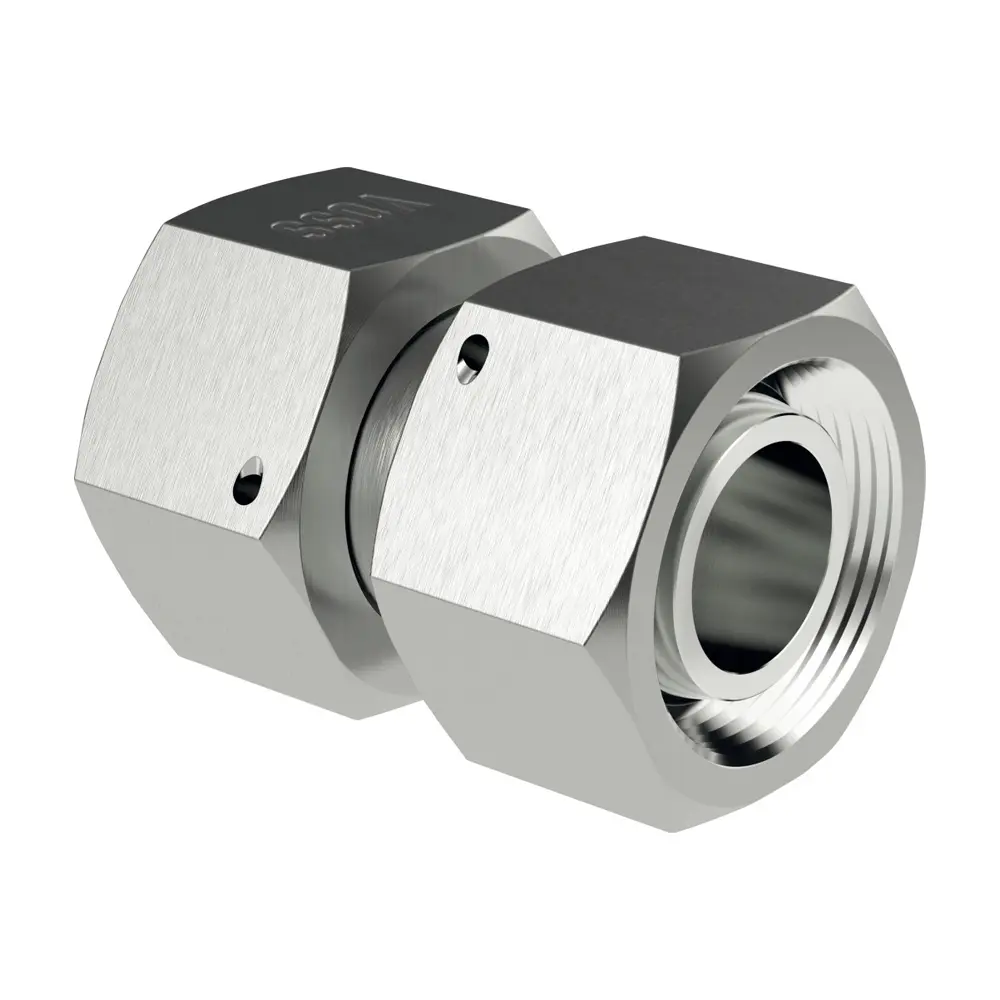

Tube Coupling - GZ 08-S
12.5000 € + VAT
Qty:pcs
Add to Cart

Tube Coupling - GZ 08-S

12.5000 € + VAT
Qty:pcs
Add to Cart
Material Steel
Connection 1 Metric swivel nut with internal thread
Connection 2 Metric swivel nut with internal thread
Connection G1 - G2 (mm) M16x1,5
Connector sub-type Metrikus menet - nehéz kivitel (GZ-S)
Connector type Egyenes összekötő - GZ
Ø d1 (mm) 8
dy (mm) 4
Surface Galvanic coating
Design S

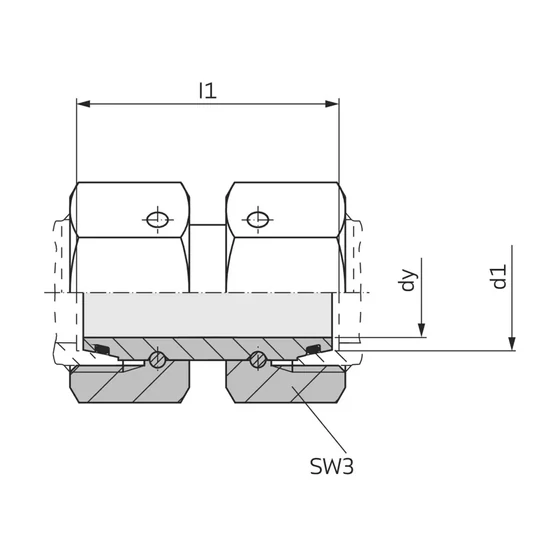

l1 (mm) 40.5
SW3 (mm) 19
Standard DIN 2353/ISO 8434-1
Structural form Straight connector
Extent Double nut
Sealing 1 24° external cone
Sealing 2 24° external cone
Operating pressure (bar) 800
Main category Fittings
SubCategory Straight union - GZ
Manufacturer Nincs
Manufacturer article number: 1178112058
Model: HQCGZ08S00
Availability: 8 pcs in stock
Manufacturer: Nem besorolt
