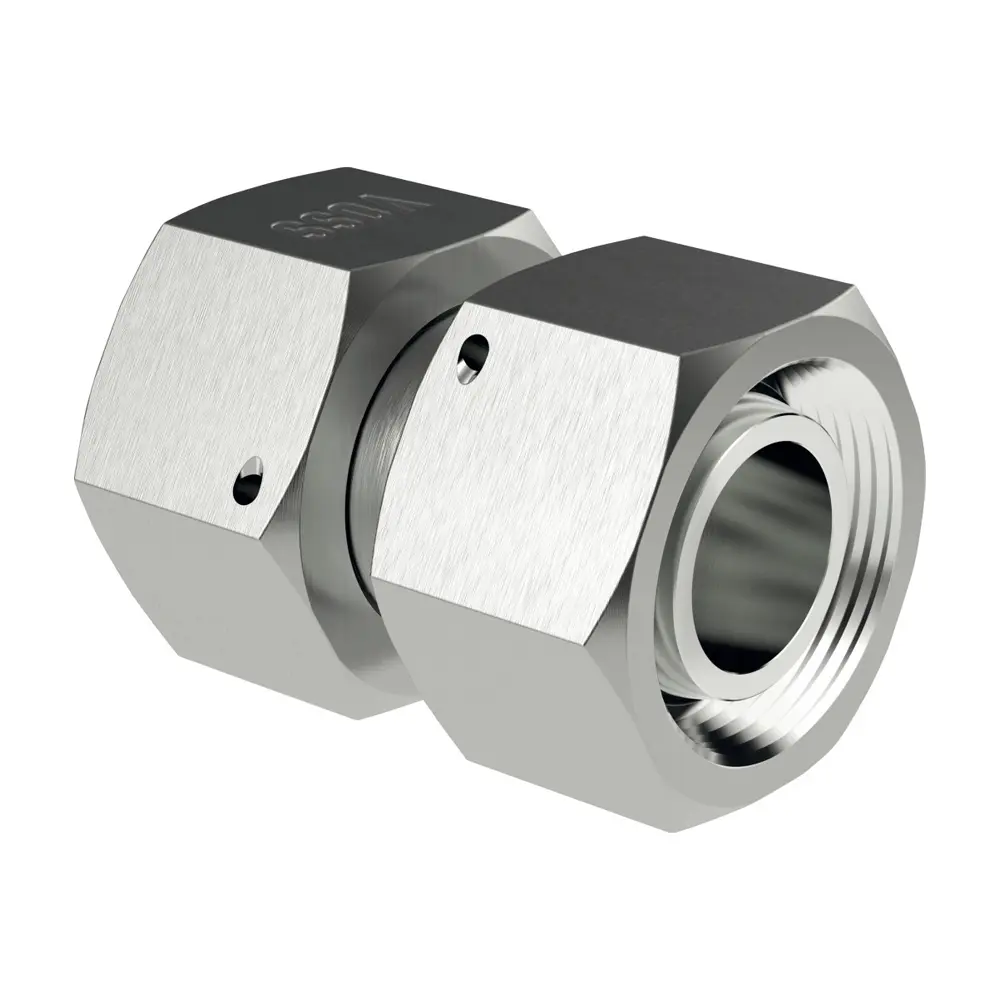

Tube Coupling - GZ 16-S
16.2500 € + VAT
Qty:pcs
Add to Cart

Tube Coupling - GZ 16-S

16.2500 € + VAT
Qty:pcs
Add to Cart
Material Steel
Connection 1 Metric swivel nut with internal thread
Connection 2 Metric swivel nut with internal thread
Connection G1 - G2 (mm) M24x1,5
Connector sub-type Metrikus menet - nehéz kivitel (GZ-S)
Connector type Egyenes összekötő - GZ
Ø d1 (mm) 16
dy (mm) 11
Surface Galvanic coating
Design S
l1 (mm) 49
SW3 (mm) 30
Standard DIN 2353/ISO 8434-1
Structural form Straight connector
Extent Double nut
Sealing 1 24° external cone
Sealing 2 24° external cone
Operating pressure (bar) 630
Main category Fittings
SubCategory Straight union - GZ
Manufacturer Nincs
Manufacturer article number: 1178152058
Model: HQCGZ16S00
Availability: 9 pcs in stock
Manufacturer: Nem besorolt
