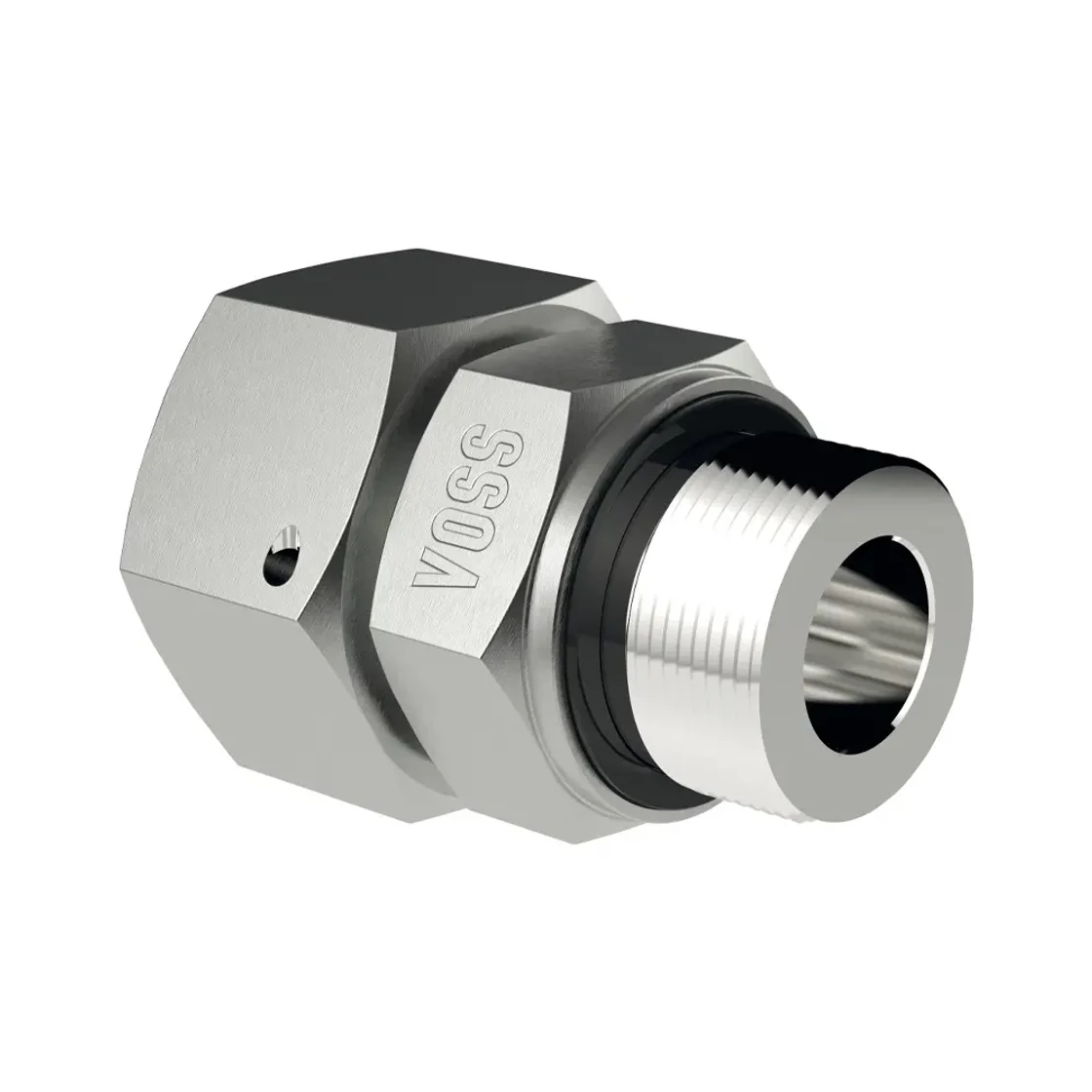

Tube Coupling - EGE 20-SM
10.0085 € + VAT
Qty:pcs
Add to Cart

Tube Coupling - EGE 20-SM

10.0085 € + VAT
Qty:pcs
Add to Cart
Material Steel
Connection 1 Metric swivel nut with internal thread
Connection 2 Metric male thread
Connection G1 (mm) M30x2
Connection G2 (mm) M 27 x 2
Connector sub-type Metrikus menet - nehéz kivitel (EGE-S/M)
Connector type Egyenes rátét becsavarható - EGE
d7 (mm) 31.9
Ø d1 (mm) 20
dx (mm) 14
Surface Galvanic coating
i (mm) 16
Design S
l5 (mm) 43
SW1 (mm) 32
SW3 (mm) 36
Standard DIN 2353/ISO 8434-1, ISO 1179-2
Structural form Straight Screw-in Insert - EGE
Extent Swivel nut, without cutting ring
Sealing 1 24° external cone
Sealing 2 E-form
Operating pressure (bar) 420
Manufacturer article number: 1164832000
Model: HQCEG20SM270
Availability: 3 pcs in stock
Manufacturer: Nem besorolt
