Tube Coupling - (EGE-R) - JIC 1.1/16
10.7592 € + VAT
Qty:pcs
Add to Cart

Tube Coupling - (EGE-R) - JIC 1.1/16"-12 - G3/4"

10.7592 € + VAT
Qty:pcs
Add to Cart

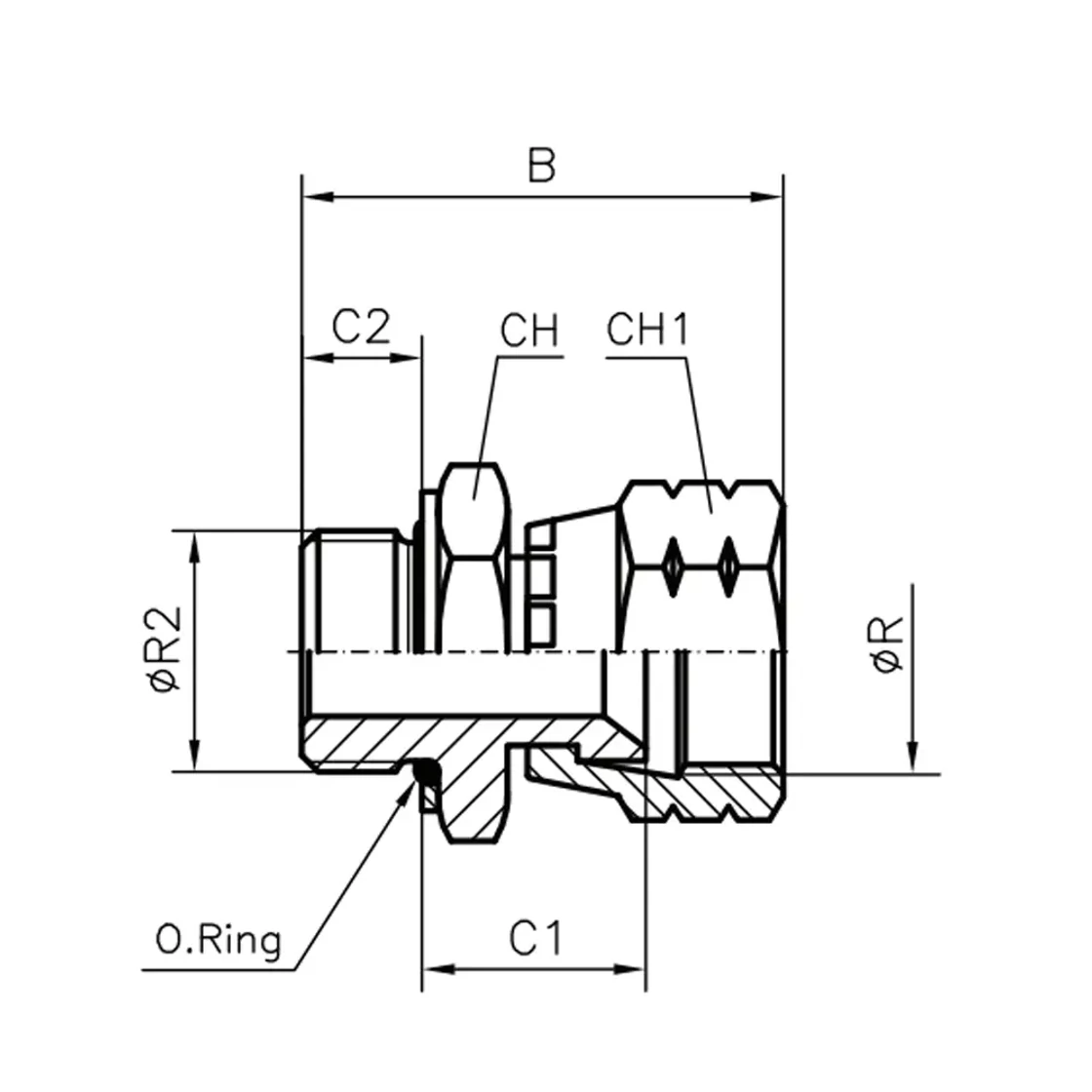

Material Steel
B (mm) 50.3
C1 (mm) 23
C2 (mm) 13
CH (mm) 36
CH1 (mm) 32
Connection 1 UNF female swivel nut
Connection 2 BSPP external thread
Connection ØR (col) 1” 1/16
Connection ØR2 (inch) 3/4
Connector sub-type UNF/BSP menet - JIC kivitel (EGE-JIC/R)
Connector type Egyenes rátét becsavarható - EGE
Pipe size (mm) 18
Pipe size (inch) 3/4
Surface Galvanic coating
Structural form Straight Screw-in Insert - EGE
Sealing 1 37° internal cone
Sealing 2 O-ring
Operating pressure (bar) 350
Manufacturer article number: BA.49.12.12
Model: HQCJEG12R120
Availability: 6 pcs in stock
Manufacturer: Nem besorolt
