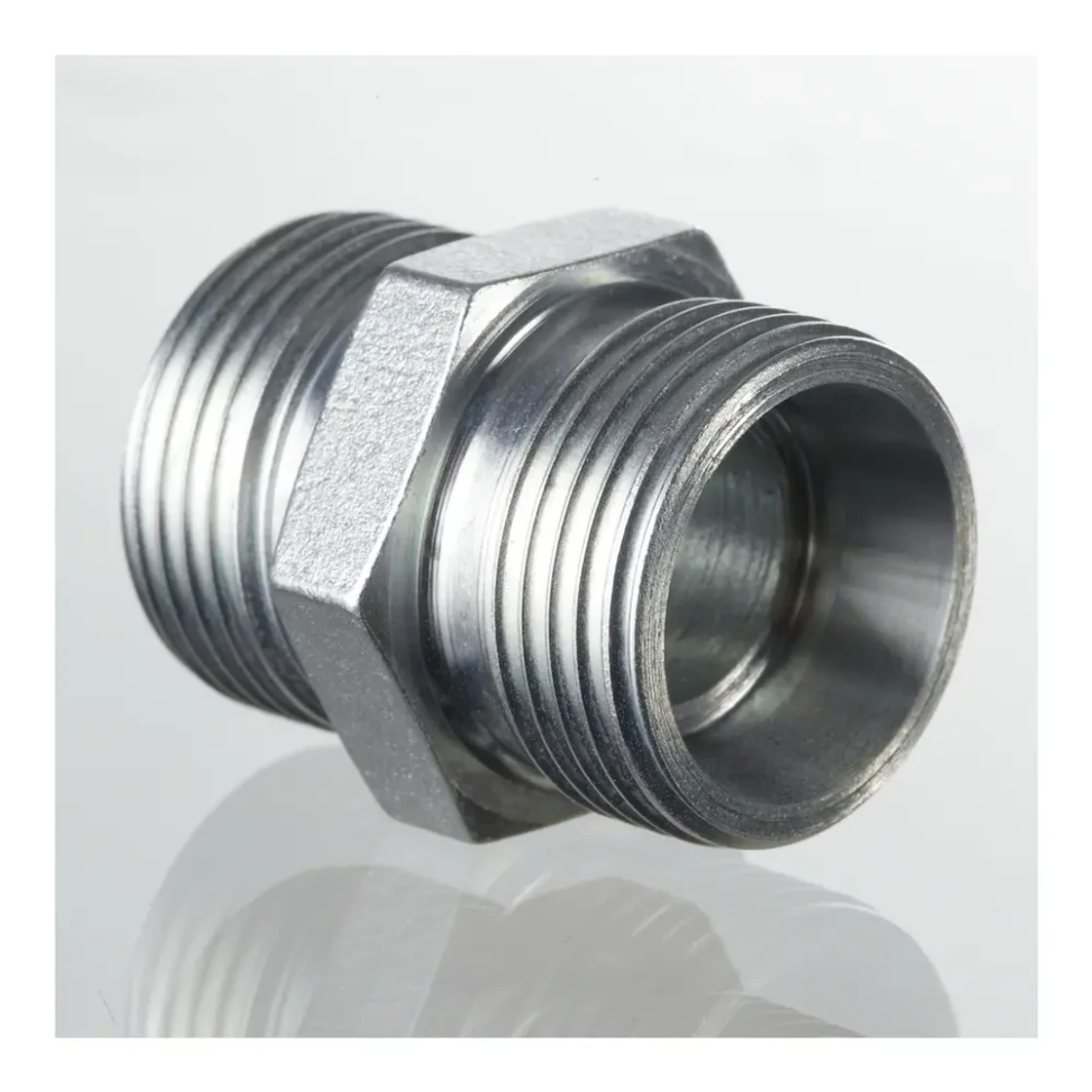

Tube Coupling - GR 15L/16S
6.2613 € + VAT
Qty:pcs
Add to Cart

Tube Coupling - GR 15L/16S

6.2613 € + VAT
Qty:pcs
Add to Cart
Material Steel
Connection 1 Metric male thread
Connection 2 Metric male thread
Connection G1 (mm) M24x1,5
Connection G2 (mm) M22x1,5
Connector sub-type Metrikus menet - könnyű/nehéz kivitel (GR-L/S)
Connector type Egyenes szűkítő - GR

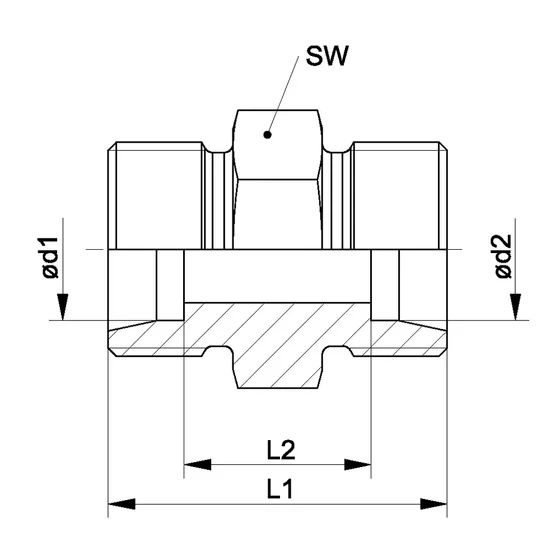

Ø d1 (mm) 16
Ø d2 (mm) 15
Surface Galvanic coating
Design S - L
L1 (mm) 36
L2 (mm) 20.5
SW (mm) 27
Standard ISO 8434-6
Structural form Straight Reducer - GR
Extent Swivel nut, without cutting ring
Sealing 1 24° internal cone
Sealing 2 24° internal cone
Operating pressure (bar) 400
Manufacturer article number: VNW13HS13HL
Model: HQCGR15L16S0
Availability: 10 pcs in stock
Manufacturer: Nem besorolt
