Material	Steel
Connector sub-type	Metrikus menet - könnyű kivitel (SKA-L)
Connector type	Hegeszthető csővég - SKA
Pipe size (mm)	35

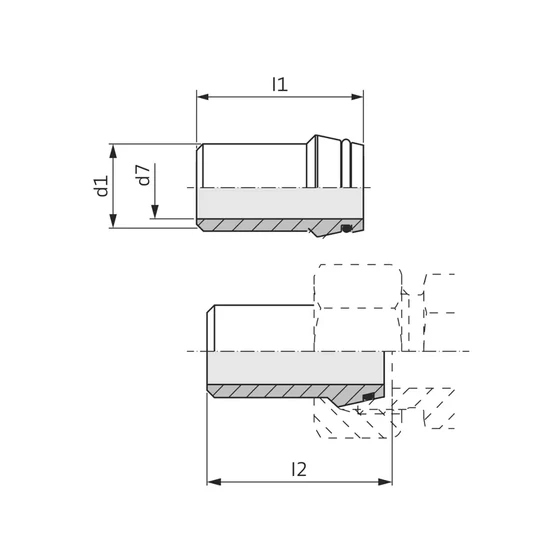

d7 (mm)	28
Ø d1 (mm)	35
Surface	Galvanic coating
l2 (mm)	49.5
Design	L
l1 (mm)	47.5
Standard	DIN 2353/ISO 8434-1
Structural form	Weldable tube end - SKA
Sealing 1	24° external cone
Sealing 2	Welding filler material
Operating pressure (bar)	160
Model:	HQCAK35L35
Availability:	Available to order

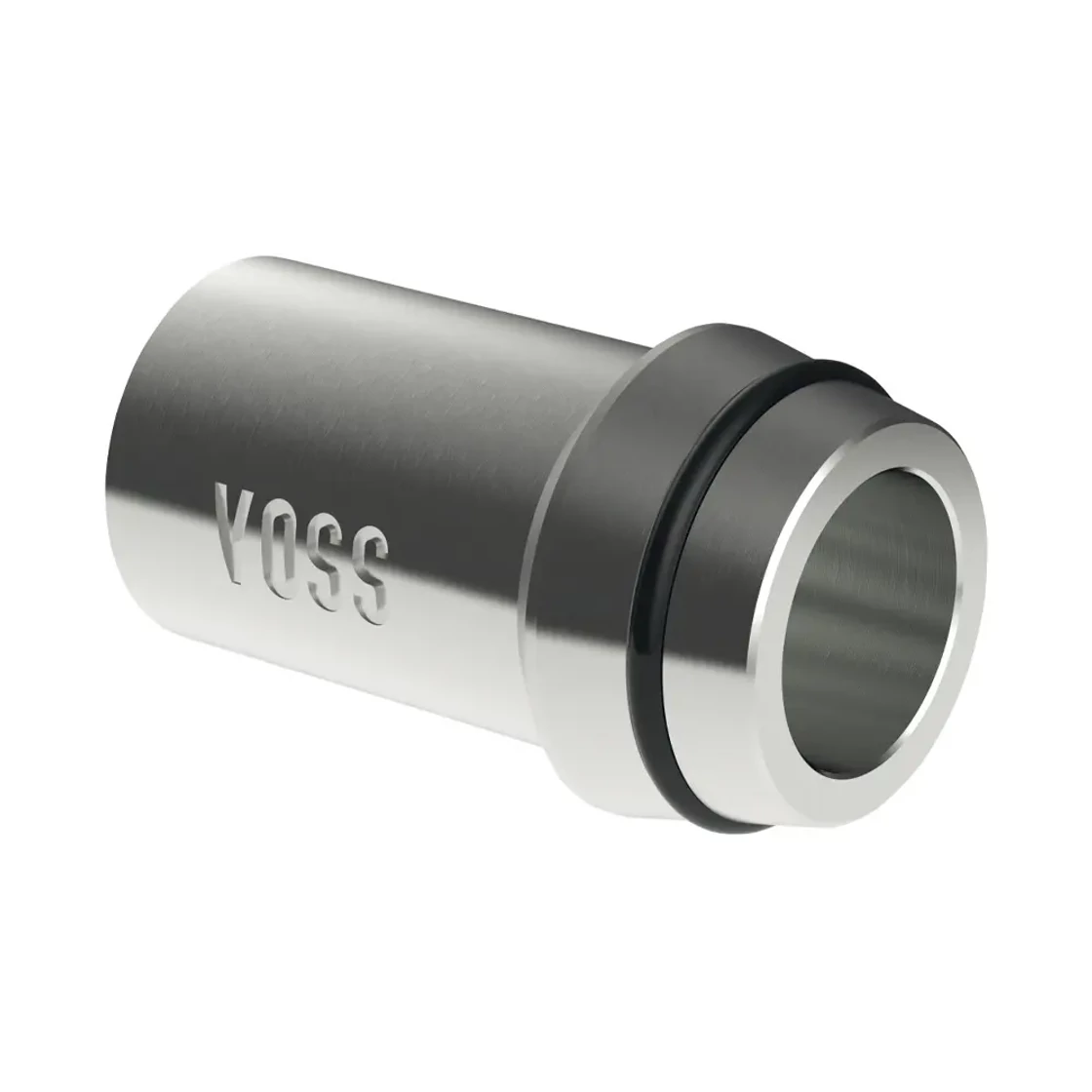

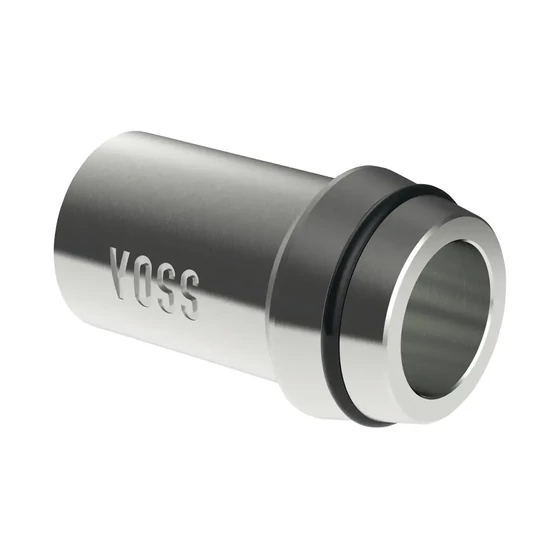

Tube Coupling - SKA 35-L - 35×3,5
