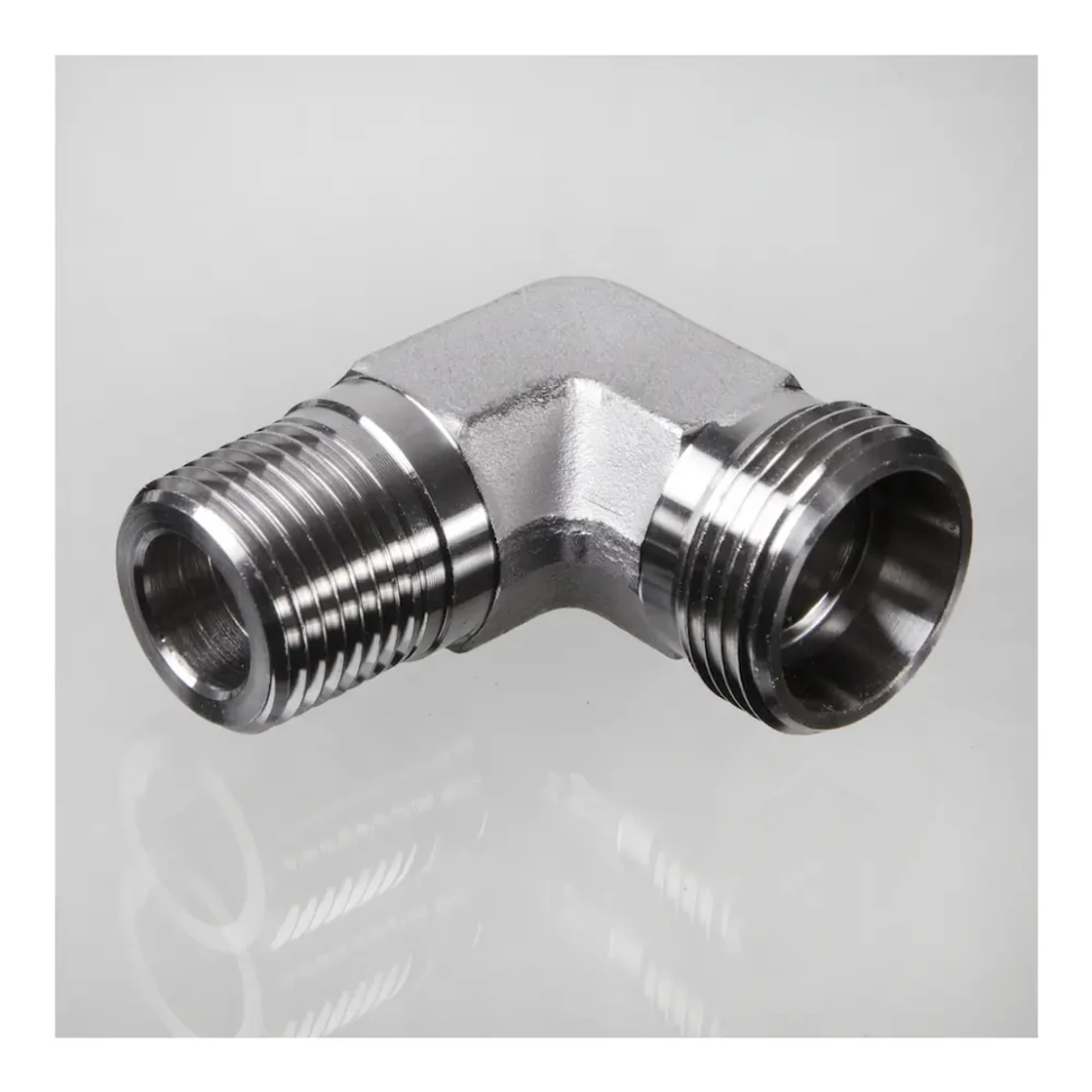

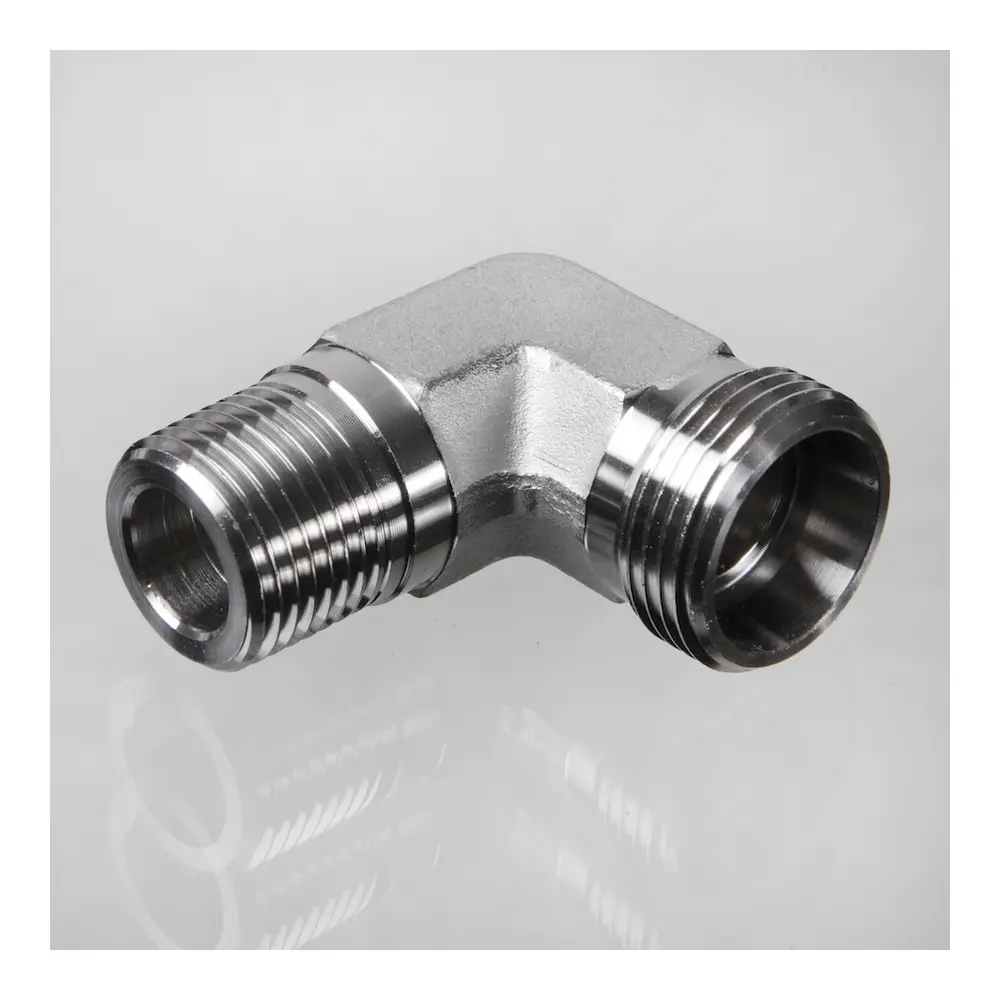

Tube Coupling - WE 06-LLR
5.0345 € + VAT
Qty:pcs
Add to Cart

Tube Coupling - WE 06-LLR

5.0345 € + VAT
Qty:pcs
Add to Cart
Material Steel
Connection 1 BSPT male thread
Connection 2 Metric male thread
Connection G1 (mm) R 1/8" K
Connection G2 (mm) M10x1
Connector sub-type Metrikus/BSP kúpos menet - extra könnyű kivitel (WE-LL/R)
Connector type Könyök becsavarható - WE

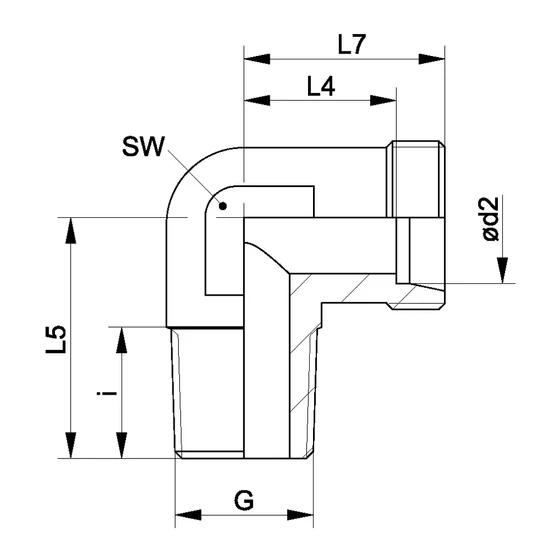

Ø d2 (mm) 6
Surface Galvanic coating
i (mm) 8
Design LL
L4 (mm) 9.5
L5 (mm) 17
L7 (mm) 15
SW (mm) 9
Standard DIN 2353/ISO 8434-1, DIN 3852-2
Structural form Screw-in Elbow Fitting - WE
Extent Swivel nut, without cutting ring
Sealing 1 Thread-sealing
Sealing 2 24° internal cone
Operating pressure (bar) 100
Manufacturer article number: 115102000
Model: HQCWE06LLR020
Availability: 12 pcs in stock
Manufacturer: Nem besorolt
