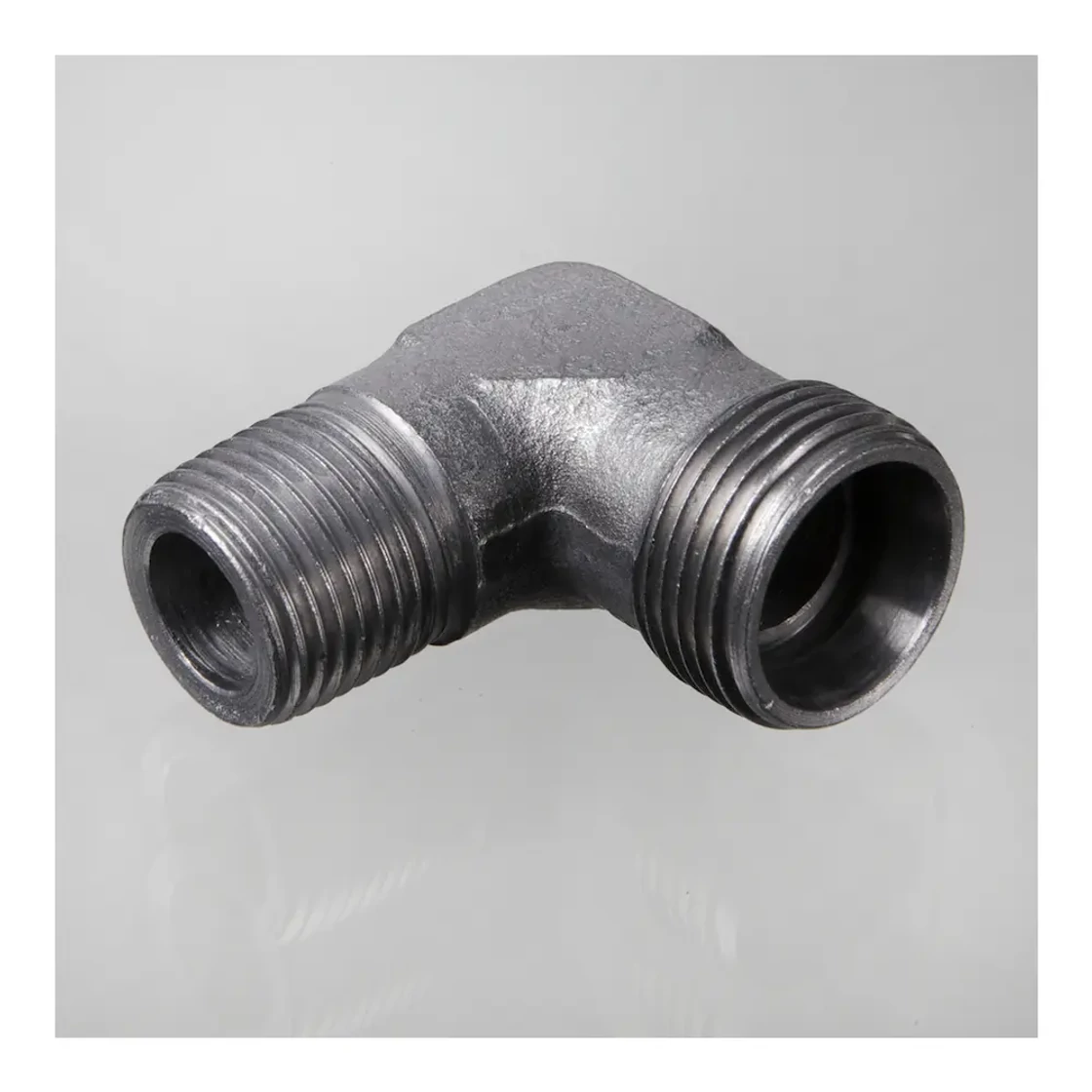

Tube Coupling - WE 10-LM
6.2931 € + VAT
Qty:pcs
Add to Cart

Tube Coupling - WE 10-LM

6.2931 € + VAT
Qty:pcs
Add to Cart
Material Steel
Connection 1 Metric tapered male thread
Connection 2 Metric male thread
Connection G1 (mm) M 14 x 1.5 K
Connection G2 (mm) M16x1,5
Connector sub-type Metrikus menet - könnyű kivitel (WE-L/M)
Connector type Könyök becsavarható - WE

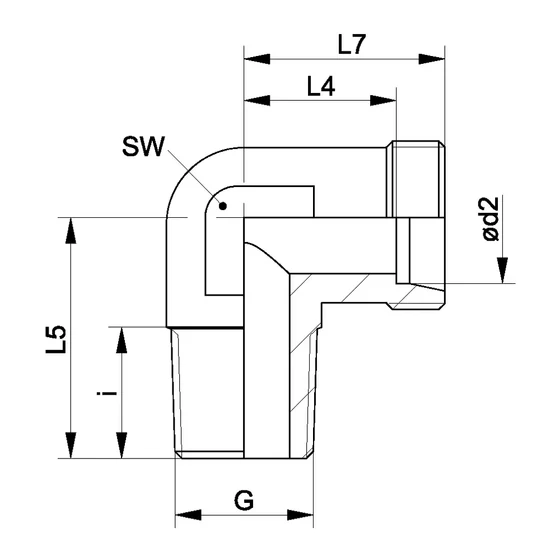

Ø d2 (mm) 10
Surface Galvanic coating
i (mm) 11.5
Design L
L4 (mm) 15
L5 (mm) 15
L7 (mm) 22
SW (mm) 14
Standard DIN 2353/ISO 8434-1, DIN 3852-1
Structural form Screw-in Elbow Fitting - WE
Extent Swivel nut, without cutting ring
Sealing 1 Thread-sealing
Sealing 2 24° internal cone
Operating pressure (bar) 315
Manufacturer article number: WMNW08HL
Model: HQCWE10LM140
Availability: 12 pcs in stock
Manufacturer: Nem besorolt
