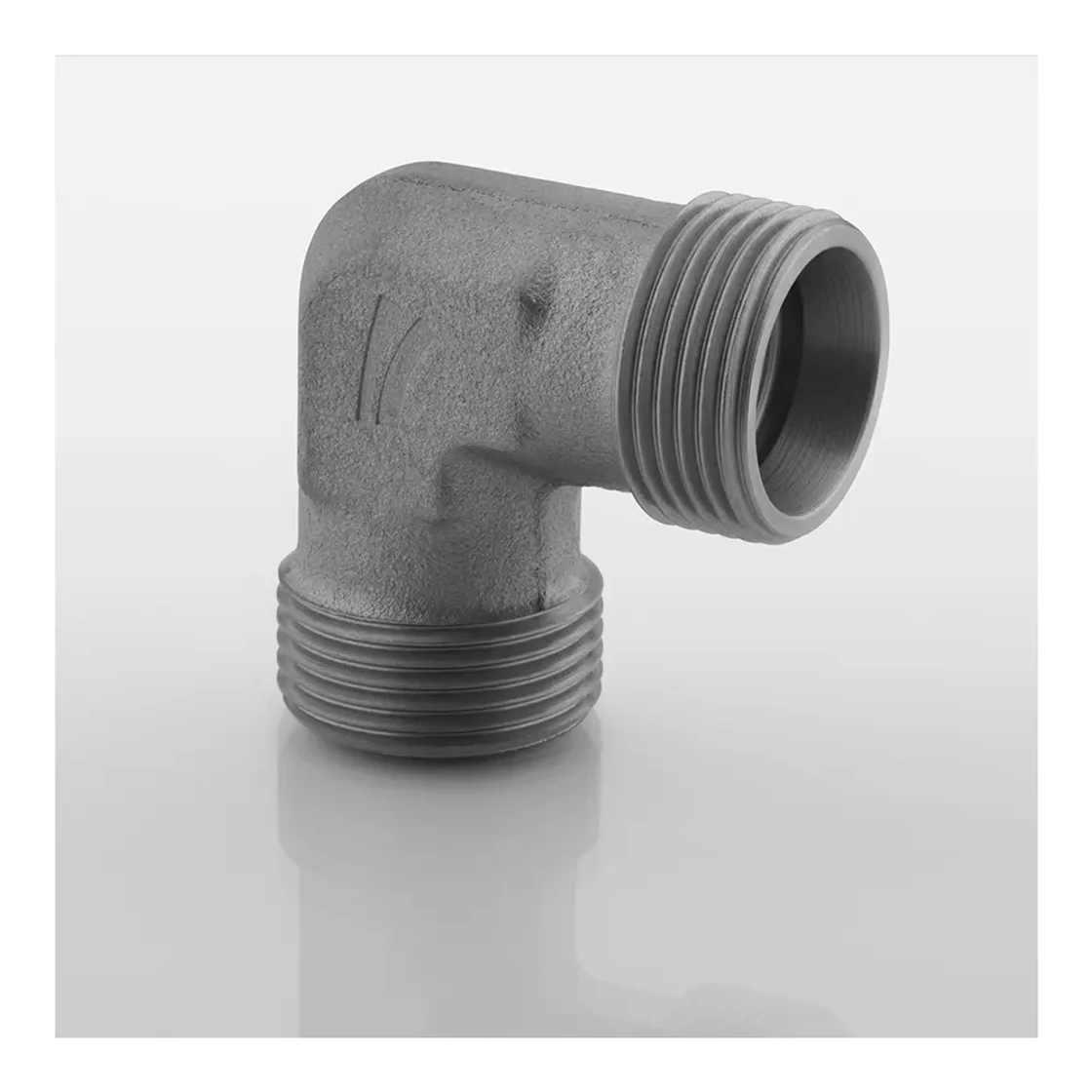

Tube Coupling - W 04-LL
5.0090 € + VAT
Qty:pcs
Add to Cart

Tube Coupling - W 04-LL

5.0090 € + VAT
Qty:pcs
Add to Cart
Material Steel
Connection 1 Metric male thread
Connection 2 Metric male thread
Connection G1 - G2 (mm) M8x1
Connector sub-type Metrikus menet - extra könnyű kivitel (W-LL)
Connector type Könyök idom - W
Ø d2 (mm) 4
Surface Galvanic coating
Design LL

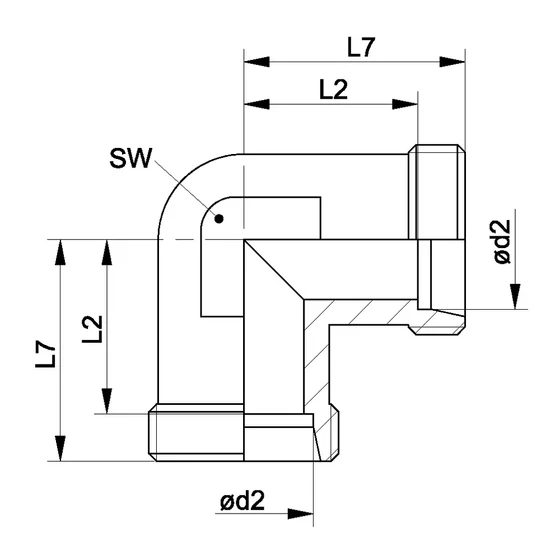

L2 (mm) 11
L7 (mm) 15
SW (mm) 9
Standard DIN 2353/ISO 8434-1
Structural form Elbow Fitting - W
Extent Nut, without cutting ring
Sealing 1 24° internal cone
Sealing 2 24° internal cone
Operating pressure (bar) 100
Manufacturer article number: 1AX099LL04
Model: HQCWW04LL0
Availability: 46 pcs in stock
Manufacturer: Nem besorolt
