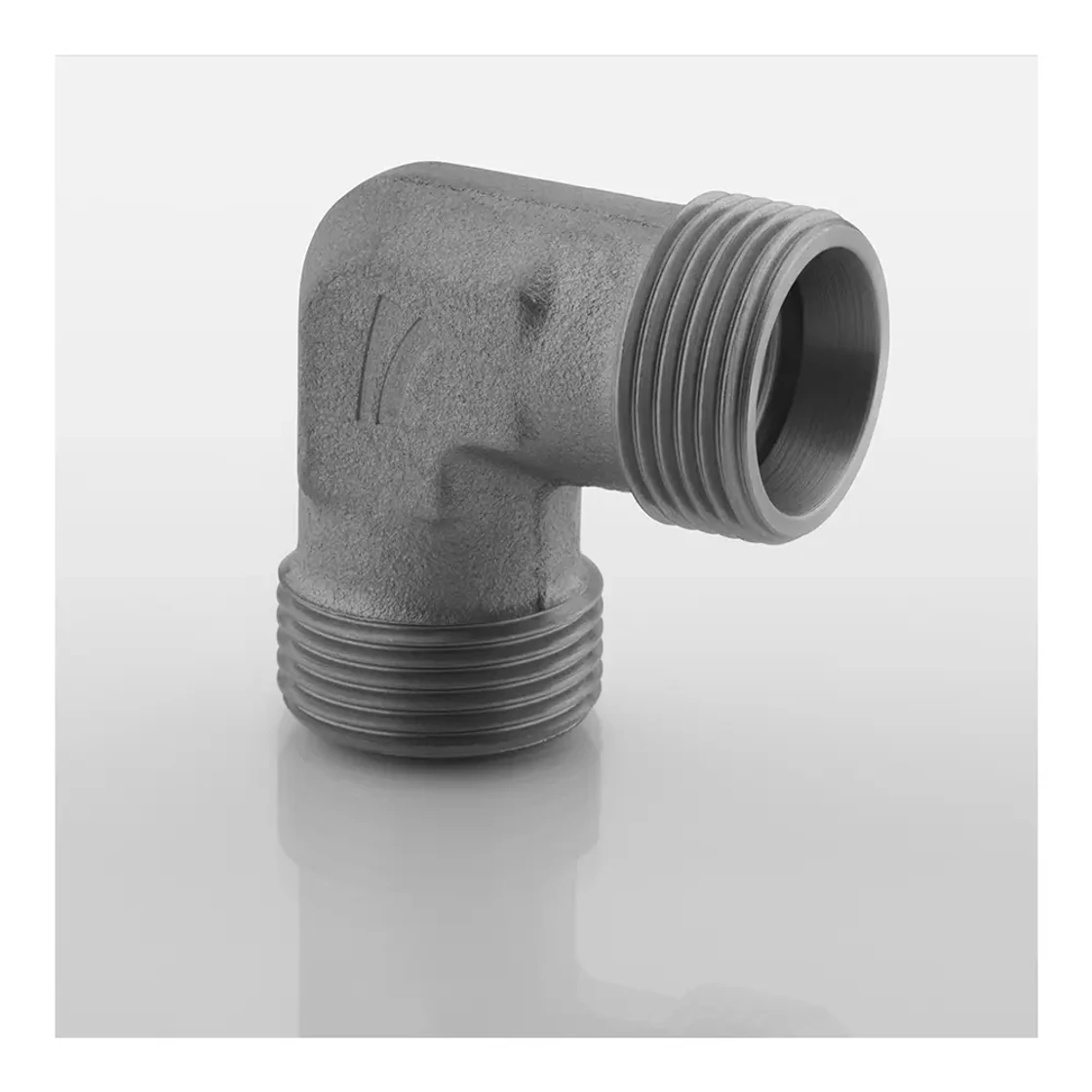

Tube Coupling - W 08-L
4.5081 € + VAT
Qty:pcs
Add to Cart

Tube Coupling - W 08-L

4.5081 € + VAT
Qty:pcs
Add to Cart
Material Steel
Connection 1 Metric external thread
Connection 2 Metric external thread

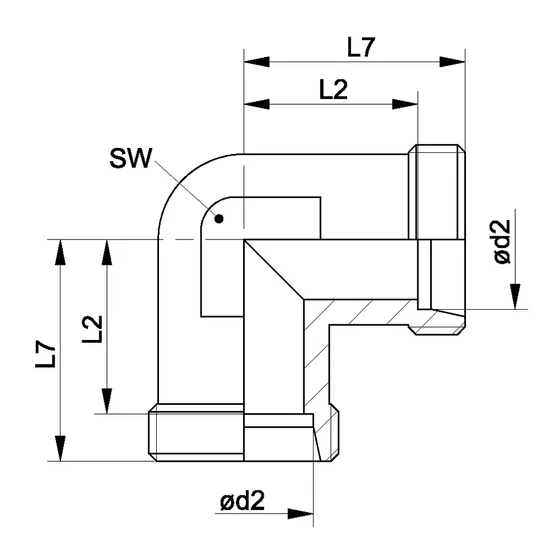

Connection G1 - G2 (mm) M14x1,5
Connector sub-type Metrikus menet - könnyű kivitel (W-L)
Connector type Könyök idom - W
Ø d2 (mm) 8
Surface Galvanic coating
Design L
L2 (mm) 14
L7 (mm) 21
SW (mm) 12
Standard DIN 2353/ISO 8434-1
Structural form Elbow Fitting - W
Extent Nut, without cutting ring
Sealing 1 24° internal cone
Sealing 2 24° internal cone
Operating pressure (bar) 315
Manufacturer article number: WNW06HL
Model: HQCWW08L00
Availability: 17 pcs in stock
Manufacturer: Nem besorolt
