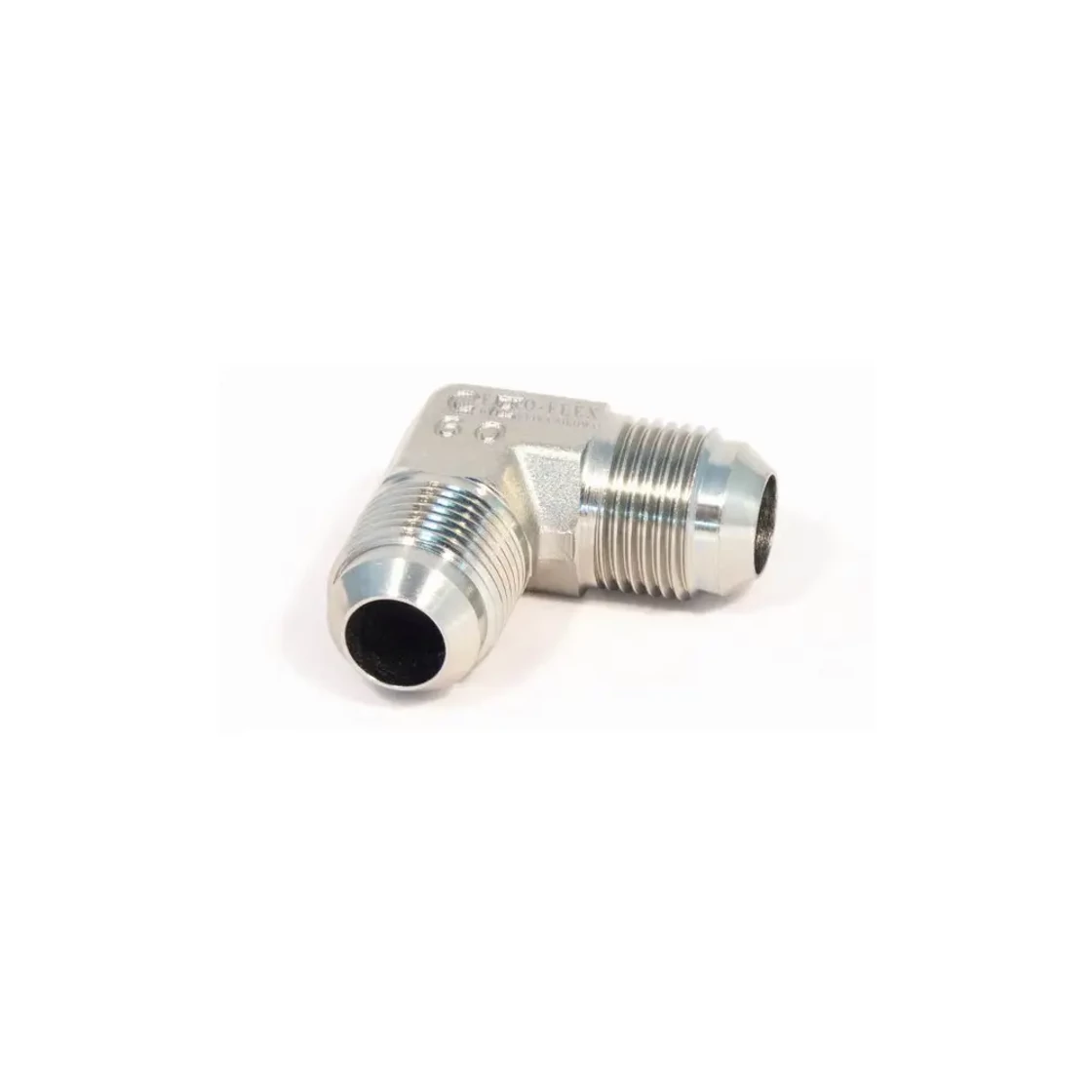

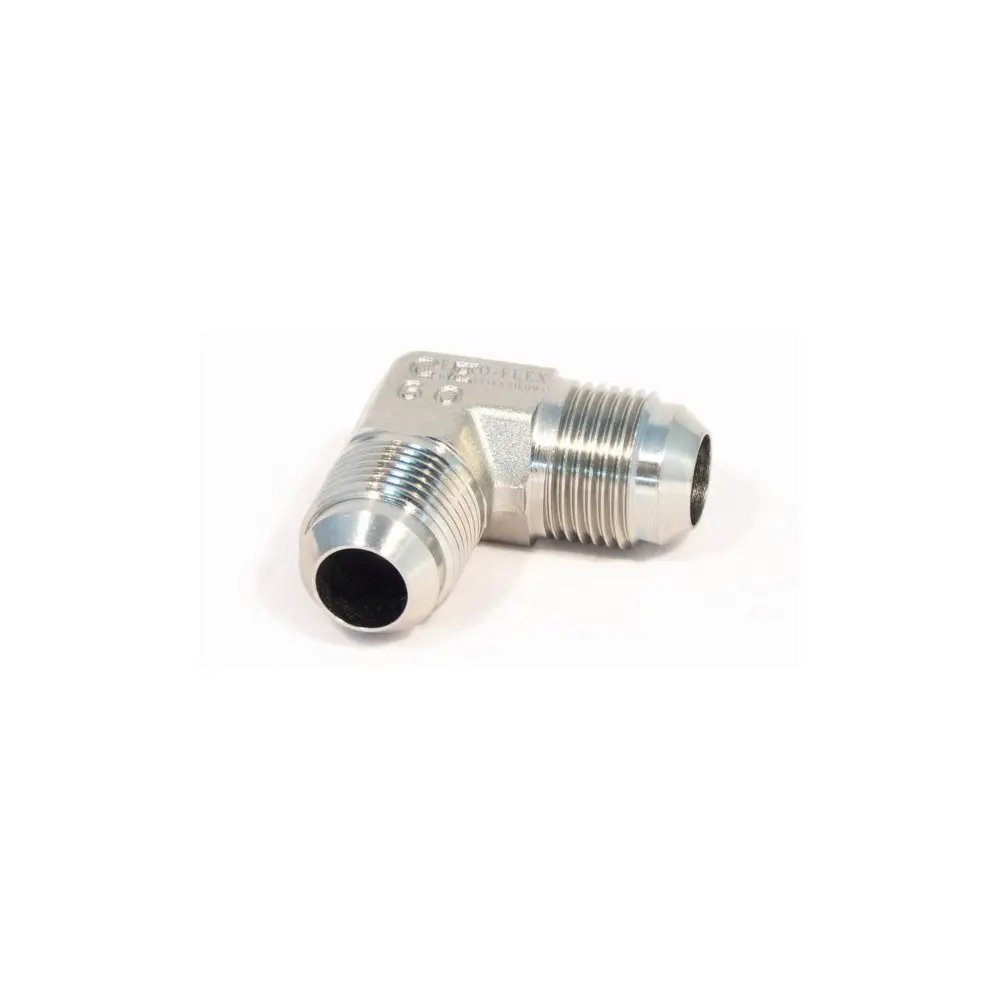

Tube Coupling - (W-UNF) - JIC 1.1/16
4.5081 € + VAT
Qty:pcs
Add to Cart

Tube Coupling - (W-UNF) - JIC 1.1/16"-12

4.5081 € + VAT
Qty:pcs
Add to Cart
Material Steel

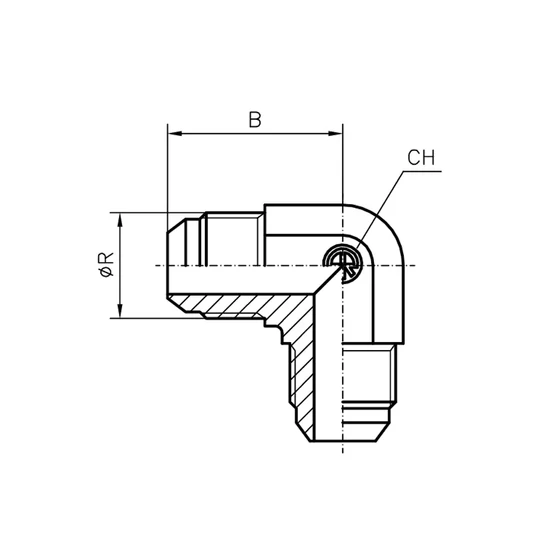

B (mm) 42.2
CH (mm) 27
Connection 1 UNF external thread
Connection 2 UNF external thread
Connection ØR (col) 1” 1/16
Connector sub-type UNF menet - JIC kivitel (W-JIC)
Connector type Könyök idom - W
Pipe size (mm) 20
Pipe size (inch) 3/4
Surface Galvanic coating
Structural form Elbow Fitting - W
Sealing 1 37° external cone
Sealing 2 37° external cone
Operating pressure (bar) 350
Manufacturer article number: ST.01.00.12
Model: HQCJWW120000
Availability: 1 pcs in stock
Manufacturer: Nem besorolt
