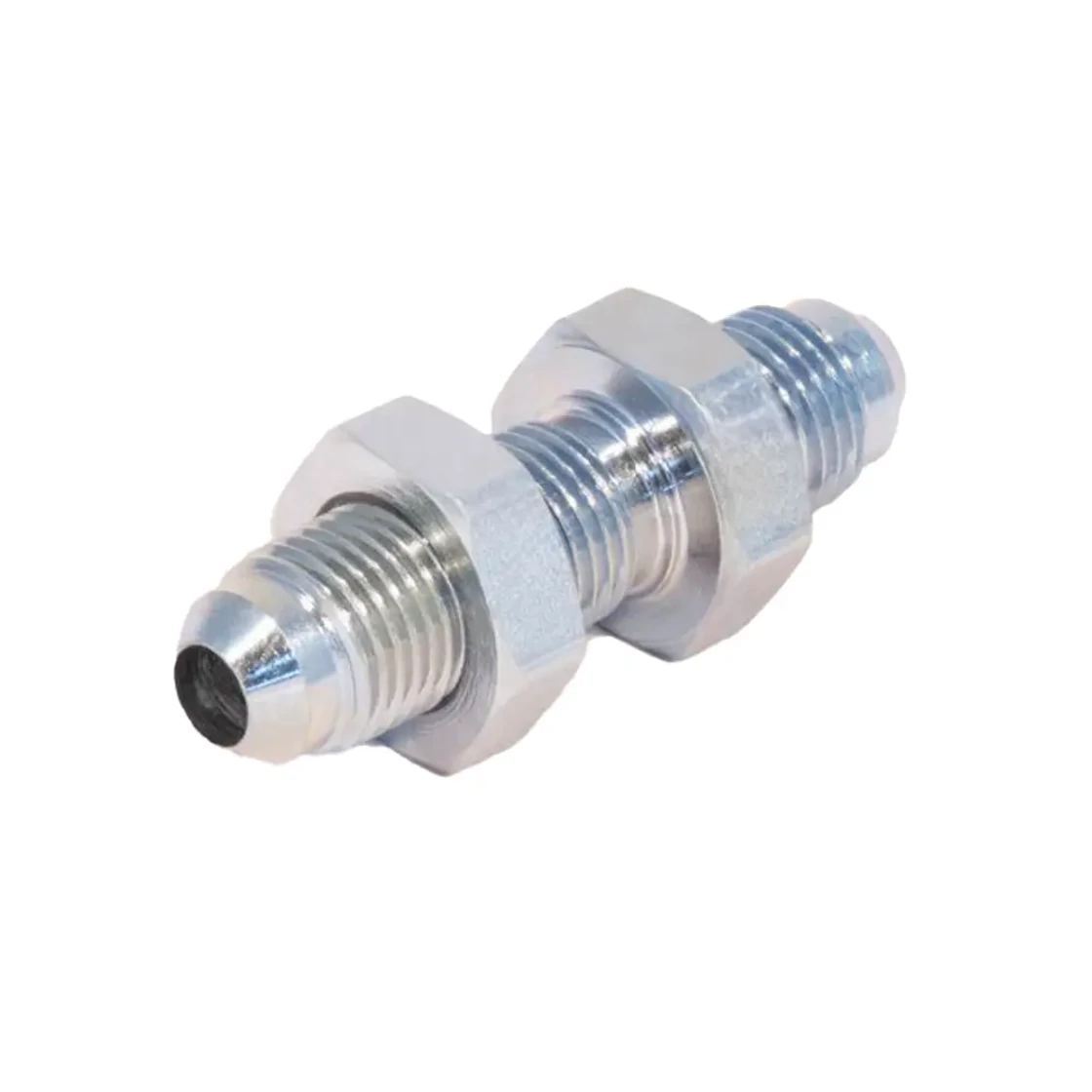

Tube Coupling - (SV-UNF) - JIC 1/2
1.7532 € + VAT
Qty:pcs
Add to Cart

Tube Coupling - (SV-UNF) - JIC 1/2"-20

1.7532 € + VAT
Qty:pcs
Add to Cart

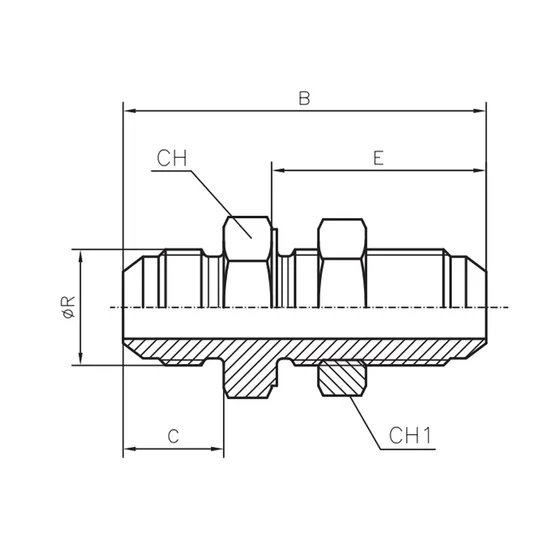

Material Steel
B (mm) 52.6
C (mm) 14
CH (mm) 19
CH1 (mm) 19
Connection 1 UNF male thread
Connection 2 UNF male thread
Connection ØR (col) 1/2
Connector sub-type UNF menet - JIC kivitel (SV-JIC)
Connector type Falazatátvezető - SV
Pipe size (mm) 8
Pipe size (inch) 5/16
E (mm) 31.5
Surface Galvanic coating
Structural form Bulkhead Fitting - SV
Sealing 1 37° external cone
Sealing 2 37° external cone
Operating pressure (bar) 350
Manufacturer article number: BA.53.00.05
Model: HQCJSV0500
Availability: 2 pcs in stock
Manufacturer: Nem besorolt
