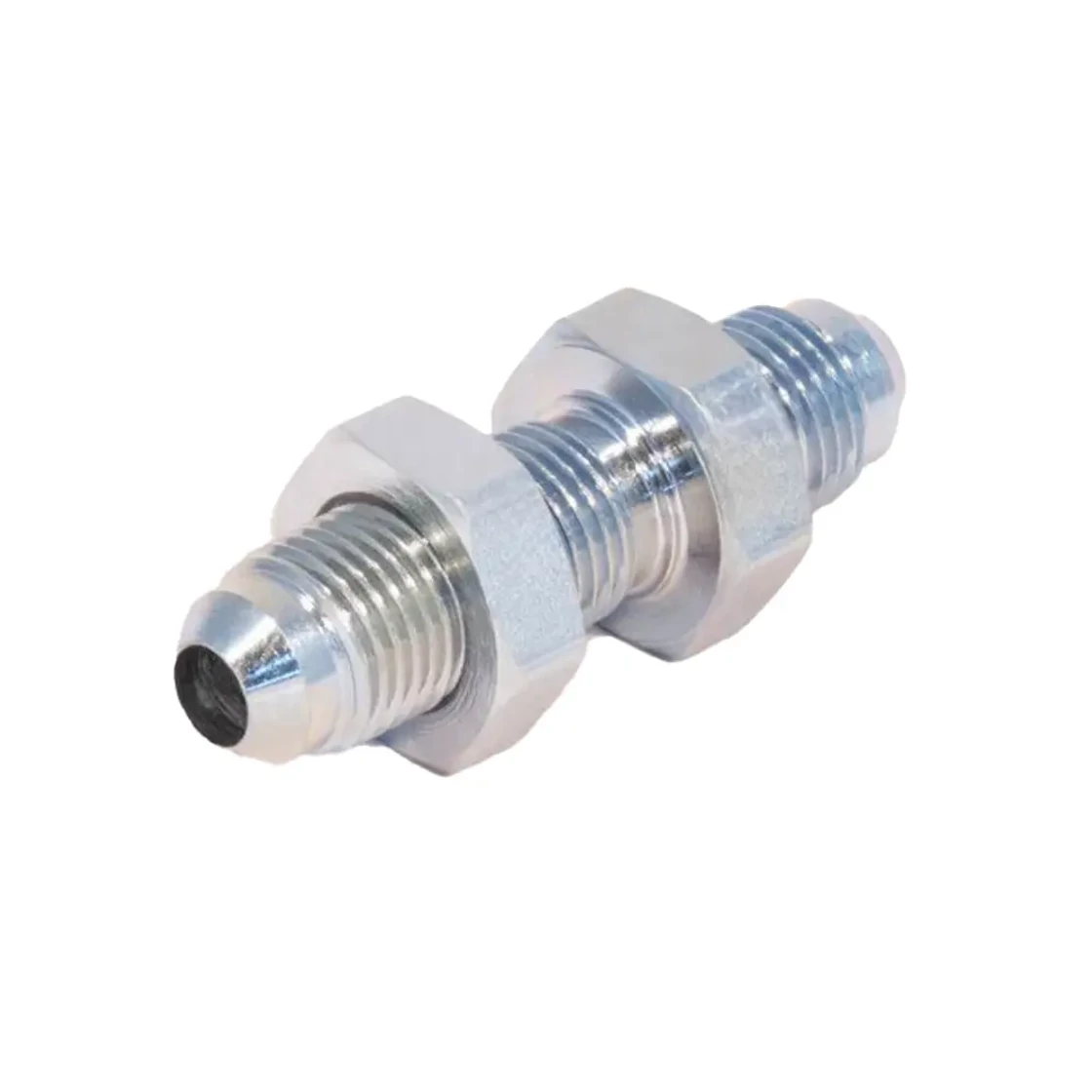

Tube Coupling - (SV-UNF) - JIC 9/16
2.7550 € + VAT
Qty:pcs
Add to Cart

Tube Coupling - (SV-UNF) - JIC 9/16"-18

2.7550 € + VAT
Qty:pcs
Add to Cart

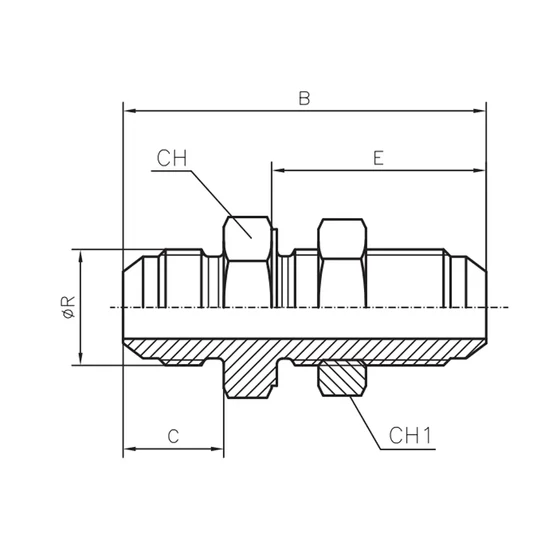

Material Steel
B (mm) 55.4
C (mm) 14.1
CH (mm) 22
CH1 (mm) 22
Connection 1 UNF male thread
Connection 2 UNF male thread
Connection ØR (col) 9/16
Connector sub-type UNF menet - JIC kivitel (SV-JIC)
Connector type Falazatátvezető - SV
Pipe size (mm) 10
Pipe size (inch) 3/8
E (mm) 33.5
Surface Galvanic coating
Structural form Bulkhead Fitting - SV
Sealing 1 37° external cone
Sealing 2 37° external cone
Operating pressure (bar) 350
Manufacturer article number: BA.53.00.06
Model: HQCJSV0600
Availability: 5 pcs in stock
Manufacturer: Nem besorolt
