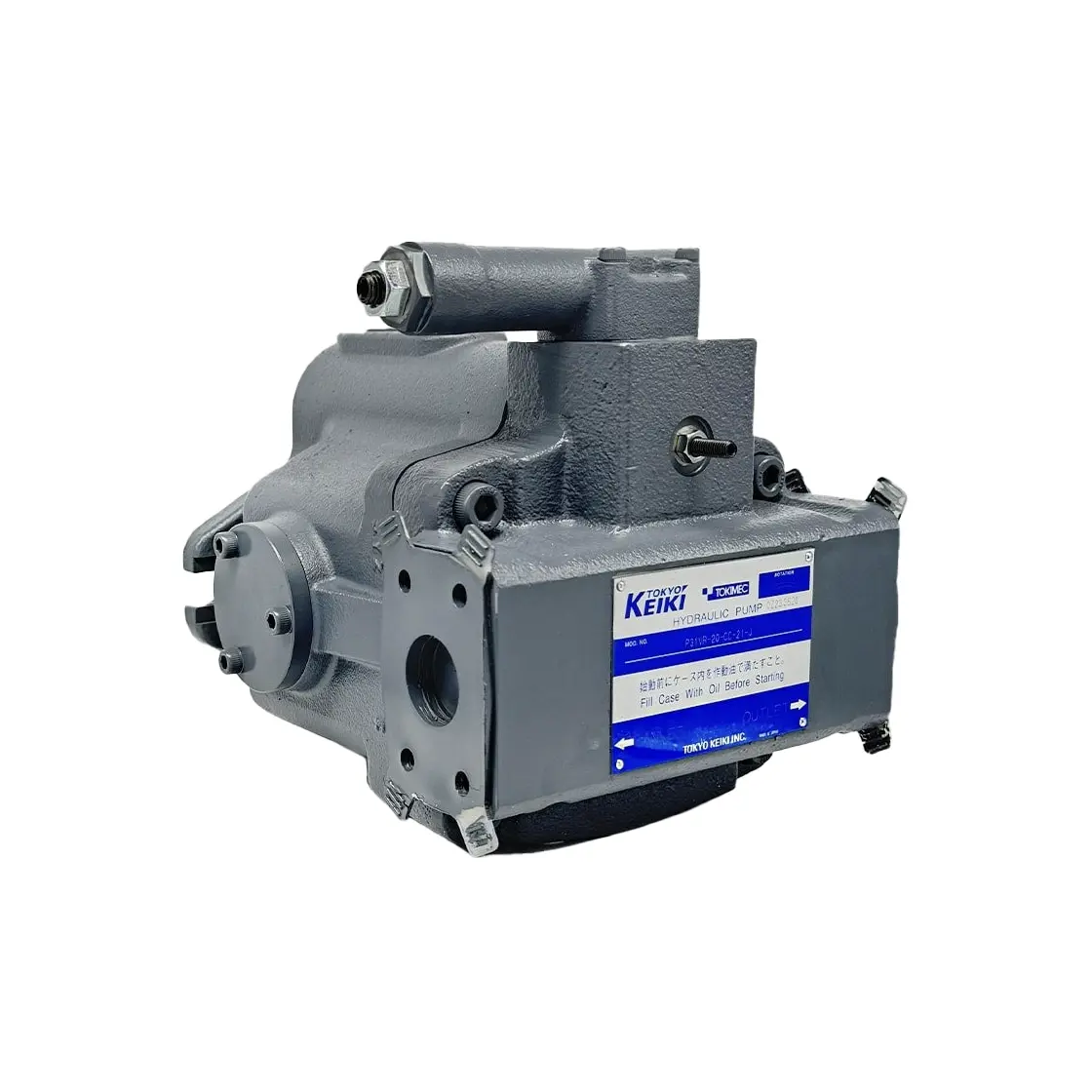

Axial pump - F11-P31VFR-20-CC-21-S266J

Axial pump - F11-P31VFR-20-CC-21-S266J

Subtype Power-regulated
Suction connection information 1.1/4" - 3000psi
Connections SAE flansni metrikus csavarokkal - SFL32 - SFL32 (M10)
Rotational speed at working pressure (min-max) 600-1800
Direction of rotation jobb
Mounting flange standard talpas rögzítésű
Pressure Connection SFL32 (M10)
Pressure Connection Information 1.1/4" - 3000psi
Key [mm] 6,35 × 6,35 × 31,8
Regulation CC - nyomáskompenzálás 15-210bar + maximális szállítás
Displacement (cm³/rev) 31
Suction connection SFL32 (M10)
Shaft [mm] SAE B - Ø22,2
Type Egy körös
Seal víz-glikol (HFC) kompatibilis
Maximum pressure 210 bar
Type Single-circuit
Model: HPATP31VFR20CC21
Availability: Available to order
Manufacturer: Tokyo Keiki aka Tokimec
