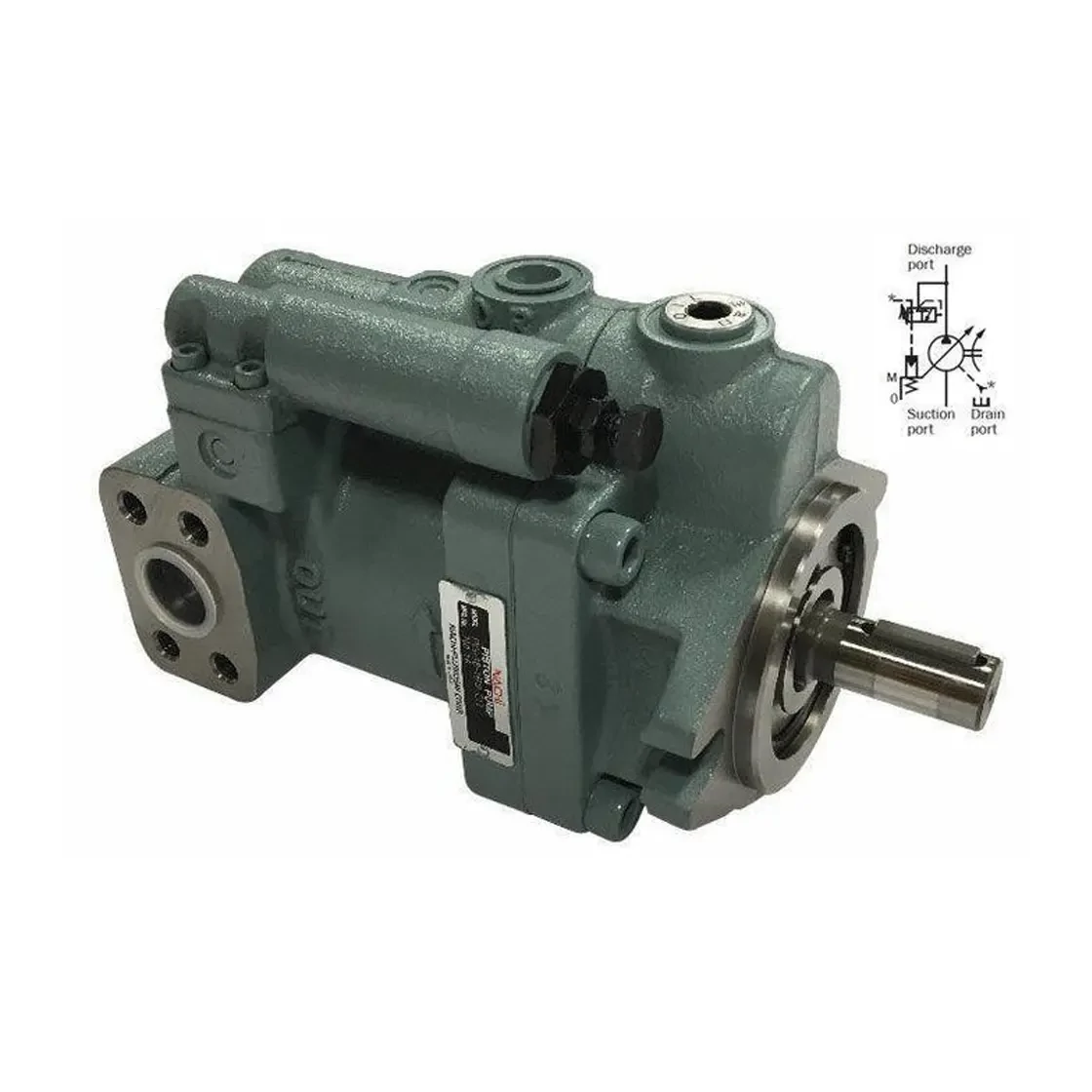

Piston Pump PVS-1B-16N1-E13

Piston Pump PVS-1B-16N1-E13

Subtype Power-regulated
Suction connection information 3/4" - 3000psi
Connections SAE flansni metrikus csavarokkal - SFL19 - SFL19 (M10)
Rotational speed at working pressure (min-max) 1000-1800
Direction of rotation jobb
Mounting flange + screw mounting 82,55/106,4×2 (M10)
Mounting flange standard ISO3019-1-82-2 - SAE A
Maximum speed without load 500-2000
Maximum peak pressure 250
Pressure Connection SFL19 (M10)
Pressure Connection Information 3/4" - 3000psi
Key [mm] 4,75×4,75×25,4
Regulation nyomáskompenzálás - 20-70 bar
Displacement (cm³/rev) 16
Suction connection SFL19 (M10)
Shaft [mm] SAE AH - Ø19,05
Type Egy körös
Seal NBR
Maximum pressure 210 bar
Type Single-circuit
Manufacturer article number: PVS-1B-16N1-E13
Model: HPATPVS1B16N1
Availability: 2 pcs in stock
Manufacturer: Nachi
