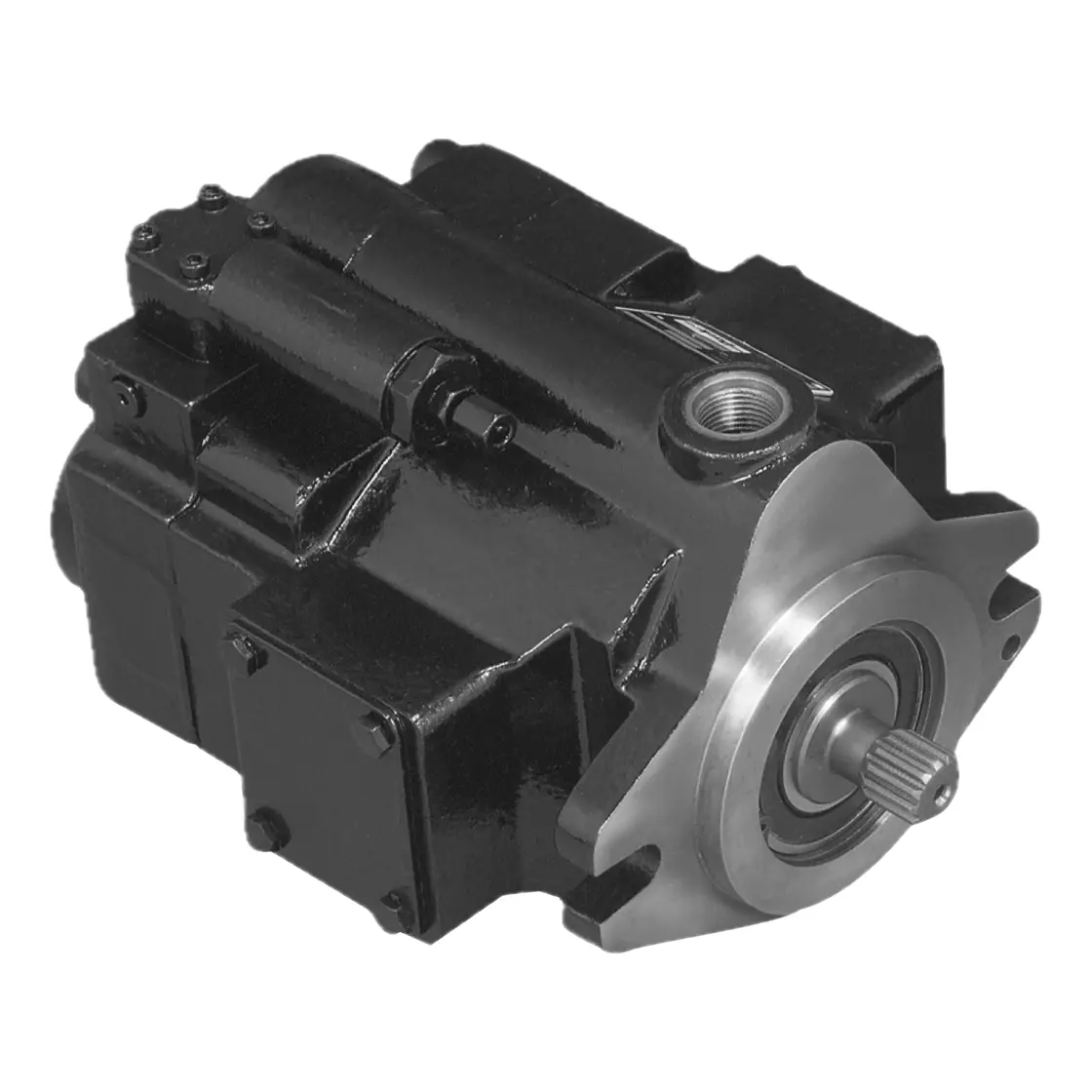

Axial pump - PVP4130B2R11

Axial pump - PVP4130B2R11

Subtype Power-regulated
Suction connection information 1.1/2" - 3000psi
Connections SAE flansni UNC csavarokkal - SFL38 (1/2"-13) - SFL25 (3/8"-16)
Rotational speed at working pressure (min-max) 600-2800
Direction of rotation jobb
Mounting flange + screw mounting 101,6/146×2 (M12)
Mounting flange standard ISO3019-1-101-2 - SAE B
Maximum peak pressure 310
Pressure Connection SFL25 (3/8"-16)
Pressure Connection Information 1" - 3000psi
Key [mm] nincs
Regulation nyomáskompenzálás - 17-207 bar
Displacement (cm³/rev) 41
Suction connection SFL38 (1/2"-13)
Shaft [mm] SAE B bordás - 16/32 DP 13T
Type Egy körös
Seal NBR
Maximum pressure 248 bar
Type Single-circuit
Manufacturer article number: PVP4130B2R11
Model: HPATPVP4130B2R11
Availability: Available to order
Manufacturer:
Parker
