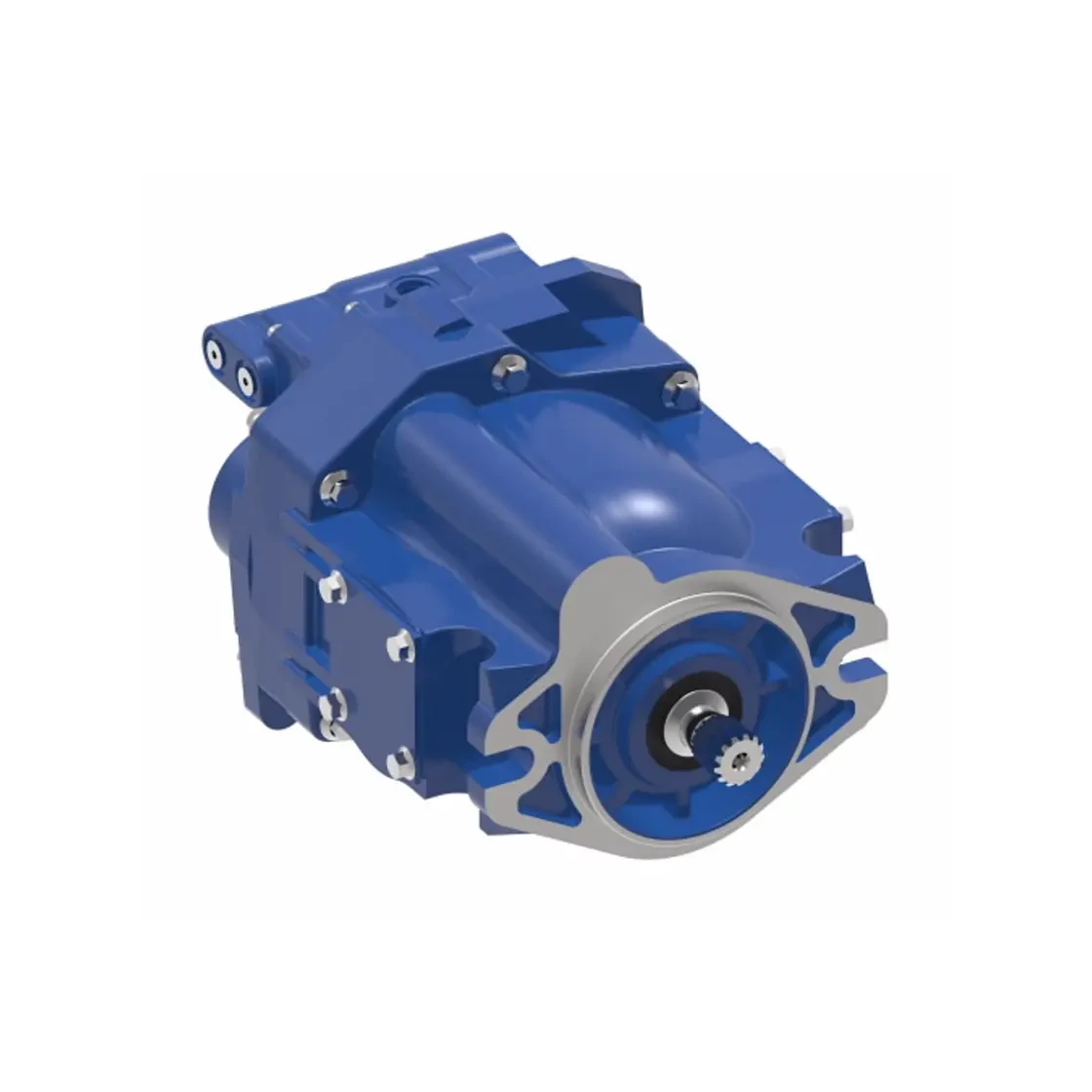

Axial pump - PVQ20-B2R-SS1S-21-CG-30

Axial pump - PVQ20-B2R-SS1S-21-CG-30

Subtype Power-regulated
Connections 1.5/8-12 UN-2B
Rotational speed at working pressure (min-max) 1000-1800
Direction of rotation jobb
Mounting flange + screw mounting 101,6/146×2 (M12)
Mounting flange standard ISO3019-1-101-2 - SAE B
Pressure Connection 1.5/8-12 UN-2B
Key [mm] 6,35 × 6,35 × 31,8
Regulation nyomáskompenzálás - 20-210 bar + távoli állítás
Displacement (cm³/rev) 21.1
Suction connection 1.5/8-12 UN-2B
Shaft [mm] SAE B - Ø22,2
Type Egy körös
Seal NBR
Maximum pressure 210 bar
Type Single-circuit
Manufacturer article number: 02-348887
Model: HPATPVQ2B2RSS1S
Availability: Available to order
Manufacturer:
Eaton
Eaton
