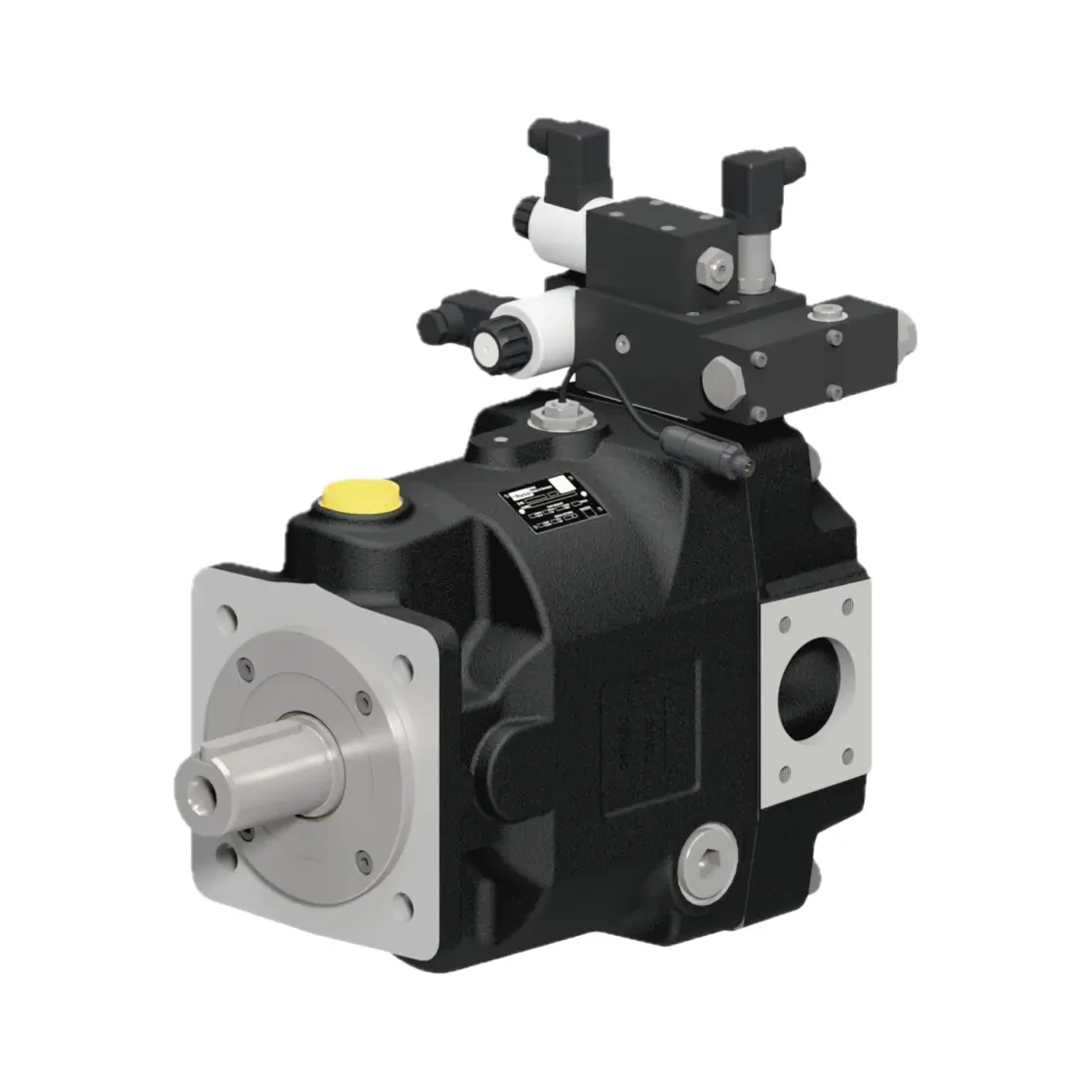

Axial pump - PV040R1K1T1NHCK

Axial pump - PV040R1K1T1NHCK

Subtype Power-regulated
Peak pressure 420
Suction connection information 1.1/2" - 3000psi
Connections SAE flansni metrikus csavarokkal - SFL38 - SFS25 (M12)
Direction of rotation jobb
Mounting flange + screw mounting 125/160×4 (M12)
Mounting flange standard ISO 3019-2-125-B4
Maximum speed without load 50-2800
Pressure Connection SFS25 (M12)
Pressure Connection Information 1" - 6000psi
Key [mm] 10 × 8 × 56 - DIN6885
Regulation HCK - teljesítmény szabályzás + loadsense (15kW - 97Nm - prop.szelep PVACRE...K35)
Displacement (cm³/rev) 40
Suction connection SFL38 (M12)
Shaft [mm] ø32 k6
Type Egy körös
Seal NBR + FKM szimering
Maximum pressure 350 bar
Type Single-circuit
Manufacturer article number: PV040R1K1T1NHCK4747
Model: HPATPV040R1K1T1NHCK
Availability: Available to order
Manufacturer:
Parker
Parker
