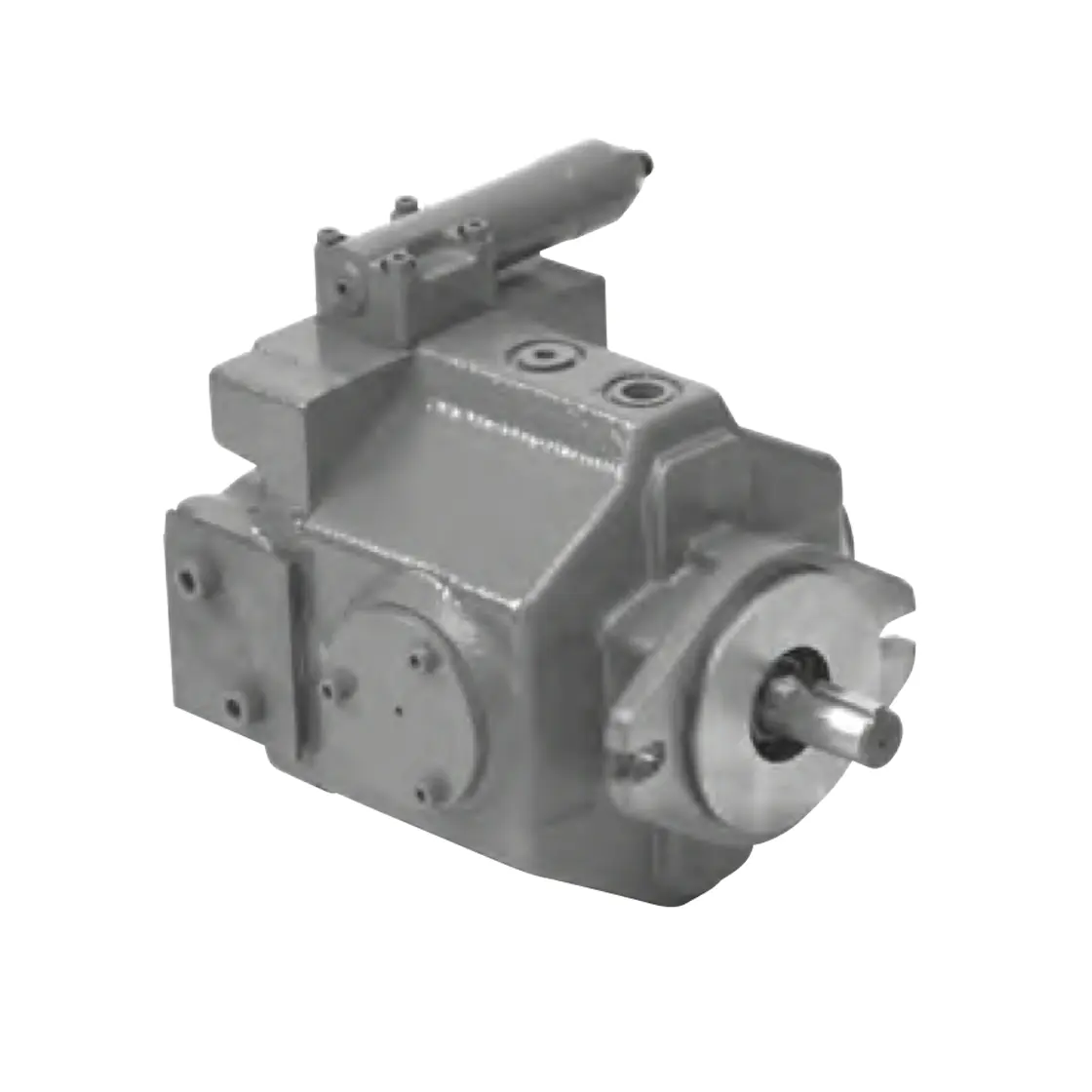

Axial pump - P16V-RSG-11-CMC-10-S121-J

Axial pump - P16V-RSG-11-CMC-10-S121-J

Subtype Power-regulated
Suction connection information 3/4" - 3000psi
Connections SAE flansni metrikus csavarokkal - SFL19 - SFL19 (M10)
Rotational speed at working pressure (min-max) 600-1800
Direction of rotation jobb
Mounting flange + screw mounting 82,55/106,4×2 (M10)
Mounting flange standard ISO3019-1-82-2 - SAE A
Pressure Connection SFL19 (M10)
Pressure Connection Information 3/4" - 3000psi
Key [mm] 4,75×4,75×25,4
Regulation CMC - nyomáskompenzálás - 15-105bar + maximális szállítás
Displacement (cm³/rev) 16
Suction connection SFL19 (M10)
Shaft [mm] SAE AH - Ø19,05
Type Egy körös
Seal NBR
Maximum pressure 210 bar
Type Single-circuit
Manufacturer article number: P16V-RSG-11-CMC-10-S121-J
Model: HPATP16VRSG11CMC
Availability: 1 pcs in stock
Manufacturer: Tokyo Keiki aka Tokimec
